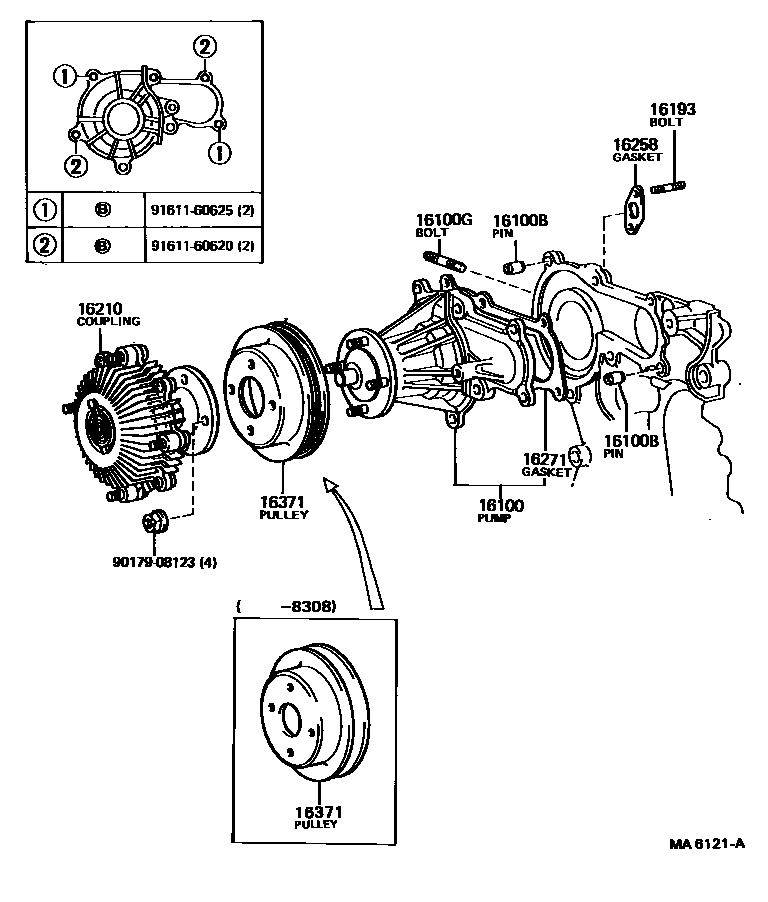

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

16100PUMP ASSY, ENGINE WATER

main16100-28020i3T..TX62198107-198504

main16100-39236i18R..RX62198107-198208

sub16100-39237

main16100-39315i21R#..RX60198009-198204

sub16100-39316

main16100-39316i21R#..RX60198204-198407

sub16100-39317

main16100-39345i21R..RX60198408-198504

sub16100-39346

main16100-49585i5ME..MX62198009-198201

sub16100-49595

main16100-49595i5ME..MX62198201-198308

sub16100-49665

main16100-49705i5ME..MX6#198308-198504

sub16100-49706

main16100-59049iL..LX60198009-198105

sub16100-59125

main16100-59125iL..LX60198105-198108

sub16100-59215

main16100-59126iL..LX60198108-198210

sub16100-59127

main16100-59127iL..LX60198210-198407

sub16100-59128

main16100-79015i1GE..GX6#198208-198504

16100BPIN, RING(FOR WATER PUMP SET)

main16185-70010i1GE..GX6#198208-198504

16100GBOLT, STUD(FOR WATER PUMP SET)

main16193-38030i21R#..RX60198009-198504

main16194-70010i1GE..GX6#198208-198504

main90116-08111i5ME..MX6#198009-198504

L=57,S=13&13

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010i1GE..GX6#198208-198504

main16193-33030i18R..RX62198009-198308

L=20.5,S=5.5&9

main16193-41031i5ME..MX6#198009-198504

L=42,S=16&20

main16193-45100i5ME..MX6#198308-198504

16210COUPLING ASSY, FLUID

main16210-28020i3T..TX62198107-198504

main16210-34102i18R..RX62198107-198208

main16210-38050i21R#..RX60198009-198407

main16210-38060i21R..RX60..GEN,ME,SA198208-198504

main16210-41160i5ME..MX62198009-198201

sub16210-45100

main16210-45100i5ME..MX6#198201-198504

main16210-54030iL..LX60198009-198407

main16210-70020i1GE..GX6#198208-198408

sub16210-70021

16258GASKET(FOR HEATER RETURN)

main16258-15011i1GE..GX6#198208-198504

16271GASKET, WATER PUMP

main16124-70010i1GE..GX6#198208-198504

sub16124-70011

main16129-25011i3T..TX62198107-198201

sub16129-25012

main16129-25012i3T..TX62198201-198504

sub16129-25013

main16271-33010i18R..RX62198107-198208

sub16271-33011

main16271-41011i5ME..MX6#198009-198504

sub16271-43010

main16271-54011iL..LX60198009-198105

sub16271-54012

main16271-54012iL..LX60198105-198407

sub16271-54013

16371PULLEY, FAN

main16173-28010i3T..TX62198107-198504

main16173-34100i18R..RX62198107-198208

main16173-35020i21R..RX60198408-198504

main16173-38011i21R#..RX60198009-198407

main16173-43040i5ME..MX6#198308-198504

main16173-45101i5ME..MX62198009-198308

main16371-54010iL..LX60198009-198407

main16371-70010i1GE..GX6#198208-198308

main16371-70020i1GE..GX6#198308-198504

9017908123

main90179-08123

9161160620

main91611-60620

9161160625

main91611-60625

11 parts on this diagram · 7 diagrams in section
