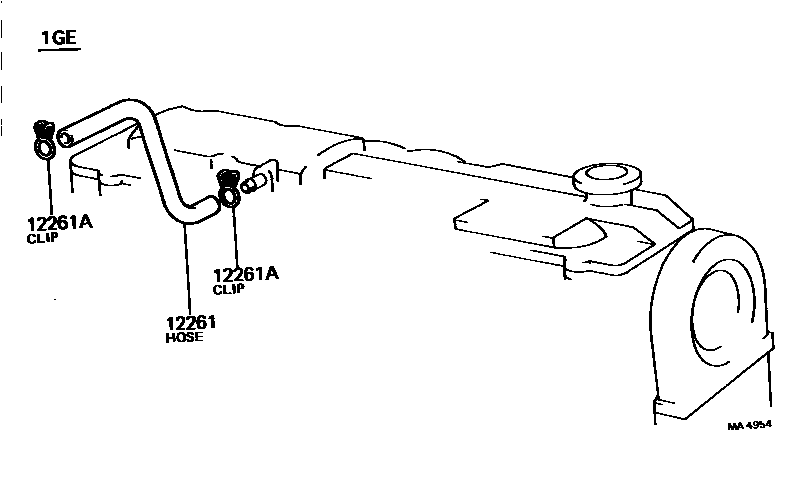

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12261HOSE, VENTILATION

main12261-41080i5ME..MX62198009-198308

main12261-41090i5ME..MX6#198308-198504

main12261-54010iL..LX60198009-198407

main12261-70010i1GE..GX6#198208-198504

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14082×2i1GE..GX6#198208-198504

sub90467-14001

main90467-15120×2iL..LX60198009-198407

main90467-20002×2i5ME..MX6#198009-198504

2 parts on this diagram · 6 diagrams in section
