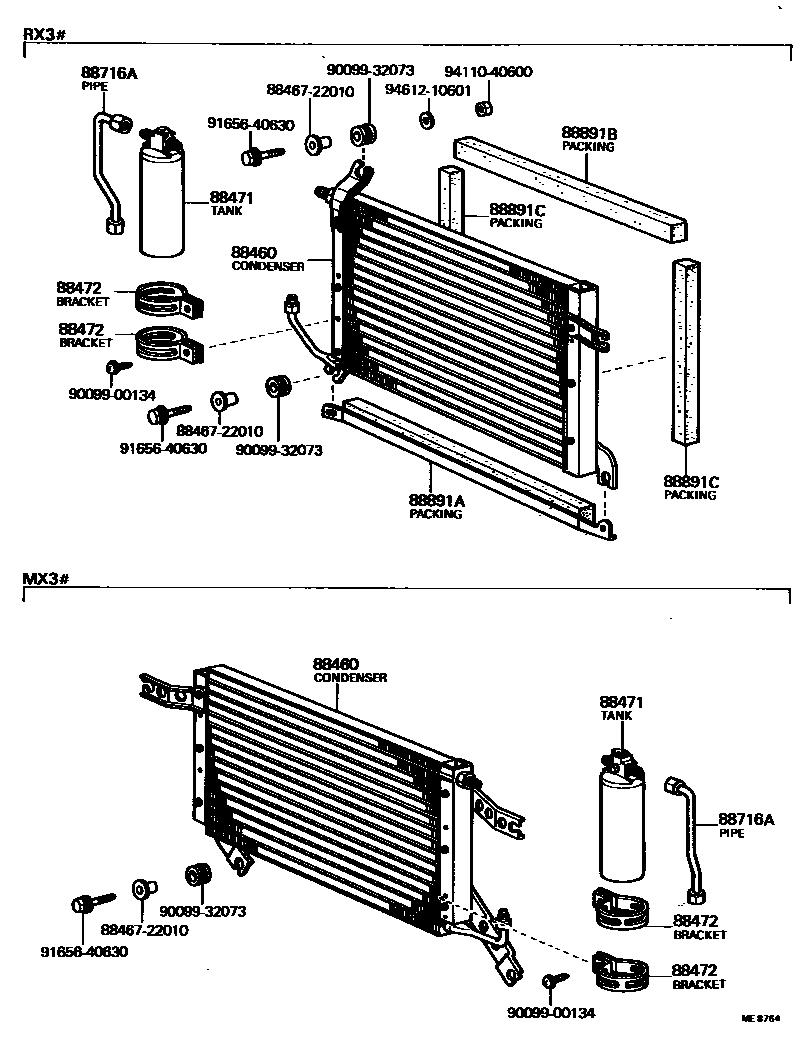

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88460CONDENSER ASSY, COOLER

main88460-22090iMX3#197612-198008

sub88460-22130

main88460-22100iRX3#197612-198008

88471TANK, RECEIVER AIR CONDITIONER

main88470-20050iMX3#,RX3#..ARL,EUR,GEN197707-197806

sub88470-12021

main88471-22010iRX3#197812-198008

main88471-30250iMX3#,RX3#..ARL,EUR,GEN197612-197707

sub88470-20050

main88471-30270iMX3#,RX3#197806-198008

sub88470-20070

88472BRACKET, RECEIVER TANK, NO.1

main88473-22010iMX3#,RX3#197612-198008

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22230iMX3#197612-198008

main88716-22260iRX3#197612-198008

88891APACKING A (FOR COOLER)

main88688-22050iRX3#197612-198008

88891BPACKING B (FOR COOLER)

main88578-22060iRX3#197612-198008

88891CPACKING C (FOR COOLER)

main88578-22070iRX3#197612-198008

sub88578-87006

8846722010CUSHION, COOLER CONDENSER, NO.1

main88467-22010

9009900134

main90099-00134

9009932073

main90099-32073

9165640630

main91656-40630

9411040600

main94110-40600

9461210601

main94612-10601

13 parts on this diagram · 3 diagrams in section
