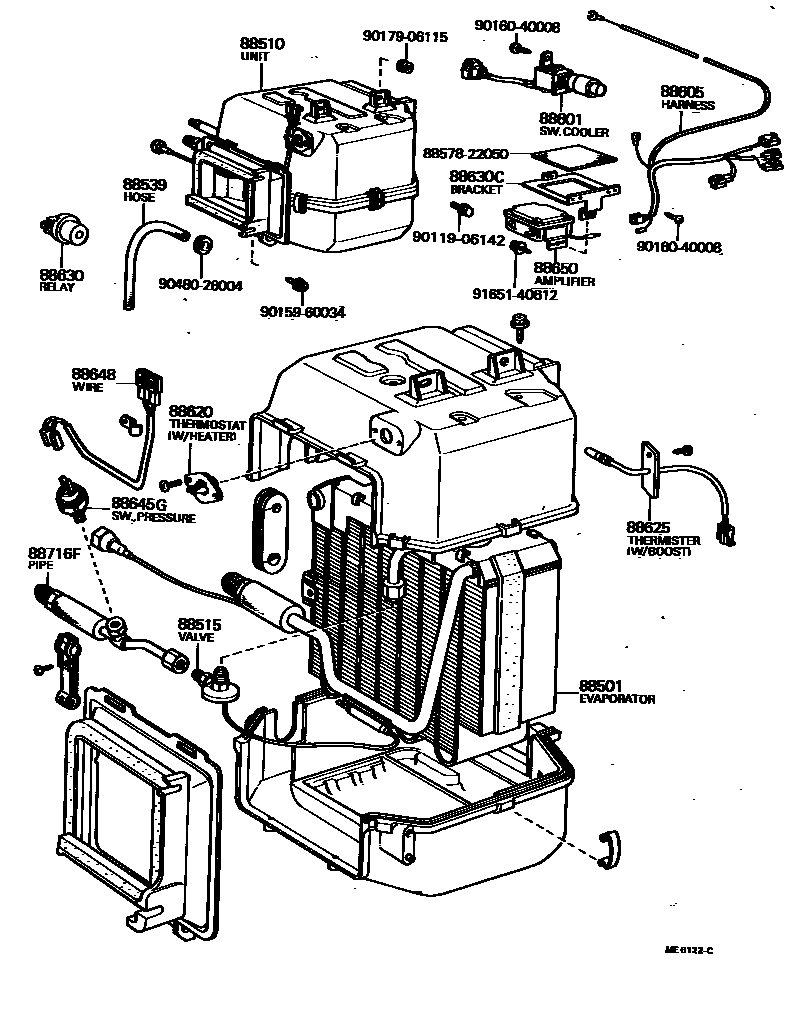

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-22070iMX3#,RX3#..RHD197612-197903

sub88501-22110

main88501-22080iRX3#..LHD197612-197903

sub88501-22120

main88501-22090iRX3#..RHD197612-198008

W/BOOST VENTILATOR

main88501-22100iRX3#..LHD197612-198008

W/BOOST VENTILATOR

main88501-22110iMX3#,RX3#..RHD197903-198008

main88501-22120iRX3#..LHD197903-198008

88510UNIT ASSY, COOLER

main88510-22070iRX3#..LHD197612-197707

sub88510-22071

main88510-22071iRX3#..LHD197707-197808

main88510-22072iRX3#..LHD197808-197903

sub88510-22160

main88510-22080iMX3#,RX3#..RHD197612-197707

sub88510-22081

main88510-22081iMX3#,RX3#..RHD197707-197808

main88510-22082iMX3#,RX3#..RHD197808-197903

sub88510-22150

main88510-22090iRX3#..LHD197612-197707

W/BOOST VENTILATOR

sub88510-22091

main88510-22091iRX3#..LHD197707-198008

W/BOOST VENTILATOR

main88510-22100iRX3#..RHD197612-197707

W/BOOST VENTILATOR

sub88510-22101

main88510-22101iRX3#..RHD197707-198008

W/BOOST VENTILATOR

main88510-22150iMX3#,RX3#..RHD197903-198008

main88510-22160iRX3#..LHD197903-198008

88515VALVE, COOLER EXPANSION

main88515-10010iRX3#..GEN197612-197707

W/BOOST VENTILATOR

sub88515-12050

main88515-12050iRX3#..GEN197707-198008

W/BOOST VENTILATOR

main88515-22030iMX3#,RX3#..ARL,EUR,GEN197612-197711

sub88515-22060

main88515-22060iMX3#,RX3#197711-198008

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22070iMX3#,RX3#..ARL,EUR,GEN197612-197710

main88539-22071iMX3#,RX3#197710-198008

88601SWITCH SUB-ASSY, COOLER CONTROL

main84660-22010iMX3#,RX3#..RHD197612-197707

sub84660-22011

main84660-22011iMX3#,RX3#..RHD197707-198008

sub88610-90A06

main84660-22020iRX3#..LHD197612-197708

sub84660-22021

main84660-22021iRX3#..LHD197708-198008

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-22170iRX3#..RHD197612-197808

W/BOOST VENTILATOR

main88605-22171iRX3#..RHD197808-198008

W/BOOST VENTILATOR

main88605-22180iRX3#..LHD197612-197808

W/BOOST VENTILATOR

main88605-22181iRX3#..LHD197808-198008

W/BOOST VENTILATOR

88620THERMOSTAT SUB-ASSY

main88620-30281iMX3#,RX3#..ARL,EUR,GEN197612-197707

88625THERMISTOR, COOLER, NO.1

main88625-20050iRX3#..GEN197612-198008

W/BOOST VENTILATOR

88630RELAY ASSY, COOLER

main90987-02001iMX3#,RX3#..ARL,EUR,GEN197712-197808

sub90999-99089

main90987-03001iMX3#,RX3#197808-198008

88630CBRACKET, COOLER RELAY

main88688-22040iRX3#..GEN197612-198008

W/BOOST VENTILATOR

88645GSWITCH, PRESSURE

main88645-22010iMX3#,RX3#197707-198008

SINGER

sub88645-30250

main88645-22020iMX3#,RX3#197808-198008

TOKAIRIKA

sub88645-30250

88648WIRING, COOLER, NO.1

main88648-22020iMX3#,RX3#..ARL,EUR,GEN197707-197808

main88648-22030iRX3#..GEN197707-198008

W/BOOST VENTILATOR

main88648-22040iMX3#,RX3#197808-198008

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-12020iRX3#..GEN197808-198008

W/BOOST VENTILATOR

main88650-22030iRX3#..GEN197612-197808

W/BOOST VENTILATOR

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-22280iMX3#,RX3#197707-198008

main88716-22290iRX3#..RHD197707-198008

W/BOOST VENTILATOR

main88716-22300iRX3#..LHD197707-198008

W/BOOST VENTILATOR

8857822050PAKING, COOLER AIR DUCT

main88578-22050

9011906142

main90119-06142

9015960034

main90159-60034

9016040008

main90160-40008

9017906115

main90179-06115

9048026004

main90480-26004

9165140612

main91651-40612

21 parts on this diagram · 1 diagram in section
