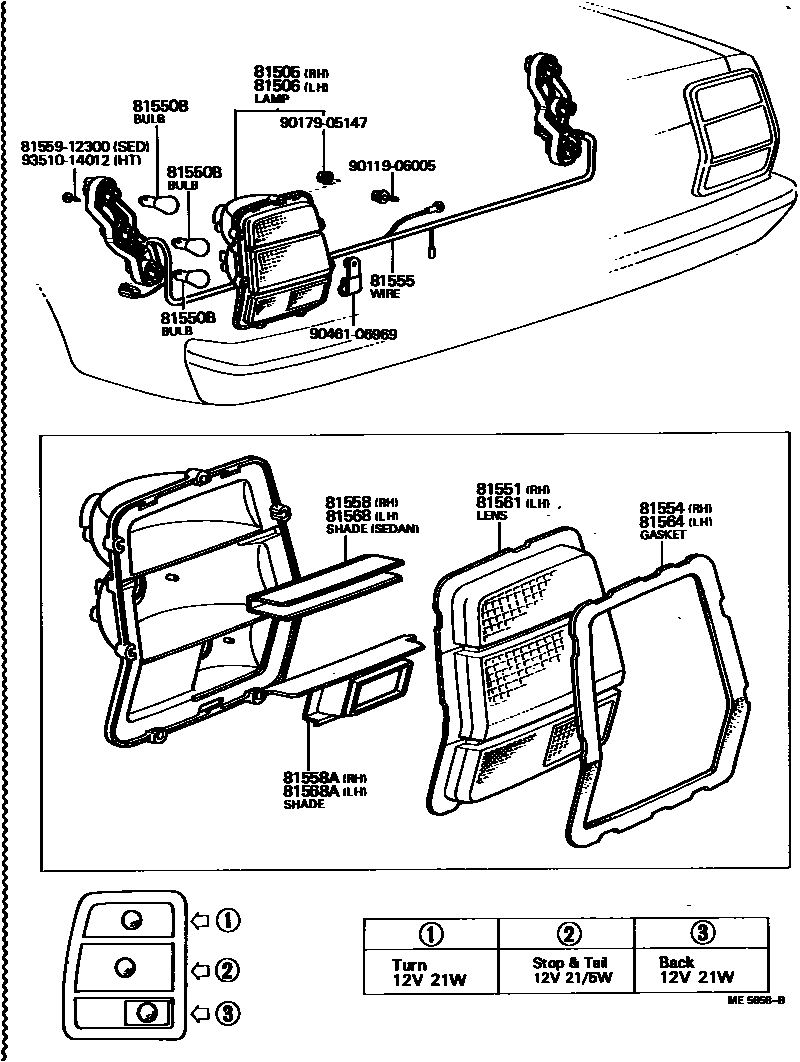

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

81505LAMP SUB-ASSY, REAR COMBINATION, RH

main81505-29035iMX32,RX30..SED197612-197808

main81505-29055iRX30..HT197612-197808

main81505-29225iMX32,RX30,TX30..SED197808-198008

main81505-29255iRX30..HT197808-198008

81506LAMP SUB-ASSY, REAR COMBINATION, LH

main81506-29035iMX32,RX30..SED197612-197808

main81506-29055iRX30..HT197612-197808

main81506-29145iMX32,RX30,TX30..SED197808-198008

main81506-29175iRX30..HT197808-198008

81550LAMP ASSY, REAR COMBINATION, RH

main81550-29815iMX36,RX35197612-197808

main81550-29895iMX36,RX35197808-198008

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iMX3#,RX3#,TX30197612-198008

12V 21W,12V 21W

main99132-21210iMX3#,RX3#,TX30197612-198008

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-22420iMX32,RX30..SED197612-197808

main81551-22440iMX32,RX30,TX30..SED197808-198008

main81551-23140iMX36,RX35197612-197808

main81551-23160iMX36,RX35197808-198008

main81551-95801iRX30..HT197612-197808

main81551-95805iRX30..HT197808-198008

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-22400iMX32,RX30..SED197612-197808

sub81552-22440

main81552-22440iMX32,RX30,TX30..SED197808-198008

main81552-95800iRX30..HT197612-197808

main81552-95804iRX30..HT197808-198008

main81554-23130iMX36,RX35197612-197808

main81554-23160iMX36,RX35197808-198008

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-22420iMX32,RX30..SED197612-197706

main81555-22421iMX32,RX30..SED197706-197808

main81555-22450iMX32,RX30..SED197808-197908

sub81555-22451

main81555-22451iMX32,RX30,TX30..SED197908-198008

main81555-23140iMX36,RX35197612-197808

main81555-23180iMX36,RX35197808-198008

main81555-95801iRX30..HT197612-197706

main81555-95803iRX30..HT197706-197808

main81555-95804iRX30..HT197808-198008

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-22400iMX32,RX30..SED197612-197808

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-22400iMX32,RX30..SED197612-197808

main81559-95800iRX30..HT197612-197808

81561LENS, REAR COMBINATION LAMP, LH

main81561-22420iMX32,RX30..SED197612-197808

main81561-22440iMX32,RX30,TX30..SED197808-198008

main81561-23140iMX36,RX35197612-197808

main81561-23160iMX36,RX35197808-198008

main81561-95801iRX30..HT197612-197808

main81561-95805iRX30..HT197808-198008

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-22400iMX32,RX30..SED197612-197808

sub81552-22440

main81552-22440iMX32,RX30,TX30..SED197808-198008

main81554-23130iMX36,RX35197612-197808

main81562-95800iRX30..HT197612-197808

main81562-95804iRX30..HT197808-198008

main81564-23160iMX36,RX35197808-198008

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81568-22400iMX32,RX30..SED197612-197808

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81567-22400iMX32,RX30..SED197612-197808

main81569-95800iRX30..HT197612-197808

8155912300MOULDING, REAR COMBINATION LAMP, RH

main81559-12300

9011906005

main90119-06005

9017905147

main90179-05147

9046106969

main90461-06969

9351014012

main93510-14012

18 parts on this diagram · 4 diagrams in section
