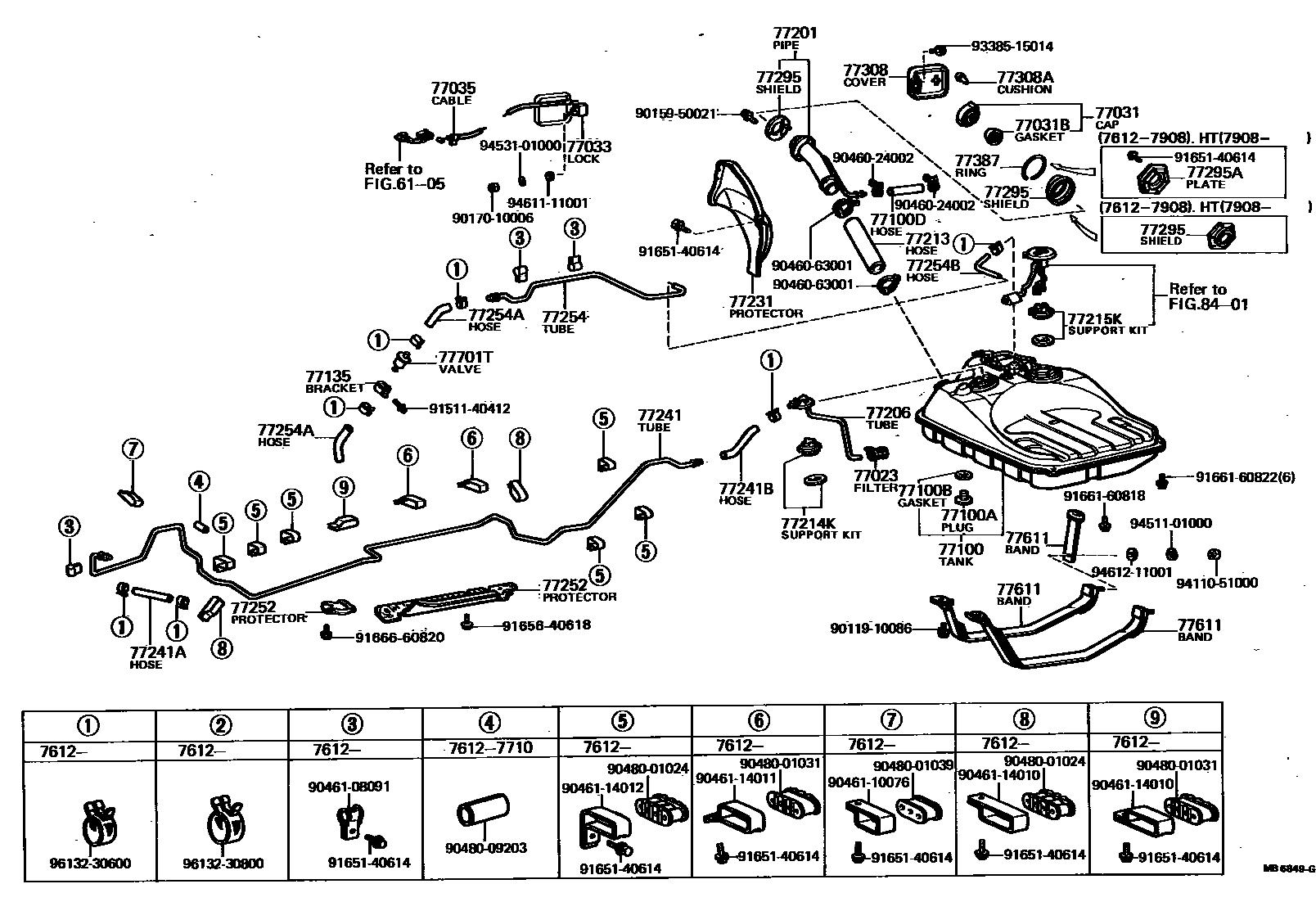

FUEL TANK & TUBE

0001 1 0002 1 0004 1 0005 1 0006 1

6105

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iRX3#,TX30197801-198008

main77023-22040iMX3#197801-198008

77031CAP ASSY, FUEL TANK

main77310-12090iMX3#,RX3#,TX30197908-198008

sub77310-12100

main77310-14070iMX3#,RX3#197708-197908

main77310-30050iMX3#,RX3#197612-197708

sub77310-14070

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iMX3#,RX3#,TX30197708-198008

main77316-12060iMX3#,RX3#197612-197708

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-22030iMX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN)197808-198008

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-22030iMX32,RX30..SED..RHD..(DLX,GL)..(ARL,EUR,GEN)197808-198008

main77035-22040iRX30..SED..LHD..(DLX,GL)197808-198008

main77035-91600iRX35..RHD..4F..EUG;MX36,RX35..RHD..DLX..(ARL,GEN,SA)197808-198008

main77035-91601iRX35..LHD..DLX197808-198008

main77035-95800iRX30..HT..RHD197808-198008

main77035-95801iRX30..HT..LHD197808-198008

77100TANK ASSY, FUEL

main77001-22120iMX32,RX30..ARL,GEN,SA197612-197801

sub77001-22140

main77001-22141iMX32,RX30,TX30197801-198008

sub77100-22360

sub77100-22370

sub77100-22380

sub77100-22390

sub77100-22400

main77001-22150iRX30..EUR197612-197801

sub77001-22140

main77001-91616iMX36197612-197801

sub77001-91619

main77001-91617iRX35197612-197801

sub77001-91618

main77001-91618iRX35197801-197904

sub77001-91620

main77001-91619iMX36197801-197904

sub77001-91621

main77001-91620iRX35197904-198008

sub77001-91644

main77001-91621iMX36197904-198008

sub77001-91645

77100APLUG(FOR FUEL TANK)

main90105-12018iMX36,RX35197612-198008

main90341-24036iMX32,RX30,TX30197612-198008

77100BGASKET(FOR FUEL TANK)

main90430-12245iMX36,RX35197612-198008

main90430-24047iMX32,RX30,TX30197612-198008

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-22003iMX32,RX30,TX30197612-198008

L=120

main90445-22007iMX36,RX35197612-198008

L=520

77135BRACKET, CHECK VALVE

main77135-22020iMX32,RX30,TX30..EUR,GEN,SA197612-198008

main77135-91600iRX35197612-198008

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22070iMX32,RX30197612-197908

main77201-22072iMX32,RX30,TX30..SED197908-198008

main77201-91606iMX36,RX35197612-197908

main77201-91608iMX36,RX35197908-198008

main77201-95800iRX30..HT197908-198008

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-22010iMX32197612-197801

sub77017-22011

main77017-22011iMX32197801-198008

main77017-22031iTX30..3FC198001-198008

main77017-22040iRX30197612-197801

sub77017-22041

main77017-22041iTX30..4F197801-198008

main77017-91258iRX35198005-198008

main77017-91602iRX35197801-198005

main77017-91603iMX36197801-198005

main77017-91610iMX36198005-198008

77213HOSE, FUEL TANK SUB INLET

main77213-22040iMX32,RX30,TX30197612-198008

sub77408-22010

main77213-91605iMX36,RX35197612-197905

sub77213-91606

main77213-91606iMX36,RX35197905-198008

77214KSUPPORT KIT, FUEL TANK TUBE

main04772-12010iMX32,RX30,TX30197612-198008

77215KSUPPORT KIT, FUEL TANK GAGE

main04772-12020iMX32,RX30,TX30197612-198008

77231PROTECTOR, INLET TUBE

main77277-22010iMX32,RX30197612-198008

main77277-22011iMX32,RX30,TX30..SED197908-198008

77241TUBE, FUEL MAIN, NO.1

main77251-22130iRX30,TX30197612-198008

main77251-22140iMX32..ARL197612-197908

sub77251-22180

main77251-22141iMX32..ARL197908-198008

main77251-22170iMX32..SA197707-198001

main77251-91613iRX35197612-198008

main77251-91614iMX36197612-198008

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95331-06014iRX3#197612-197706

*H,L=140

sub95332-06014

main95331-08018iMX3#197612-197706

*H,L=180

sub95332-08018

main95332-06014iRX3#197706-197904

L=200(*H,L=140)

sub95332-06020

main95332-06020iRX3#,TX30197904-198008

L=200(*H,L=140)

sub95333-06020

main95332-08018iMX3#197706-197904

L=200(*H,L=180)

sub95332-08020

main95332-08020iMX3#197904-198008

L=200(*H,L=170)

sub95333-08020

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95331-06022iRX35197612-197706

*H,L=220

sub95332-06022

main95331-06024iRX30197612-197706

*H,L=240

sub95332-06024

main95331-08022iMX36197612-197706

*H,L=220

sub95332-08022

main95331-08024iMX32197612-197706

*H,L=240

sub95332-08024

main95332-06022iRX35197706-197804

L=300(*H,L=220),L=220

sub95332-06030

main95332-06024iRX30197706-197904

L=300(*H,L=240)

sub95332-06030

main95332-06030iRX3#,TX30197904-198008

L=300(*H,L=240)

sub95333-06030

main95332-08022iMX36197706-197804

L=300(*H,L=220)

sub95333-08030

main95332-08024iMX3#197706-197904

L=300(*H,L=240)

sub95332-08030

main95332-08030iMX3#197904-198008

L=300(*H,L=240)

sub95333-08030

77252PROTECTOR, FUEL TUBE

main77266-22020iMX3#197612-198008

FOR REAR

main77266-22030iRX3#,TX30197612-198008

FOR REAR

main77267-22010iMX3#197612-198008

FOR FRONT

main77267-22020iRX3#,TX30197612-198008

FOR FRONT

77254TUBE, FUEL EMISSION, NO.1

main77227-22030iMX32,RX30,TX30..EUR,GEN,SA197612-198008

main77261-22020iMX32..ARL197612-197908

main77261-22021iMX32..ARL197908-198008

main77261-91603iMX36197612-198008

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main95331-06007iRX30197612-197706

*H,L=70

main95331-06009iRX30197612-197706

*H,L=90

main95331-06017iMX3#197612-197706

*H,L=170

main95332-06007iMX32,RX30..EUR,GEN,SA197706-197904

L=100(*H,L=70)

sub95332-06010

main95332-06009iMX32,RX30..EUR,GEN,SA197706-197904

L=100(*H,L=90)

sub95332-06010

main95332-06010iMX32,RX30,TX30..EUR,GEN,SA197904-198008

L=100(*H,L=90)

sub95333-06010

main95332-06017iMX32197706-197808

L=200(*H,L=170)

sub95332-06020

main95332-06020iMX3#..ARL197904-198008

L=200(*H,L=170)

sub95333-06020

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95331-06016iMX32,RX30197612-197706

*H,L=160

main95332-06016iMX32,RX30197706-197903

L=200(*H,L=160)

sub95332-06020

main95332-06017iMX32,RX30197903-197904

L=200(*H,L=170)

sub95332-06020

main95332-06020iMX32,RX30,TX30197904-198008

L=200(*H,L=170)

sub95333-06020

77295SHIELD, FUEL FILLER PIPE

main77291-22010iMX32,RX30197612-198008

FOR LOWER

main77291-22011iMX32,RX30,TX30..SED197908-198008

FOR LOWER

main77292-22010iMX32,RX30197612-198008

FOR UPPER

main77292-22011iMX32,RX30,TX30..SED197908-198008

FOR UPPER

77295APLATE, FUEL FILLER PIPE SHIELD SUPPORT

main77294-22010iMX32,RX30197612-198008

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-22010iMX32,RX30197612-197808

main77350-22011iMX32,RX30197808-198008

main77350-91600iMX36,RX35197612-197808

sub77350-91601

main77350-91601iMX36,RX35197808-198008

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-03001iMX3#,RX3#197612-197907

main90541-08003iMX3#,RX3#,TX30197907-198008

77387RING, FUEL INLET BOX

main77391-14010iMX32,RX30,TX30..SED197908-198008

77611BAND, FUEL TANK

main77601-22020iMX32,RX30,TX30197612-198008

FOR FRONT RH.

sub77601-22050

main77602-22030iMX32,RX30,TX30197612-198008

FOR FRONT LH.

sub77602-22060

main77603-22020iMX32,RX30,TX30197612-198008

FOR REAR

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iMX32,RX3#,TX30..EUR,GEN,SA197612-198008

8401

9011910086

main90119-10086

9015950021

main90159-50021

9017010006

main90170-10006

9046024002

main90460-24002

9046063001

main90460-63001

9046108091

main90461-08091

9046110076

main90461-10076

9046114010

main90461-14010

9046114011

main90461-14011

9046114012

main90461-14012

9048001024

main90480-01024

9048001031

main90480-01031

9048001039

main90480-01039

9048009203

main90480-09203

9151140412

main91511-40412

9165140614

main91651-40614

9165640618

main91656-40618

9166160818

main91661-60818

9166160822

main91661-60822

9166660820

main91666-60820

9338515014

main93385-15014

9411051000

main94110-51000

9451101000

main94511-01000

9453101000

main94531-01000

9461111001

main94611-11001

9461211001

main94612-11001

9613230600

main96132-30600

9613230800

main96132-30800

60 parts on this diagram · 5 diagrams in section
