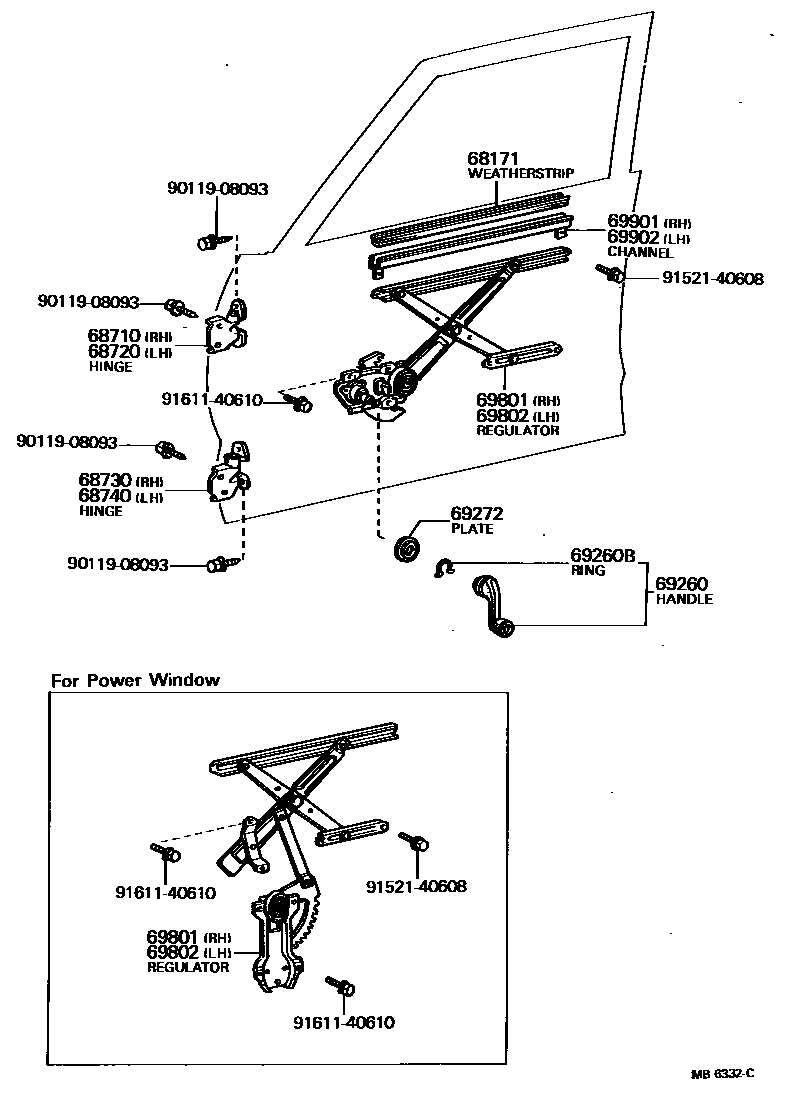

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main69971-22010×2iMX3#,RX3#,TX30..SED,WG197612-198008

sub69971-95110

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-22030iMX3#,RX3#,TX30197612-198008

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-22020iMX3#,RX3#,TX30197612-198008

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-22030iMX3#,RX3#,TX30197612-198008

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-22030iMX3#,RX3#,TX30197612-198008

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22020-01×2iMX3#,RX3#,TX30197612-198008

BLACK,BLACK,TRIM1#,2#

sub69260-14030

main69260-22020-02×2iMX3#,RX3#,TX30197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub69260-14030

main69260-22020-05×2iMX3#,RX3#,TX30197612-198008

BEIGE,BEIGE,TRIM4#

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iMX3#,RX3#,TX30197612-198008

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69272-30010×2iMX3#,RX3#,TX30197612-198008

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22050iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW

main69801-95800iRX30..HT197612-198008

main69801-95801iRX30..HT..GL197808-198008

FOR POWER WINDOW

main69810-22030iMX3#,RX3#,TX30..SED,WG197612-198008

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22050iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW

main69802-95800iRX30..HT197612-198008

main69802-95801iRX30..HT..GL197808-198008

FOR POWER WINDOW

main69820-22030iMX3#,RX3#,TX30..SED,WG197612-198008

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-22040iMX3#,RX3#,TX30..SED,WG197612-198008

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-22040iMX3#,RX3#,TX30..SED,WG197612-198008

9011908093

main90119-08093

9152140608

main91521-40608

9161140610

main91611-40610

15 parts on this diagram · 2 diagrams in section
