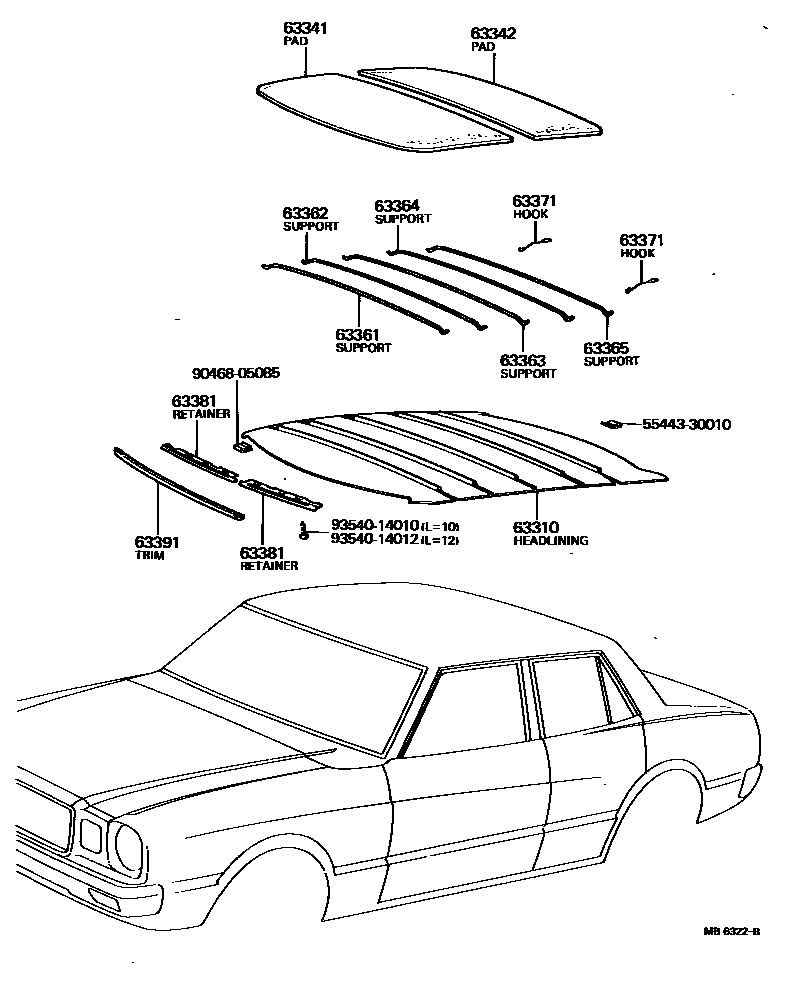

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63310HEADLINING ASSY, ROOF

main63310-22070-03iMX32,RX30..SED197612-197808

GRAY,GRAY,TRIM1#,2#

main63310-22070-05iMX32,RX30..SED197612-198008

BEIGE,BEIGE,TRIM4#

main63310-22070-08iMX32,RX30,TX30..SED..(DLX,STD)197808-198008

IVORY,IVORY,TRIM2#,3#

main63310-22081-05iMX32,RX30..SED..(GL,SDX)197808-198008

BEIGE,BEIGE,TRIM4#

sub63310-22081

main63310-22081-08iMX32,RX30..SED..(GL,SDX)197808-198008

IVORY,IVORY,TRIM2#,3#

sub63310-22081

main63310-95800-03iRX30..HT197612-197808

GRAY,GRAY,TRIM1#,2#

main63310-95800-05iRX30..HT..DLX197612-198008

BEIGE,BEIGE,TRIM4#

main63310-95800-08iRX30..HT..DLX197808-198008

IVORY,IVORY,TRIM2#,3#

main63310-95801-05iRX30..HT..GL197808-198008

BEIGE,BEIGE,TRIM4#

sub63310-95801

main63310-95801-18iRX30..HT..GL197808-198008

IVORY,IVORY,TRIM2#,3#

sub63310-95801

main63311-91607-03iMX36,RX35197612-197808

GRAY,GRAY,TRIM1#,2#

main63311-91607-05iMX36,RX35197612-198008

BEIGE,BEIGE,TRIM4#

main63311-91607-08iMX36,RX35197808-198008

IVORY,IVORY,TRIM2#,3#

63341PAD, ROOF SILENCER, NO.1

main63341-22050iMX3#,RX3#..SED,WG197612-197711

sub63341-22060

main63341-22060iMX3#,RX3#,TX30..SED,WG197711-198008

sub63341-22H92

main63341-95801iRX30..HT197612-198008

63342PAD, ROOF SILENCER, NO.2

main63343-22040iMX32,RX30,TX30..SED197612-198008

sub63341-22H92

main63343-91605iMX36,RX35197612-198008

sub63341-22H92

main63343-95800iRX30..HT197612-198008

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-22030iMX32,RX30,TX30..SED197612-198008

FOR COLOR RED

sub63361-22050

main63361-22040iMX32,RX30,TX30..SED197612-198008

FOR COLOR BROWN

main63361-22050iMX32,RX30,TX30..SED197612-198008

FOR COLOR YELLOW

main63361-91605iMX36,RX35197612-198008

main63361-95800iRX30..HT197612-198008

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-22030iMX32,RX30,TX30..SED197612-198008

FOR COLOR RED

sub63361-22050

main63361-22040iMX32,RX30,TX30..SED197612-198008

FOR COLOR BROWN

main63361-22050iMX32,RX30,TX30..SED197612-198008

FOR COLOR YELLOW

main63361-91605iMX36,RX35197612-198008

main63361-95800iRX30..HT197612-198008

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-22030iMX32,RX30,TX30..SED197612-198008

FOR COLOR RED

sub63361-22050

main63361-22040iMX32,RX30,TX30..SED197612-198008

FOR COLOR BROWN

main63361-22050iMX32,RX30,TX30..SED197612-198008

FOR COLOR YELLOW

main63361-91605iMX36,RX35197612-198008

main63361-95800iRX30..HT197612-198008

63364SUPPORT, ROOF HEADLINING, NO.4

main63361-22030iMX32,RX30,TX30..SED197612-198008

FOR COLOR RED

sub63361-22050

main63361-22040iMX32,RX30,TX30..SED197612-198008

FOR COLOR BROWN

main63361-22050iMX32,RX30,TX30..SED197612-198008

FOR COLOR YELLOW

main63361-91605iMX36,RX35197612-198008

main63361-95800iRX30..HT197612-198008

63365SUPPORT, ROOF HEADLINING, NO.5

main63361-91605iMX36,RX35197612-198008

main63362-22030iMX32,RX30,TX30..SED197612-198008

FOR COLOR GREEN

main63362-22040iMX32,RX30,TX30..SED197612-198008

FOR COLOR BLACK

main63362-22050iMX32,RX30,TX30..SED197612-198008

FOR COLOR WHITE

63371HOOK, ROOF HEADLINING SUPPORT

main63372-12010iRX30..HT197612-198008

main63372-30040iMX32,RX30,TX30..SED197612-198008

main63372-91600iMX36,RX35197612-198008

63381RETAINER, HEADLINING, FRONT

main63381-22010iMX3#,RX3#,TX30..SED,WG197612-198008

FOR RH.

main63382-22010iMX3#,RX3#,TX30..SED,WG197612-198008

FOR LH.

main63382-95800iRX30..HT197612-198008

63391TRIM, ROOF HEADLINING, FRONT

main63391-22010-03iMX3#,RX3#197612-197808

GRAY,GRAY,TRIM1#,2#

sub63391-22010

main63391-22010-05iMX3#,RX3#,TX30197612-198008

BEIGE,BEIGE,TRIM4#

sub63391-22010

main63391-22010-08iMX3#,RX3#,TX30197808-198008

IVORY,IVORY,TRIM2#,3#

sub63391-22010

5544330010GARNISH, INSTRUMENT PANEL, RH

main55443-30010

9046805085

main90468-05085

9354014010

main93540-14010

9354014012

main93540-14012

15 parts on this diagram · 3 diagrams in section
