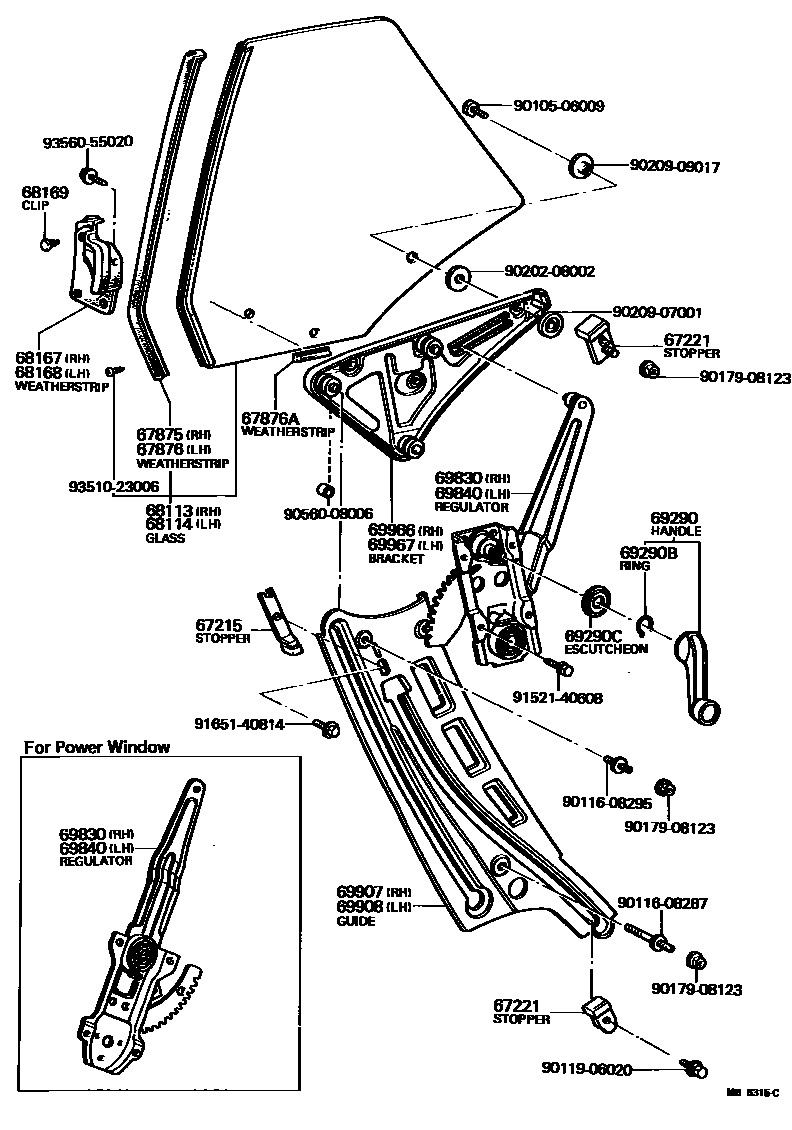

QUARTER WINDOW
67215STOPPER, QUARTER WINDOW, UPPER FRONT
67221STOPPER, QUARTER WINDOW, UPPER
FOR UPPER
FOR LOWER
67875WEATHERSTRIP, REAR QUARTER WINDOW GLASS, RH
67876WEATHERSTRIP, REAR QUARTER WINDOW GLASS, LH
67876AWEATHERSTRIP, QUARTER WINDOW GLASS, LOWER
68113GLASS, QUARTER WINDOW, RH
68114GLASS, QUARTER WINDOW, LH
68167WEATHERSTRIP, REAR QUARTER FRONT CORNER, RH
68168WEATHERSTRIP, REAR QUARTER FRONT CORNER, LH
68169CLIP, CORNER WEATHERSTRIP
69290HANDLE ASSY, QUARTER WINDOW REGULATOR
69290BRING, SNAP(FOR QUARTER WINDOW REGULATOR HANDLE)
sub90520-01274
69290CESCUTCHEON(FOR QUARTER WINDOW REGULATOR HANDLE)
69830REGULATOR ASSY, REAR QUARTER WINDOW, RH
FOR POWER WINDOW
69840REGULATOR ASSY, REAR QUARTER WINDOW, LH
FOR POWER WINDOW
69907GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, RH
69908GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, LH
69966BRACKET, REAR QUARTER WINDOW GLASS, RH
69967BRACKET, REAR QUARTER WINDOW GLASS, LH
9010506009
main90105-06009
9011608287
main90116-08287
9011608295
main90116-08295
9011906020
main90119-06020
9017908123
main90179-08123
9020208002
main90202-08002
9020907001
main90209-07001
9020909017
main90209-09017
9056008006
main90560-08006
9152140608
main91521-40608
9165140814
main91651-40814
9351023006
main93510-23006
9356055020
main93560-55020
32 parts on this diagram · 2 diagrams in section
