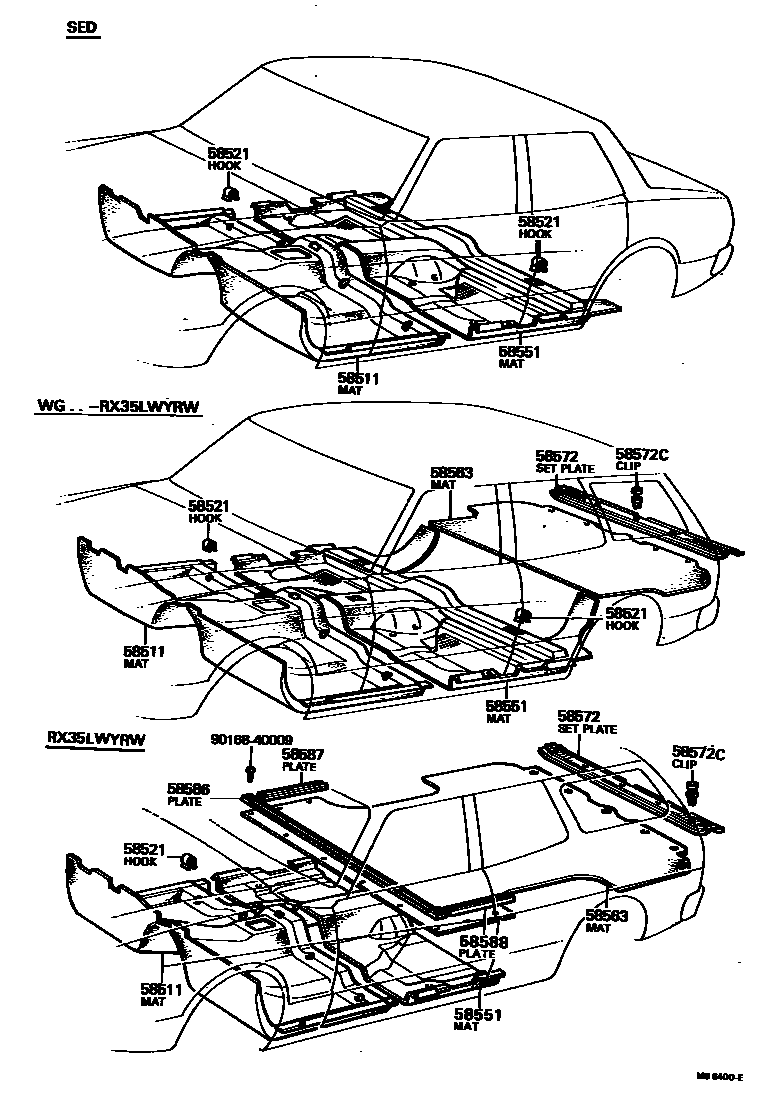

FLOOR MAT

58511MAT, FLOOR, FRONT

main58510-22240-01iRX3#..LHD..3H..STD..GEN197706-197808

BLACK,BLACK,TRIM2#

main58510-22240-05iRX3#..LHD..3H..STD197612-197706

BEIGE,BEIGE,TRIM4#

main58510-22241-01iRX3#..LHD..3H..STD197808-198008

BLACK,BLACK,TRIM2#

main58510-22241-05iRX3#..LHD..3H..STD197808-198008

BEIGE,BEIGE,TRIM4#

main58510-22260-01iRX3#..RHD..3H..STD197612-197808

BLACK,BLACK,TRIM2#

main58510-22260-05iRX3#..RHD..3H..STD197612-197808

BEIGE,BEIGE,TRIM4#

main58510-22261-01iRX3#..RHD..3H..STD197808-198008

BLACK,BLACK,TRIM2#

main58510-22261-05iRX3#..RHD..3H..STD197808-198008

BEIGE,BEIGE,TRIM4#

main58510-22270-01iRX3#..RHD..4F..STD..(EUR,GEN)197612-197808

BLACK,BLACK,TRIM2#

main58510-22270-05iRX3#..RHD..4F..STD..(EUR,GEN)197612-197808

BEIGE,BEIGE,TRIM4#

main58510-22271-01iRX3#..RHD..4F..STD..GEN197808-198008

BLACK,BLACK,TRIM2#

main58510-22271-05iRX3#..RHD..4F..STD..GEN197808-198008

BEIGE,BEIGE,TRIM4#

main58510-22290-01iRX3#..LHD..4F..STD197612-197808

BLACK,BLACK,TRIM2#

main58510-22290-05iRX3#..LHD..4F..STD197612-197808

BEIGE,BEIGE,TRIM4#

main58510-22291-01iRX3#..LHD..4F..STD..GEN197808-198008

BLACK,BLACK,TRIM2#

main58510-22291-05iRX3#..LHD..4F..STD..GEN197808-198008

BEIGE,BEIGE,TRIM4#

58521HOOK, MALE, NO.1

main58521-22040×12iRX3#..STD..(EUR,GEN)197612-197808

58551MAT, FLOOR, REAR

main58540-22180-01iRX30..3H..STD197612-197707

BLACK,BLACK,TRIM2#

main58540-22180-05iRX30..3H..STD197612-197707

BEIGE,BEIGE,TRIM4#

main58540-22181-01iRX3#..3H..STD..GEN197707-197808

BLACK,BLACK,TRIM2#

main58540-22181-05iRX3#..3H..STD..GEN197707-197808

BEIGE,BEIGE,TRIM4#

main58540-22182-01iRX3#..3H..STD197808-198008

BLACK,BLACK,TRIM2#

main58540-22182-05iRX3#..3H..STD197808-198008

BEIGE,BEIGE,TRIM4#

main58540-22190-01iRX30..3H..STD197612-197707

W/SEAT BELT,BLACK,BLACK,TRIM2#

main58540-22190-05iRX30..3H..STD197612-197707

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

main58540-22200-01iRX30..4F..STD197612-197707

BLACK,BLACK,TRIM2#

main58540-22200-05iRX30..4F..STD197612-197707

BEIGE,BEIGE,TRIM4#

main58540-22201-01iRX3#..4F..STD..(EUR,GEN)197707-197808

BLACK,BLACK,TRIM2#

main58540-22201-05iRX3#..4F..STD..(EUR,GEN)197707-197808

BEIGE,BEIGE,TRIM4#

main58540-22202-01iRX3#..4F..STD..GEN197808-198008

BLACK,BLACK,TRIM2#

main58540-22202-05iRX3#..4F..STD..GEN197808-198008

BEIGE,BEIGE,TRIM4#

main58540-22310-01iRX30..4F..STD197612-197707

W/SEAT BELT,BLACK,BLACK,TRIM2#

main58540-22310-05iRX30..4F..STD197612-197707

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

main58540-91600-01iRX35..3H..GEN197612-197707

W/SEAT BELT,BLACK,BLACK,TRIM2#

main58540-91600-05iRX35..3H..GEN197612-197707

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

main58540-91602-01iRX35..4F..STD197612-197707

BLACK,BLACK,TRIM2#

main58540-91602-05iRX35..4F..STD197612-197707

BEIGE,BEIGE,TRIM4#

main58540-91611-01iRX35..4F..STD197612-197707

W/SEAT BELT,BLACK,BLACK,TRIM2#

main58540-91611-05iRX35..4F..STD197612-197707

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

main58540-91612-01iRX35..3H..EUG197704-197808

BLACK,BLACK,TRIM2#

main58540-91612-05iRX35..3H..EUG197704-197808

BEIGE,BEIGE,TRIM4#

main58540-91613-01iRX35..3H..GEN197612-197707

BLACK,BLACK,TRIM2#

main58540-91613-05iRX35..3H..GEN197612-197707

BEIGE,BEIGE,TRIM4#

58563MAT, REAR FLOOR

main58581-91600-01iRX35..STD..(EUR,GEN)197612-198008

BLACK,BLACK,TRIM2#

main58581-91600-05iRX35..STD..(EUR,GEN)197612-198008

BEIGE,BEIGE,TRIM4#

main58581-91601-01iRX35..3H..EUG197704-197808

BLACK,BLACK,TRIM2#

main58581-91601-05iRX35..3H..EUG197704-197808

BEIGE,BEIGE,TRIM4#

58572SET PLATE, REAR FLOOR MAT, REAR

main58387-91600-01iRX35..STD..(EUR,GEN)197612-198008

BLACK,BLACK,TRIM2#

main58387-91600-05iRX35..STD..(EUR,GEN)197612-198008

BEIGE,BEIGE,TRIM4#

58572CCLIP, REAR FLOOR MAT SET

main90467-08114-11×5iRX35..STD..(EUR,GEN)197612-198008

BLACK,BLACK,TRIM2#

main90467-08114-25×5iRX35..STD..(EUR,GEN)197612-198008

BEIGE,BEIGE,TRIM4#

58586PLATE, REAR FLOOR MAT SUPPORT, FRONT

main58573-91600iRX35..3H..EUG197704-197808

58587PLATE, REAR FLOOR MAT SUPPORT SIDE, RH

main58577-91600iRX35..3H..EUG197704-197808

58588PLATE, REAR FLOOR MAT SUPPORT SIDE, LH

main58578-91600iRX35..3H..EUG197704-197808

9016840009

main90168-40009

10 parts on this diagram · 1 diagram in section
