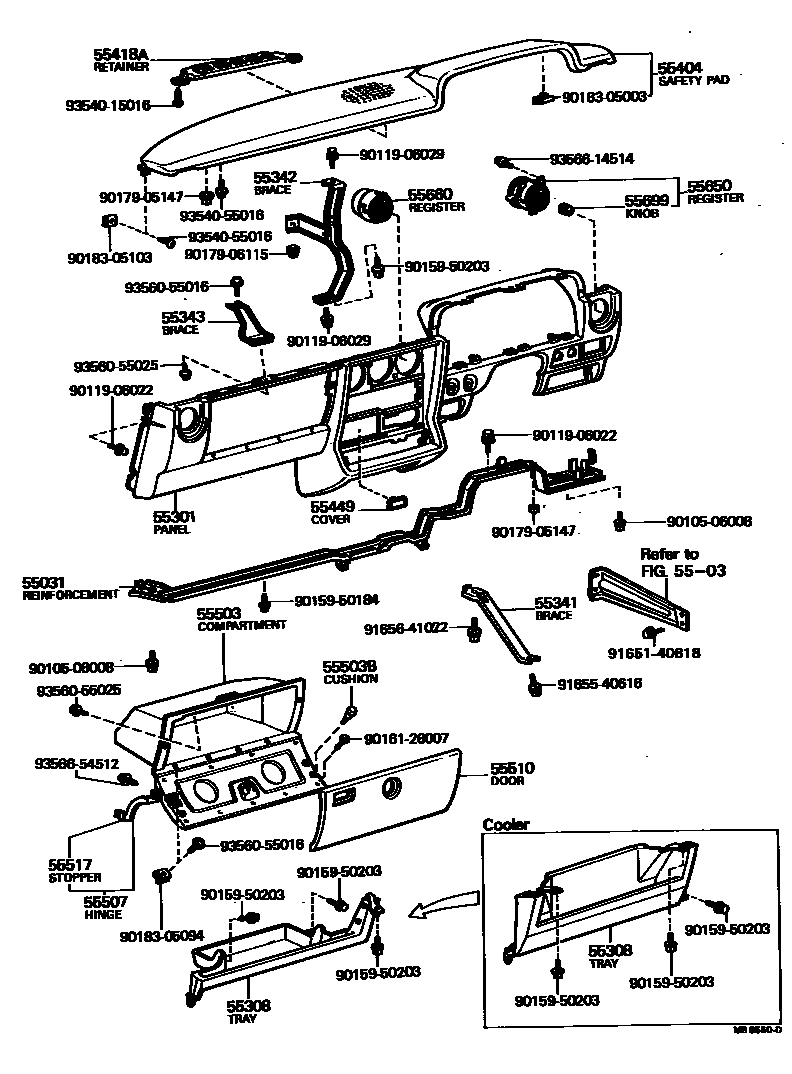

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

5503

55031REINFORCEMENT, INSTRUMENT PANEL, NO.1

main55305-22050iRX3#..LHD197612-198008

main55305-22060iMX3#,RX3#,TX30..RHD197612-198008

55301PANEL SUB-ASSY, INSTRUMENT

main55311-22040-01iRX3#..LHD197612-198008

BLACK,BLACK,TRIM2#

main55311-22040-02iRX3#..LHD197808-198008

DARK WINE,RED/MAROON,TRIM3#

main55311-22040-03iRX3#..LHD197612-197808

GRAY,GRAY,TRIM1#

main55311-22040-05iRX3#..LHD197612-198008

BEIGE,BEIGE,TRIM4#

main55311-22050-01iMX3#,RX3#,TX30..RHD197612-198008

BLACK,BLACK,TRIM2#

main55311-22050-02iMX3#,RX3#,TX30..RHD197808-198008

DARK WINE,RED/MAROON,TRIM3#

main55311-22050-03iMX3#,RX3#..RHD197612-197808

GRAY,GRAY,TRIM1#

main55311-22050-05iMX3#,RX3#,TX30..RHD197612-198008

BEIGE,BEIGE,TRIM4#

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-22010-01iRX3#..LHD..(DLX,GL)197612-198008

BLACK,BLACK,TRIM1#,2#

sub55601-22010

main55601-22010-02iRX3#..LHD..(DLX,GL)197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub55601-22010

main55601-22010-05iRX3#..LHD..(DLX,GL)197612-198008

BEIGE,BEIGE,TRIM4#

sub55601-22010

main55601-22020-01iMX3#,RX3#..RHD..(DLX,GL)197612-198008

BLACK,BLACK,TRIM1#,2#

sub55601-22020

main55601-22020-02iMX3#,RX3#..RHD..(DLX,GL)197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub55601-22020

main55601-22020-05iMX3#,RX3#..RHD..(DLX,GL)197612-198008

BEIGE,BEIGE,TRIM4#

sub55601-22020

main55601-22030-01iRX3#..LHD..DLX..GEN197612-197808

FOR COOLER,BLACK,BLACK,TRIM1#,2#

sub55601-22030

main55601-22030-01iRX3#..LHD..EUG197808-198008

FOR COOLER,BLACK,BLACK,TRIM2#

sub55601-22030

main55601-22030-02iRX3#..LHD..EUG197808-198008

FOR COOLER,DARK WINE,RED/MAROON,TRIM3#

sub55601-22030

main55601-22030-05iRX3#..LHD..DLX..GEN197612-198008

FOR COOLER,BEIGE,BEIGE,TRIM4#

sub55601-22030

main55601-22040-01iRX3#..RHD..DLX..GEN197612-197808

FOR COOLER,BLACK,BLACK,TRIM1#,2#

sub55601-22040

main55601-22040-01iMX3#,RX3#,TX30..RHD197808-198008

FOR COOLER,BLACK,BLACK,TRIM2#

sub55601-22040

main55601-22040-02iMX3#,RX3#,TX30..RHD197808-198008

FOR COOLER,DARK WINE,RED/MAROON,TRIM3#

sub55601-22040

main55601-22040-05iMX3#..ARL197612-198008

FOR COOLER,BEIGE,BEIGE,TRIM4#

sub55601-22040

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-22040iMX3#,RX3#,TX30..RHD..(3FC,4F,5F)197812-198008

main55306-22050iRX3#..LHD..(3FC,4F,5F)197812-198008

main55341-22020iMX3#,RX3#..3FC,4F,5F197612-197812

sub55306-22040

sub55306-22050

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-22110iMX3#,RX3#,TX30..RHD197612-198008

main55307-22120iRX3#..LHD197612-198008

55343BRACE, INSTRUMENT PANEL, NO.3

main55344-22020iMX3#,RX3#,TX30..RHD197612-198008

main55344-22030iRX3#..LHD197612-198008

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-22130-01iRX3#..LHD197612-198008

BLACK,BLACK,TRIM2#

main55401-22130-02iRX3#..LHD197808-198008

DARK WINE,RED/MAROON,TRIM3#

main55401-22130-03iRX3#..LHD197612-197808

GRAY,GRAY,TRIM1#

main55401-22130-05iRX3#..LHD197612-198008

BEIGE,BEIGE,TRIM4#

main55401-22140-01iMX3#,RX3#,TX30..RHD197612-198008

BLACK,BLACK,TRIM2#

main55401-22140-02iMX3#,RX3#,TX30..RHD197808-198008

DARK WINE,RED/MAROON,TRIM3#

main55401-22140-03iMX3#,RX3#..RHD197612-197808

GRAY,GRAY,TRIM1#

main55401-22140-05iMX3#,RX3#,TX30..RHD197612-198008

BEIGE,BEIGE,TRIM4#

55418ARETAINER, SAFETY PAD

main55466-22010iMX3#,RX3#,TX30197808-198008

55449COVER, COOLER SWITCH HOLE

main55538-22010iMX3#,RX3#,TX30197612-198008

55503COMPARTMENT SUB-ASSY, GLOVE

main55552-22010iRX3#..LHD197612-198008

main55552-22020iMX3#,RX3#,TX30..RHD197612-198008

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03078iMX3#,RX3#,TX30197612-198008

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55556-22010iMX3#,RX3#,TX30..RHD197612-198008

main55556-22020iRX3#..LHD197612-198008

55510DOOR ASSY, GLOVE COMPARTMENT

main55551-22010-01iMX3#,RX3#,TX30197612-198008

BLACK,BLACK,TRIM2#

sub55551-22010

main55551-22010-02iMX3#,RX3#,TX30197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub55551-22010

main55551-22010-03iMX3#,RX3#197612-197808

GRAY,GRAY,TRIM1#

sub55551-22010

main55551-22010-05iMX3#,RX3#,TX30197612-198008

BEIGE,BEIGE,TRIM4#

sub55551-22010

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iMX3#,RX3#,TX30197612-198008

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-22010iRX3#,TX30..STD197612-198008

sub55650-22020

main55650-22020iMX3#,RX3#..DLX,GL,SDX197612-198008

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55670-22010iRX3#..STD197612-198008

sub55670-22030

main55670-22020iMX3#,RX3#..DLX,SDX197612-198008

sub55670-22040

main55670-22030iRX3#,TX30..STD197808-198008

FOR W/AIR SHUT

sub55670-22040

main55670-22040iMX3#,RX3#..DLX,GL,SDX197808-198008

FOR W/AIR SHUT

55699KNOB, INSTRUMENT PANEL REGISTER CONTROL

main55699-22010iRX3#,TX30..STD197612-198008

main55699-22020iMX3#,RX3#..DLX,GL,SDX197612-198008

9010506008

main90105-06008

9011906022

main90119-06022

9011906029

main90119-06029

9015950184

main90159-50184

9015950203

main90159-50203

9016126007

main90161-26007

9017905147

main90179-05147

9017906115

main90179-06115

9018305003

main90183-05003

9018305094

main90183-05094

9018305103

main90183-05103

9165140818

main91651-40818

9165540616

main91655-40616

9165641022

main91656-41022

9354015016

main93540-15016

9354055016

main93540-55016

9356055016

main93560-55016

9356055025

main93560-55025

9356614514

main93566-14514

9356654512

main93566-54512
