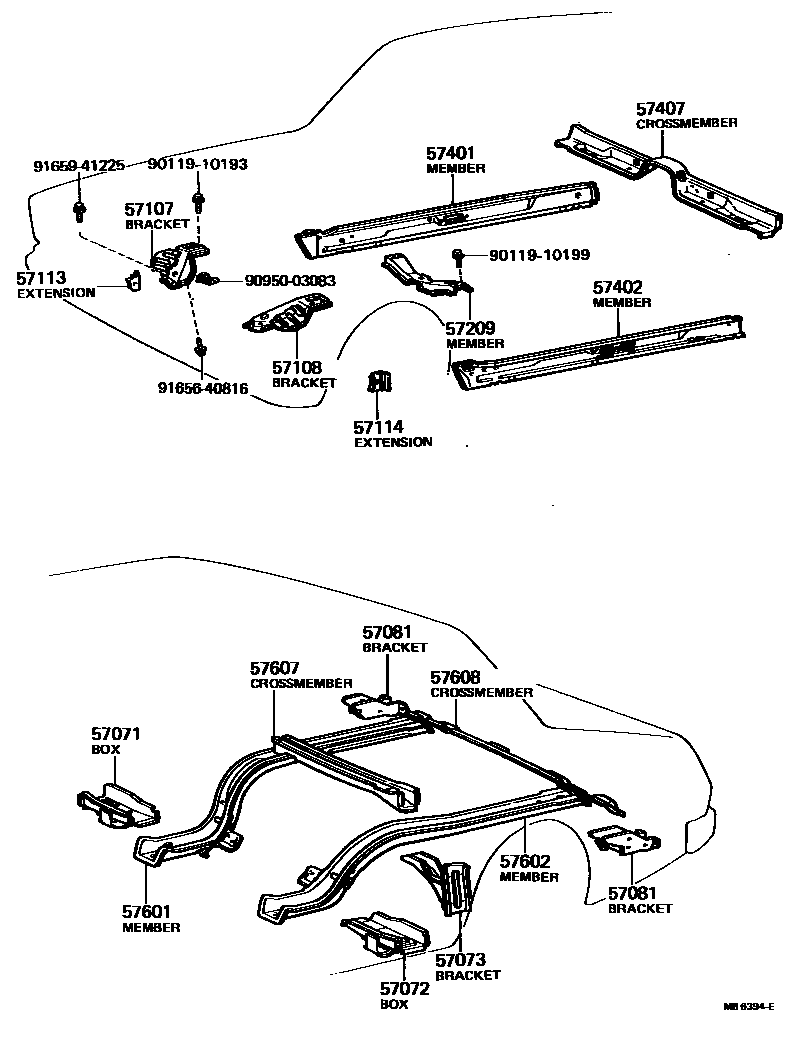

FLOOR SIDE MEMBER

0001 1 0002 1

57071BOX SUB-ASSY, TORQUE, REAR RH

main57071-22030iMX32,RX30,TX30197612-198008

57072BOX SUB-ASSY, TORQUE, REAR LH

main57072-22030iMX32,RX30,TX30197612-198008

57073BRACKET SUB-ASSY, LATERAL ROD

main57073-22030iMX32,RX30197612-197803

main57073-22031iMX32,RX30,TX30197803-198008

57081BRACKET SUB-ASSY, REAR BUMPER MOUNTING

main57081-22010×2iRX30..5F..GL..SA;RX30..SED..LHD..(DLX,GL)..GEN197908-198008

FOR S.A.B.

main57615-22040×2iRX30..5F..DLX..SA;RX30..5F..(EUR,GEN);MX32,RX30,TX30..3FC,3H,4F197612-198008

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-22020iMX3#,RX3#,TX30197612-198008

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-22080iMX3#,RX3#,TX30197612-198008

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-22030iMX3#,RX3#197612-197806

main57113-22040iMX3#,RX3#,TX30197806-198008

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-22030iMX3#,RX3#197612-197806

main57114-22040iMX3#,RX3#,TX30197806-198008

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-22092iMX3#,RX3#197612-197808

main57255-22103iMX3#,RX3#,TX30197808-198008

sub57255-22104

sub57255-22180

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-22010iMX3#,RX3#..SED,WG197612-197702

main57406-22020iMX3#,RX3#..SED,WG197702-197906

main57406-22021iMX3#,RX3#,TX30..SED,WG197906-198008

main57406-95801iRX30..HT197612-197702

main57406-95802iRX30..HT..GEN197702-197808

main57406-95804iRX30..HT197906-198008

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-22010iMX3#,RX3#..SED,WG197612-197702

main57409-22020iMX3#,RX3#..SED,WG197702-197906

main57409-22021iMX3#,RX3#,TX30..SED,WG197906-198008

main57409-95801iRX30..HT197808-197906

main57409-95802iRX30..HT..GEN197702-197808

main57409-95804iRX30..HT197906-198008

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-22010iMX3#,RX3#,TX30197612-198008

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-22070iMX32,RX30197612-197807

main57601-91612iMX36,RX35197612-197808

main57601-91614iMX36,RX35197808-198008

main57601-91615iRX35..LHD..DLX..GEN197908-198008

FOR S.A.B.

main57601-95800iRX30..HT197807-197908

main57601-95802iMX32,RX30,TX30197908-198008

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-22060iMX32,RX30..SED197807-197908

main57602-91612iMX36,RX35197612-197808

main57602-91614iMX36,RX35197808-198008

main57602-91615iRX35..LHD..DLX..GEN197908-198008

FOR S.A.B.

main57602-95800iRX30..HT197807-197908

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-22050iMX32,RX30197612-197803

main57605-22051iMX32,RX30197803-197908

main57605-22052iMX32,RX30,TX30197908-198005

main57605-22053iMX32,RX30,TX30198005-198008

main57606-91608iMX36,RX35198003-198008

main57653-91606iMX36,RX35197612-197908

main57653-91607iMX36,RX35197908-198003

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-22040iMX32,RX30,TX30197612-198008

main57607-91605iMX36,RX35197612-198008

sub57607-91607

main57607-91606iRX35..LHD..DLX..GEN197908-198008

FOR S.A.B.

9011910193

main90119-10193

9011910199

main90119-10199

9095003083

main90950-03083

9165640816

main91656-40816

9165941225

main91659-41225

21 parts on this diagram · 2 diagrams in section
