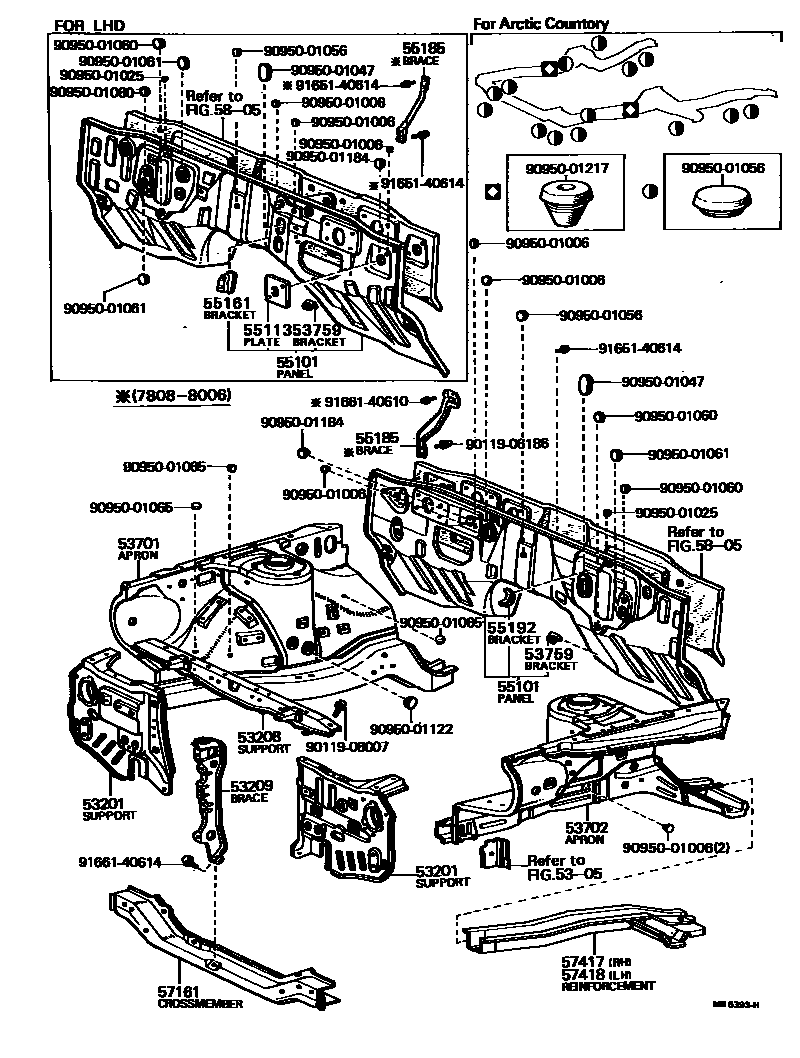

FRONT FENDER APRON & DASH PANEL

5305

53201SUPPORT SUB-ASSY, RADIATOR

main53202-22010iRX3#,TX30197612-198008

FOR RH.

main53202-22020iMX3#197612-198008

FOR RH.

main53203-22050iMX3#197612-198008

FOR LH.

main53203-22070iRX3#,TX30197612-198008

FOR LH.

53208SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER

main33205-22010iMX3#,RX3#,TX30197612-198008

main53205-22010iMX3#,RX3#,TX30197612-198008

53209BRACE SUB-ASSY, HOOD LOCK

main53217-22030iMX3#,RX3#197612-197806

sub53217-22050

main53217-22050iMX3#,RX3#,TX30197806-198008

53701APRON SUB-ASSY, FRONT FENDER, RH

main53710-22010iMX3#,RX3#..RHD197612-197703

sub53710-22030

main53710-22020iRX3#..LHD197612-197703

sub53710-22H00

main53710-22021iRX3#..LHD197703-198008

main53710-22031iMX3#,RX3#..RHD197703-197811

sub53710-22070

main53710-22070iMX3#,RX3#,TX30..RHD197811-198008

53702APRON SUB-ASSY, FRONT FENDER, LH

main53720-22020iRX3#..LHD197612-197703

sub53720-22H00

main53720-22021iRX3#..LHD197703-198008

main53720-22030iMX3#,RX3#..RHD197612-197703

sub53720-22H01

main53720-22041iMX3#,RX3#..RHD197703-197811

sub53720-22080

main53720-22080iMX3#,RX3#,TX30..RHD197811-198008

53759BRACKET, FLEXIBLE HOSE MOUNTING, NO.1

main55101-22280iMX3#197612-198008

sub55101-22460

sub55161-22040

sub55164-22020

sub58369-30010

sub90179-06162

55101PANEL SUB-ASSY, DASH

main55101-22160iRX3#..RHD197612-197908

sub55101-22161

sub45253-22918

sub45253-22919

main55101-22161iRX3#..RHD197908-198008

sub55101-22460

sub55161-22040

sub55164-22020

sub55192-22040

sub90179-06162

sub90950-01061

main55101-22170iMX3#197612-197908

sub55101-22280

sub45253-22918

sub45253-22919

main55101-22200iRX3#..LHD..MTM197612-197808

sub55101-22370

sub45253-22917

sub45253-22920

sub90480-55005

main55101-22201iRX3#..LHD..MTM197808-197902

sub55101-22202

sub90480-55005

main55101-22202iRX3#..LHD..MTM197902-197908

sub55101-22203

sub45253-22917

sub45253-22920

main55101-22203iRX3#..LHD..MTM197908-198008

sub55101-22470

sub55113-22010

sub55161-22040

sub55164-22020

sub90179-06162

sub90950-01025

sub90950-01047

main55101-22220iRX3#..LHD..3FC197612-197902

sub55101-22221

sub90480-55005

main55101-22221iRX3#..LHD..3FC197902-197908

sub55101-22222

sub45253-22917

main55101-22222iRX3#..LHD..3FC197908-198008

sub55101-22470

sub55161-22040

sub55164-22020

sub90179-06162

sub90950-01025

sub90950-01047

main55101-22280iMX3#197908-198008

sub55101-22460

sub55161-22040

sub55164-22020

sub58369-30010

sub90179-06162

55113PLATE, CLUTCH PEDAL SUPPORT MOUNTING

main55113-22010iRX3#..LHD..MTM197612-198008

55161BRACKET, HEATER MOUNTING

main55161-22040iRX3#..LHD197612-198008

55185BRACE, DASH PANEL TO COWL

main55185-22030iRX3#..LHD..(DLX,GL)197808-198006

FOR TILT STEERING

55192BRACKET, FLEXIBLE HOSE, NO.2

main55101-22280iMX3#197612-198008

sub55101-22460

sub55161-22040

sub55164-22020

sub58369-30010

sub90179-06162

main55192-22040iRX3#..RHD197612-198008

57161CROSSMEMBER, FRONT

main57104-22050iMX3#,RX3#197612-197808

main57104-22051iMX3#,RX3#,TX30197808-198008

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57505-22010iMX3#,RX3#197612-197806

sub57505-22020

main57505-22020iMX3#,RX3#,TX30197806-198008

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57506-22010iMX3#,RX3#197612-197806

sub57506-22020

main57506-22020iMX3#,RX3#,TX30197806-198008

5805

9011906007

main90119-06007

9011906186

main90119-06186

9095001006

main90950-01006

9095001025

main90950-01025

9095001047

main90950-01047

9095001056

main90950-01056

9095001060

main90950-01060

9095001061

main90950-01061

9095001065

main90950-01065

9095001122

main90950-01122

9095001184

main90950-01184

9095001217

main90950-01217

9165140614

main91651-40614

9166140610

main91661-40610

9166140614

main91661-40614

31 parts on this diagram · 1 diagram in section
