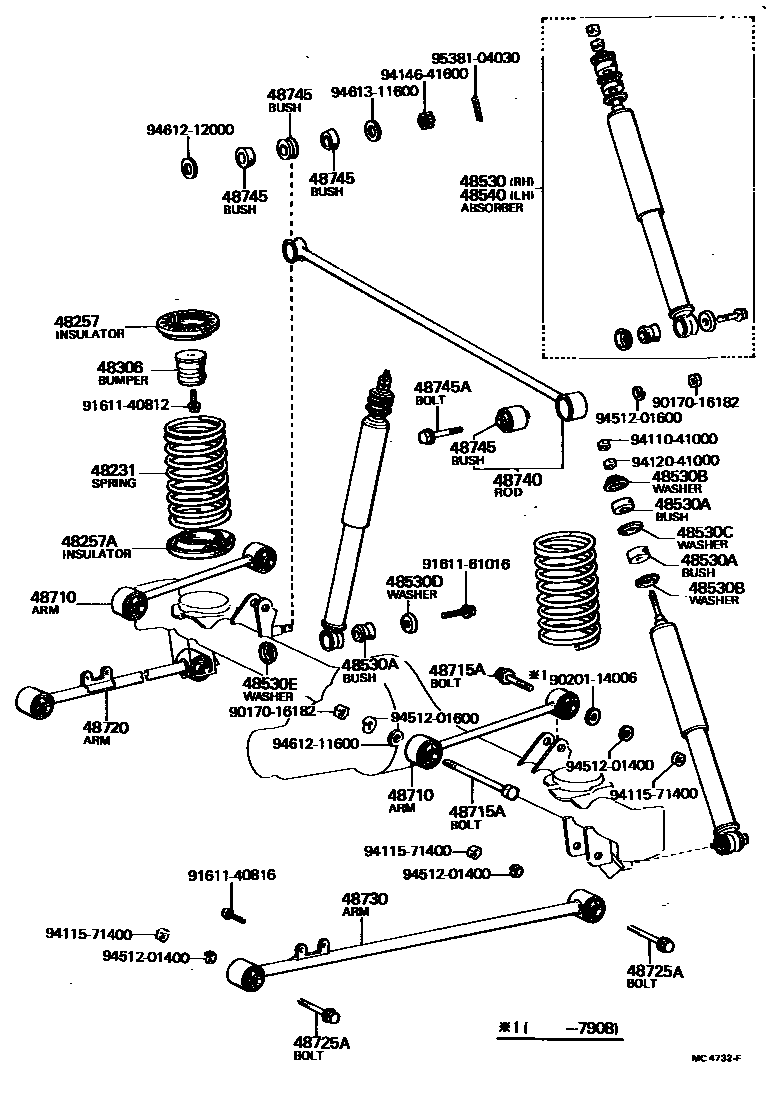

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
RH.
FOR RH.
AUSTRIA SPEC.
LH.
FOR LH.
48257INSULATOR, REAR COIL SPRING
48257AINSULATOR, REAR COIL SPRING, LOWER
sub48258-14030
48530ABSORBER ASSY, SHOCK, REAR RH
sub48531-23100
sub90385-16004
sub90540-10004
sub90948-01003
sub90948-02002
sub90948-02007
sub90948-03004
sub90948-03007
sub91611-61016
sub94110-41000
sub94120-41000
sub48531-29445
sub48531-29446
sub48531-23100
48530ABUSH(FOR REAR SHOCK ABSORBER)
ABSOBER X BODY(LOWER)
ABSOBER X BODY(UPPER)
ABSORBER X BODY
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48540ABSORBER ASSY, SHOCK, REAR LH
sub48531-23100
sub90385-16004
sub90540-10004
sub90948-01003
sub90948-02002
sub90948-02007
sub90948-03004
sub90948-03007
sub91611-61016
sub94110-41000
sub94120-41000
sub48531-29445
sub48531-29446
sub48531-23100
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
ARM X HOUSING,L=87
ARM X HOUSING,L=84
ARM X BODY,L=170
ARM X HOUSING,L=89.5
48720ARM ASSY, LOWER CONTROL, RH
48725ABOLT(FOR LOWER CONTROL ARM)
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
FRAME SIDE
L=15,HOUSING SIDE
L=12,HOUSING SIDE
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
9017016182
main90170-16182
9020114006
main90201-14006
9161140812
main91611-40812
9161140816
main91611-40816
9161161016
main91611-61016
9411041000
main94110-41000
9411571400
main94115-71400
9412041000
main94120-41000
9414641600
main94146-41600
9451201400
main94512-01400
9451201600
main94512-01600
9461211600
main94612-11600
9461212000
main94612-12000
9461311600
main94613-11600
9538104030
main95381-04030
34 parts on this diagram · 4 diagrams in section
