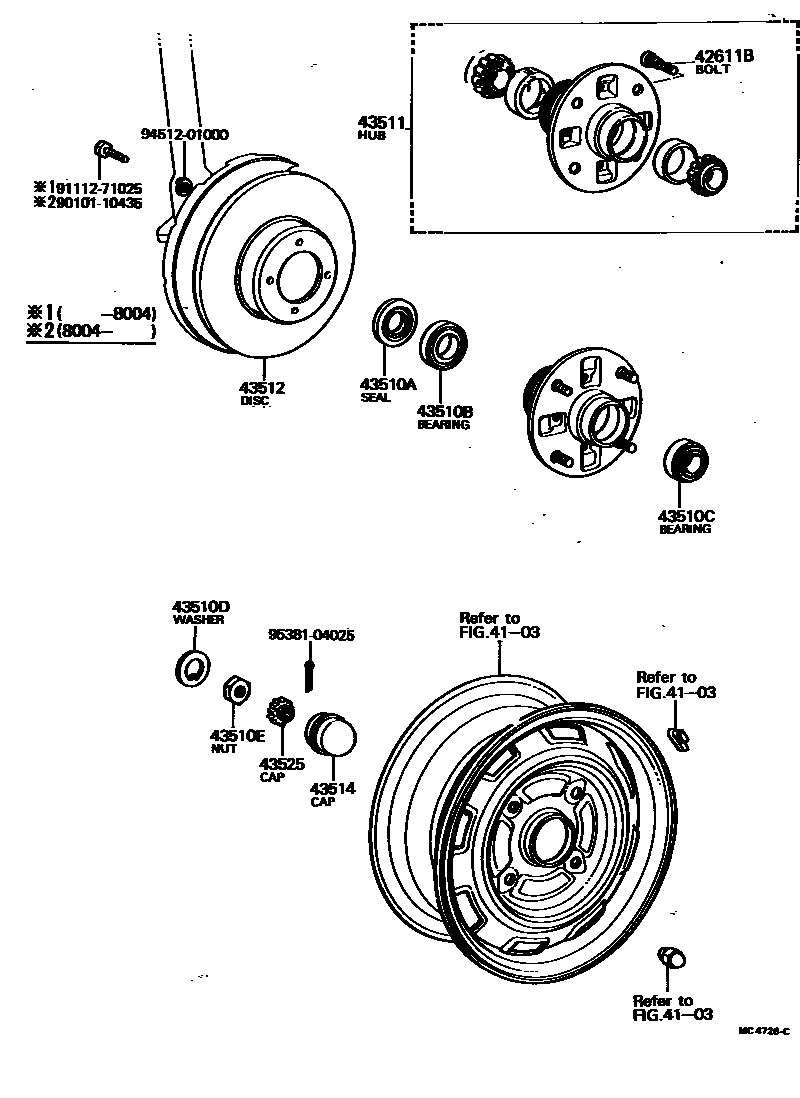

FRONT AXLE HUB

4103

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035iMX3#,RX3#,TX30197710-198008

sub90942-02047

main90942-02036iMX3#,RX3#197612-197710

sub90942-02048

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001iMX3#,RX3#,TX30197612-198008

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31036iMX3#,RX3#,TX30197612-198008

sub90368-31067

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037iMX3#,RX3#,TX30197612-198008

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iMX3#,RX3#,TX30197612-198008

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iMX3#,RX3#,TX30197612-198008

43511HUB, FRONT AXLE

main43502-29015iMX3#,RX3#,TX30197612-198008

sub43502-29035

43512DISC, FRONT

main43512-22030iMX3#,RX3#,TX30197811-198008

main43512-22040iMX3#,RX3#197612-197811

sub43512-22030

43514CAP, FRONT HUB GREASE

main43514-22020iMX3#,RX3#,TX30197612-198008

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iMX3#,RX3#,TX30197612-198008

9010110435

main90101-10435

9111271025

main91112-71025

9451201000

main94512-01000

9538104025

main95381-04025

15 parts on this diagram · 1 diagram in section
