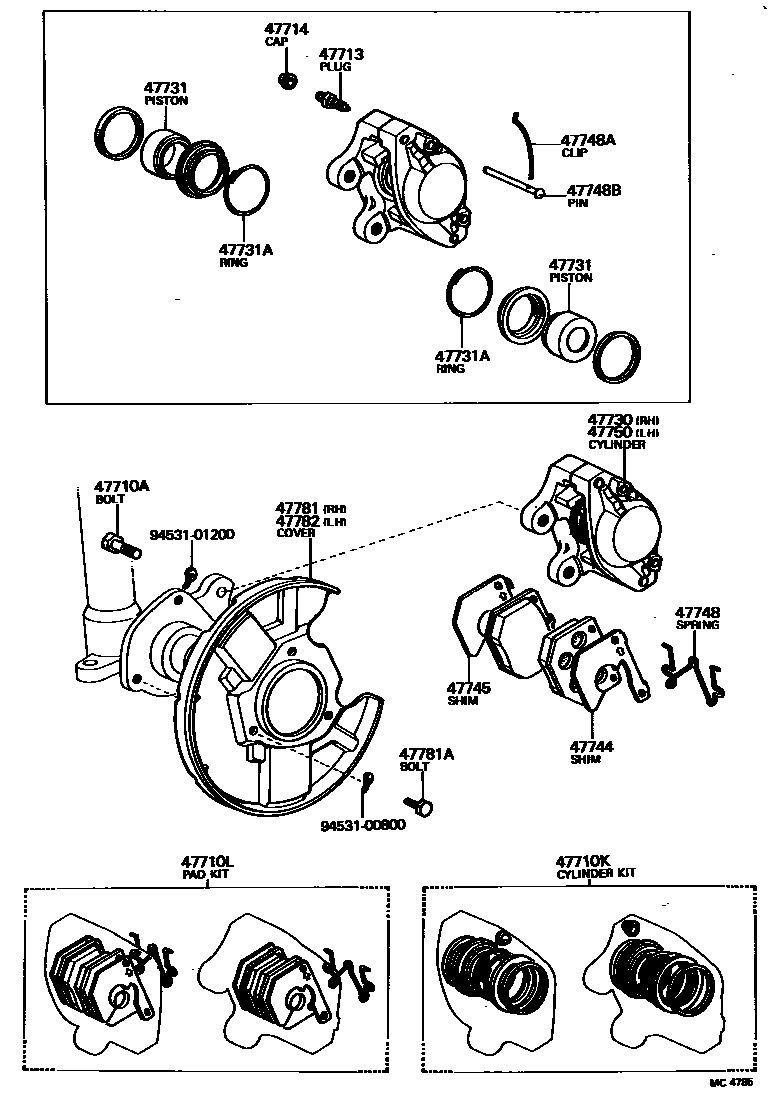

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12379iMX3#,RX3#,TX30197612-198008

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-30021iMX3#,RX3#,TX30197612-198008

sub04479-30022

47710LPAD KIT, DISC BRAKE, FRONT

main04491-22070iMX3#,RX3#197612-197910

sub04491-22071

main04491-22071iMX3#,RX3#197910-198008

sub04465-22170

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iMX3#,RX3#,TX30197612-198008

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMX3#,RX3#,TX30197612-198008

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20060iMX3#,RX3#,TX30197612-198008

sub47730-20130

47731PISTON, FRONT DISC BRAKE

main47731-20040iMX3#,RX3#,TX30197612-198008

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-58026iMX3#,RX3#,TX30197612-198008

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-30012iMX3#,RX3#,TX30197612-198008

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-30012iMX3#,RX3#,TX30197612-198008

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-30013iMX3#,RX3#,TX30197612-198008

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12002iMX3#,RX3#,TX30197612-198008

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06098iMX3#,RX3#,TX30197612-198008

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20050iMX3#,RX3#,TX30197612-198008

sub47750-20120

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22060iMX3#,RX3#,TX30197612-198008

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341iMX3#,RX3#,TX30197612-198008

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22060iMX3#,RX3#,TX30197612-198008

9453100800

main94531-00800

9453101200

main94531-01200

19 parts on this diagram · 2 diagrams in section
