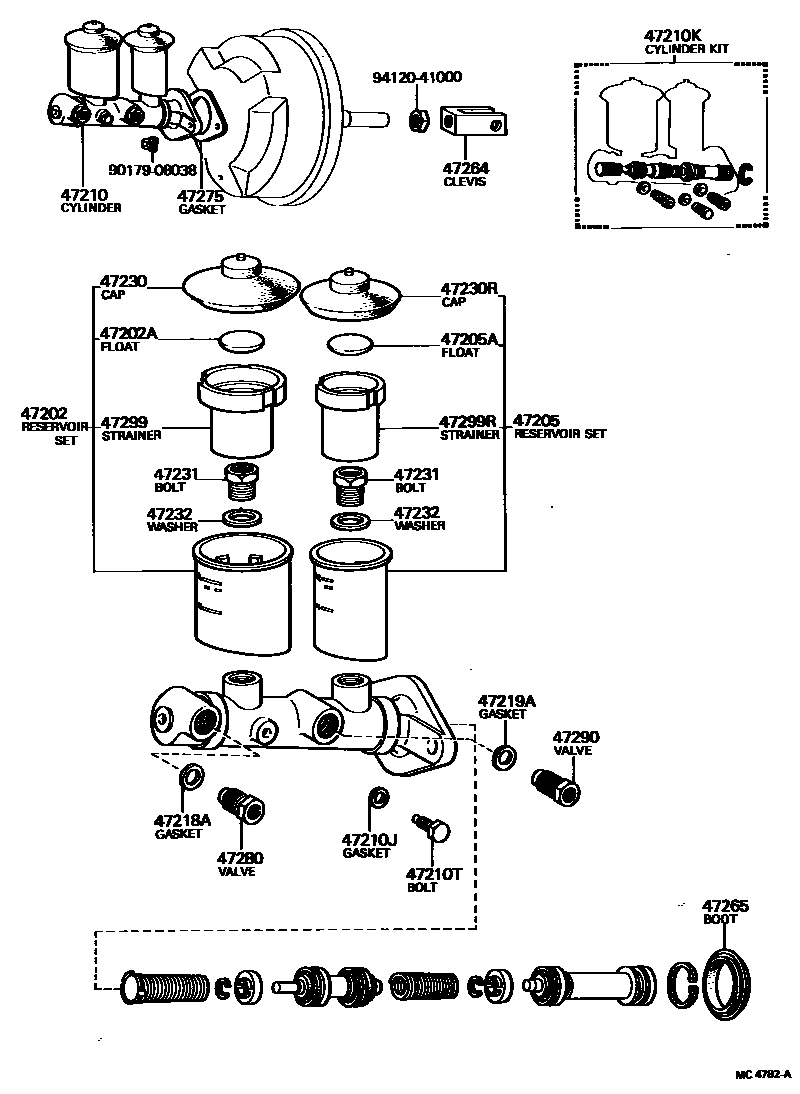

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20110iRX3#..GEN197612-197808

main47202-20130iRX3#..SDN197707-197808

main47202-22090iMX3#,RX3#..ARL,SA197612-197808

47202AFLOAT, MASTER CYLINDER RESERVOIR

main31426-20010iRX3#..EUR,GEN197612-197808

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-12260iRX30..SDN197908-198008

sub47202-14260

main47202-20121iRX3#..GEN197612-197808

main47202-20140iRX3#..SDN197707-197808

main47202-20180iMX3#,RX3#..ARL,SA197612-197808

main47202-20240iMX3#,RX3#,TX30..ARL,SA197808-198008

sub47202-14270

main47202-22130iRX3#..SDN197808-197908

main47202-35050iRX3#..GEN197808-198008

47205AFLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE)

main31426-20010iRX3#..EUR,GEN197612-198008

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-22280iRX3#..GEN197612-197808

sub47207-22100

sub31426-20010

sub47230-20030

sub47230-20040

main47201-22290iRX3#..EUG197612-197808

sub47207-22060

sub31426-20010

sub47230-20030

sub47230-20040

main47201-22300iMX3#,RX3#..ARL,SA197612-197808

sub47207-22060

sub84460-20051

sub84460-20061

main47201-22301iMX3#,RX3#,TX30..ARL,SA197808-198008

sub47207-22090

sub84460-20051

main47201-22310iRX3#..SDN197707-197808

main47201-22311iRX3#..SDN197808-197908

sub47207-22080

sub31426-20010

sub47230-20030

main47201-22312iRX30..SDN197908-198008

sub47207-22080

sub84460-12030

main47201-22330iRX3#..GEN197808-198008

sub47207-22070

sub31426-20010

sub47230-20030

main47201-22340iRX3#..EUG197808-198008

sub47207-22090

sub31426-20010

sub47230-20030

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iMX3#,RX3#,TX30197612-198008

47210KCYLINDER KIT, BRAKE MASTER

main04493-30030iMX3#,RX3#,TX30197612-198008

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iMX3#,RX3#,TX30197612-198008

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iMX3#,RX3#,TX30197612-198008

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iMX3#,RX3#,TX30197612-198008

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20030iRX3#..EUR,GEN197612-197808

main84460-20050iMX3#,RX3#..ARL,SA197612-197712

sub84460-20051

main84460-20051iMX3#,RX3#..ARL,SA197712-197808

sub84460-12011

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main47230-20030iRX3#..EUR,GEN197808-198008

main47230-20040iRX3#..EUR,GEN197612-197808

main84460-12030iRX30..SDN197908-198008

main84460-20051iMX3#,RX3#,TX30..ARL,SA197808-198008

sub84460-12011

main84460-20060iMX3#,RX3#..ARL,SA197612-197712

sub84460-20061

main84460-20061iMX3#,RX3#..ARL,SA197712-197808

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iRX3#..SDN197707-198008

main47231-30010iMX32,RX3#,TX30..GEN,SA197612-198008

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iMX32,RX3#..GEN,SA197612-198008

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12040iMX3#,RX3#,TX30197612-198008

47265BOOT, MASTER CYLINDER

main47265-20050iMX3#,RX3#,TX30197612-198008

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iRX3#..GEN197612-198008

sub47275-26010

main47275-22010iMX3#,RX3#,TX30..ARL,EUR,SA197612-198008

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iMX3#,RX3#,TX30197612-198008

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-30030iMX3#,RX3#,TX30197612-198008

sub47280-14010

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20010iMX3#,RX3#197612-197808

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-20010iMX3#,RX3#,TX30197808-198008

main47299-20020iMX3#,RX3#197612-197808

9017908038

main90179-08038

9412041000

main94120-41000
