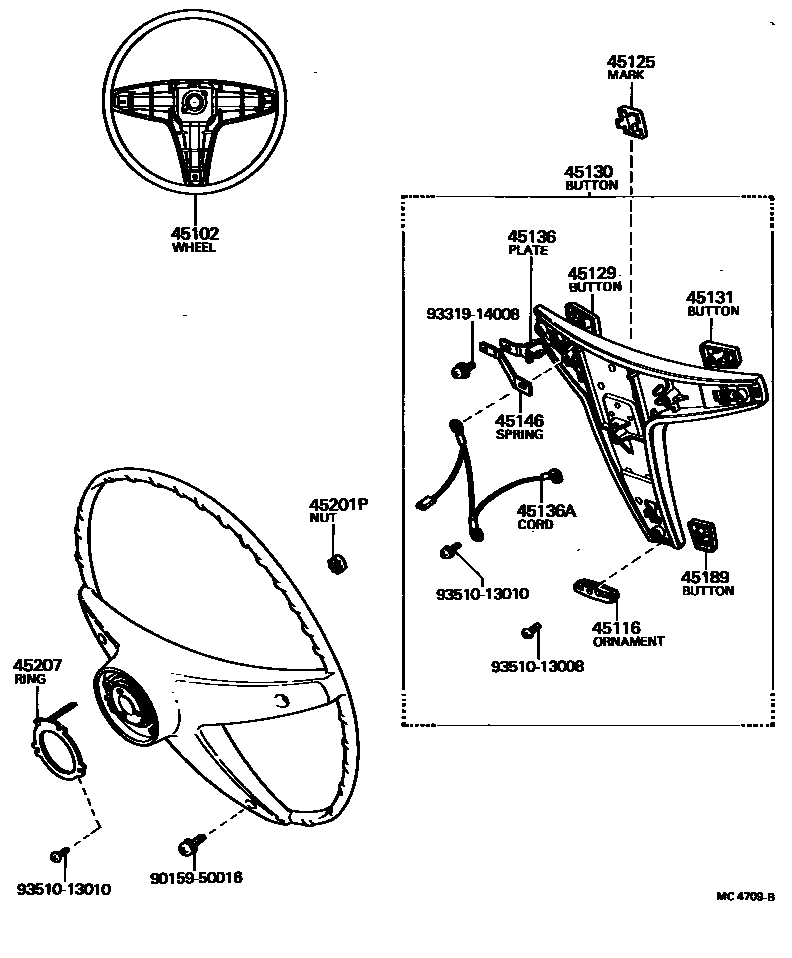

STEERING WHEEL

0001 1 0002 1 0003 1 0005 1

45102WHEEL SUB-ASSY, STEERING

main45100-14250-01iRX30..GL197808-198008

BLACK,BLACK,TRIM2#

main45100-14250-01iRX30..SED..LHD..4F..DLX..GEN197908-198008

BLACK,EXTRA INTERIOR,BLACK,TRIM2#

main45100-14250-02iRX30..SED..LHD..4F..DLX..GEN197908-198008

DARK WINE,EXTRA INTERIOR,RED/MAROON,TRIM3#

main45100-14250-02iRX30..GL197808-198008

DARK WINE,RED/MAROON,TRIM3#

main45100-14250-06iRX30..SED..LHD..4F..DLX..GEN197908-198008

BROWN,EXTRA INTERIOR,BROWN,TRIM4#

main45100-14250-06iRX30..GL197808-198008

BROWN,BROWN,TRIM4#

main45100-22110-01iRX3#,TX30..STD197612-198008

BLACK,BLACK,TRIM1#,2#

sub45100-22110

main45100-22110-02iRX3#,TX30..STD197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub45100-22110

main45100-22110-06iRX3#,TX30..STD197612-198008

BROWN,BROWN,TRIM4#

sub45100-22110

main45100-22120-01iMX3#,RX3#..DLX197612-198008

BLACK,BLACK,TRIM1#,2#

sub45100-22110

main45100-22120-02iMX3#,RX3#..DLX197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub45100-22110

main45100-22120-06iMX3#,RX3#..DLX197612-198008

BROWN,BROWN,TRIM4#

sub45100-22110

main45100-22130-01iMX32..SA197707-198001

BLACK,BLACK,TRIM2#

sub45100-22130

main45100-22130-02iMX32..SA197808-198001

DARK WINE,RED/MAROON,TRIM3#

sub45100-22130

main45100-22130-03iMX32..SA197707-197808

GRAY,GRAY,TRIM1#

sub45100-22130

main45100-22130-05iMX32..SA197707-198001

BEIGE,BEIGE,TRIM4#

sub45100-22130

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-22020-13iMX3#,RX3#..DLX,STD197612-197808

SILVER M.,GRAY

main45116-22020-23iMX3#,RX3#,TX30..DLX,STD197808-198008

SILVER,GRAY

main45116-22030-03iMX32..SA197707-197808

GRAY M.,GRAY

main45116-22030-13iMX32..SA197707-197808

SILVER M.,GRAY

main45116-22031iMX32..SA197808-198001

45125MARK, STEERING WHEEL PAD

main45125-22050iRX3#,TX30..STD197612-198008

main45125-22060-03iMX32..SA197707-197808

GRAY M.,GRAY

main45125-22060-13iMX32..SA197707-197808

SILVER M.,GRAY

main45125-22061iMX3#,RX3#..DLX,SDX197808-198008

main45125-22090iRX30..GL197808-198008

main45125-22090iRX30..SED..LHD..4F..DLX..GEN197908-198008

EXTRA INTERIOR

45129BUTTON, HORN, NO.2

main45129-14020iRX30..SED..LHD..4F..DLX..GEN197908-198008

EXTRA INTERIOR

main45129-14020iRX30..GL197808-198008

main45131-22060iMX3#,RX3#,TX30..DLX,SDX,STD197612-198008

45130BUTTON ASSY, HORN

main45130-22050-01iRX3#,TX30..STD197612-198008

BLACK,BLACK,TRIM2#

sub45130-22050

main45130-22050-02iRX3#,TX30..STD197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub45130-22050

main45130-22050-03iMX3#,RX3#..DLX,STD197612-197808

GRAY,GRAY,TRIM1#

sub45130-22050

main45130-22050-05iRX3#,TX30..STD197612-198008

BEIGE,BEIGE,TRIM4#

sub45130-22050

main45130-22060-01iMX32..SA197707-197808

BLACK,BLACK,TRIM2#

main45130-22060-03iMX32..SA197707-197808

GRAY,GRAY,TRIM1#

main45130-22060-05iMX32..SA197707-197808

BEIGE,BEIGE,TRIM4#

main45130-22061-01iMX32..SA197808-198001

BLACK,BLACK,TRIM2#

main45130-22061-02iMX32..SA197808-198001

DARK WINE,RED/MAROON,TRIM3#

main45130-22061-05iMX32..SA197808-198001

BEIGE,BEIGE,TRIM4#

main45130-22100-01iMX3#,RX3#..DLX197808-198008

BLACK,BLACK,TRIM2#

main45130-22100-02iMX3#,RX3#..DLX197808-198008

DARK WINE,RED/MAROON,TRIM3#

main45130-22100-05iMX3#,RX3#..DLX197808-198008

BEIGE,BEIGE,TRIM4#

45131BUTTON, HORN, NO.1

main45131-14070-01iRX30..SED..LHD..4F..DLX..GEN197908-198008

BLACK,EXTRA INTERIOR,BLACK,TRIM2#

sub45131-14070

main45131-14070-01iRX30..GL197808-198008

BLACK,BLACK,TRIM2#

sub45131-14070

main45131-14070-02iRX30..GL197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub45131-14070

main45131-14070-02iRX30..SED..LHD..4F..DLX..GEN197908-198008

DARK WINE,EXTRA INTERIOR,RED/MAROON,TRIM3#

sub45131-14070

main45131-14070-06iRX30..GL197808-198008

BROWN,BROWN,TRIM4#

sub45131-14070

main45131-14070-06iRX30..SED..LHD..4F..DLX..GEN197908-198008

BROWN,EXTRA INTERIOR,BROWN,TRIM4#

sub45131-14070

main45131-22060iMX3#,RX3#,TX30..DLX,SDX,STD197612-198008

45136PLATE, HORN BUTTON CONTACT

main45136-22040iMX3#,RX3#,TX30..DLX,SDX,STD197612-198008

45136ACORD(FOR HORN CONTACT RING)

main90945-02032iMX3#,RX3#,TX30..DLX,SDX,STD197612-198008

45146SPRING, HORN BUTTON CONTACT

main45146-22040iMX3#,RX3#,TX30..DLX,SDX,STD197612-198008

45189BUTTON, HORN, NO.3

main45131-22060iMX3#,RX3#,TX30..DLX,SDX,STD197612-198008

45201PNUT, STEERING WHEEL SET

main90179-12086iMX3#,RX3#,TX30197612-198008

45207RING, HORN CONTACT

main45176-14030iRX30..GL197808-198008

main45176-14030iRX30..SED..LHD..4F..DLX..GEN197908-198008

EXTRA INTERIOR

main45176-30030iMX3#,RX3#197612-198008

9015950016

main90159-50016

9331914008

main93319-14008

9351013008

main93510-13008

9351013010

main93510-13010

16 parts on this diagram · 4 diagrams in section
