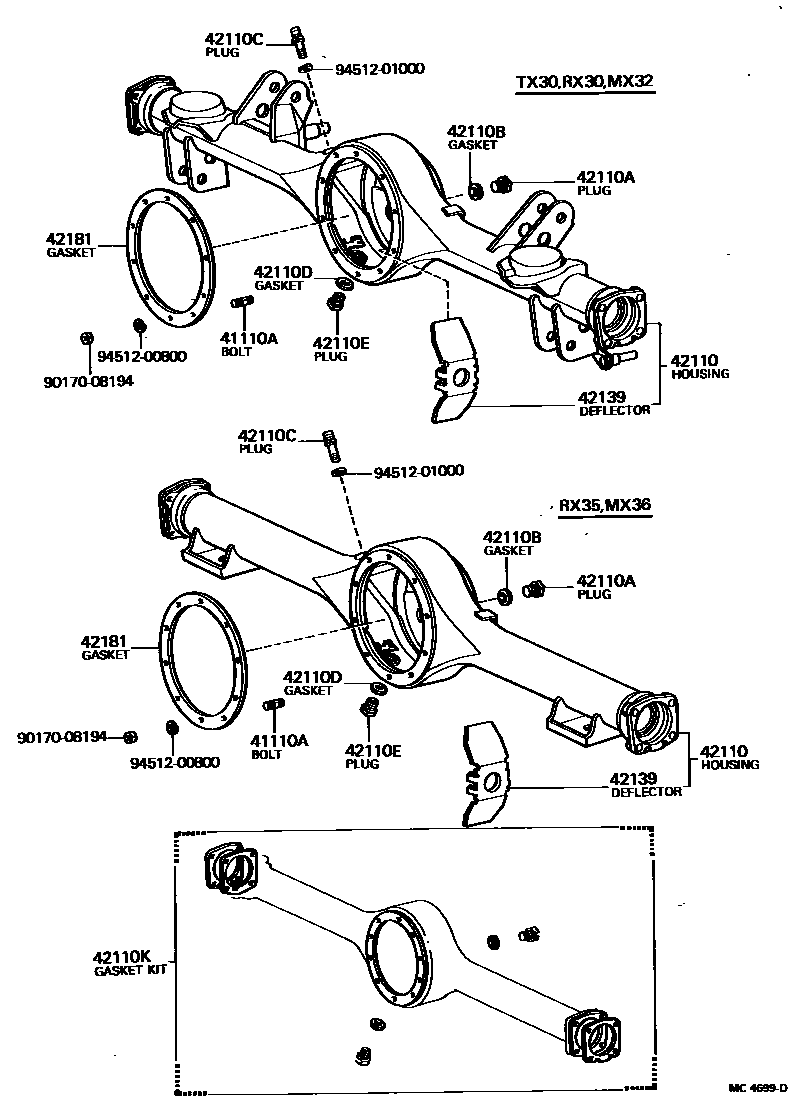

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-20251iMX3#,RX3#,TX30197612-198008

*FGR=43:11=3.909

sub41110-22240

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08235iMX3#,RX3#,TX30197612-198008

S=12 & 15,L=34

sub90116-08418

42110HOUSING ASSY, REAR AXLE

main42110-22080iMX32,RX30,TX30197612-198002

sub42110-22081

main42110-22081iMX32,RX30,TX30198002-198008

sub42110-22090

main42110-23040iMX36,RX35197612-198008

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iMX3#,RX3#,TX30197612-198008

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iMX3#,RX3#,TX30197612-198008

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03023iMX3#,RX3#,TX30197612-198008

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iMX3#,RX3#,TX30197612-198008

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iMX3#,RX3#,TX30197612-198008

42110KGASKET KIT, DIFFERENTIAL CARRIER

main04412-22050iMX3#,RX3#,TX30197612-198008

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iMX32,RX30,TX30198003-198008

main42139-22020iMX3#,RX3#,TX30197612-198008

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iMX3#,RX3#,TX30197612-198008

9017008194

main90170-08194

9451200800

main94512-00800

9451201000

main94512-01000

14 parts on this diagram · 2 diagrams in section
