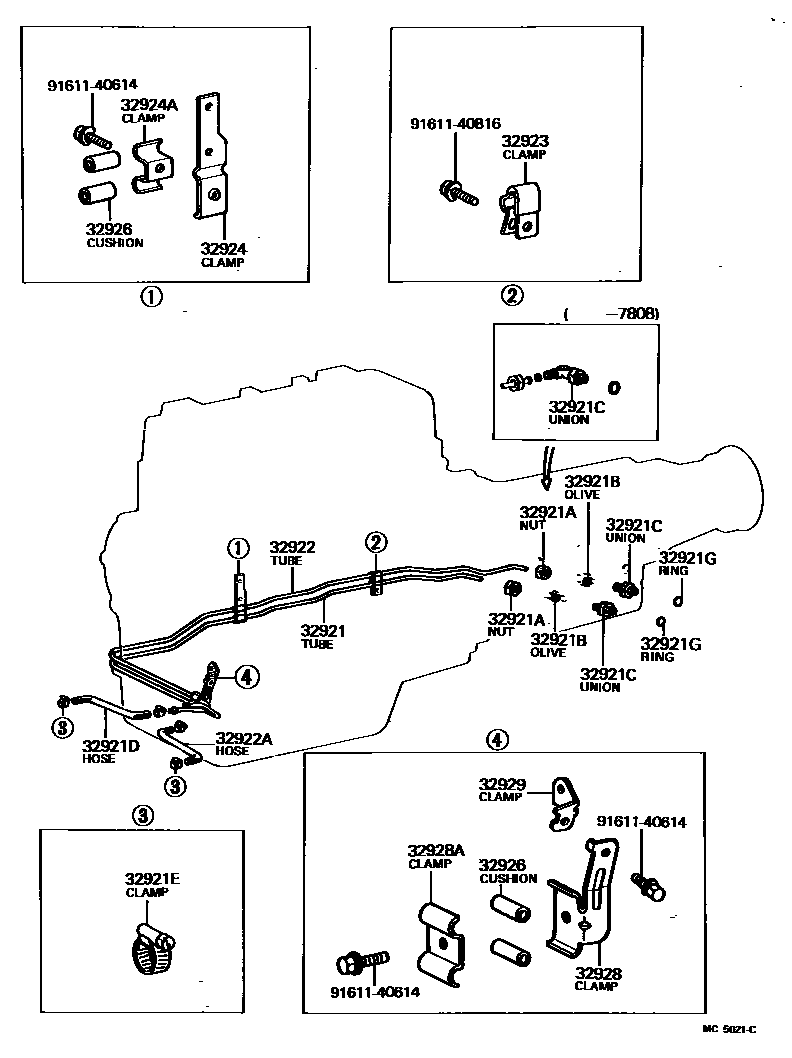

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-22031iRX3#..3FC197612-198008

main32921-22050iMX3#..3FC197612-197708

main32921-22070iTX30..3FC198001-198008

main32921-22081iMX3#..3FC197708-198002

main32921-22082iMX3#..3FC198002-198008

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041×2iMX3#,RX3#,TX30..3FC197612-198008

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400×2iMX3#,RX3#,TX30..3FC197612-198008

32921CUNION(FOR OIL COOLER TUBE)

main90404-13265iRX3#,TX30..3FC197802-198008

FOR INLET

main90407-13002iMX3#..3FC197909-198008

FOR OUTLET

main90407-13060iMX3#..3FC197802-197909

FOR OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-14025iRX3#..3FC197612-198008

L=360

sub90445-14514

main90445-14259iTX30..3FC198001-198008

L=230

main90445-14526iMX3#..3FC197612-198008

L=210

sub90445-14514

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085×4iMX3#,RX3#,TX30..3FC197612-198008

sub90460-20004

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iMX3#,RX3#,TX30..3FC197612-198008

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20060iRX3#..3FC197612-197802

main32922-22050iMX3#..3FC197612-197708

main32922-22081iMX3#..3FC197708-198002

main32922-22082iMX3#..3FC198002-198008

main32922-22090iTX30..3FC198001-198008

main32922-35030iRX3#..3FC197802-198008

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-14025iRX3#..3FC197612-198008

L=360

sub90445-14514

main90445-14274iTX30..3FC198001-198008

L=290

sub90445-14514

main90445-14407iMX3#..3FC197612-198008

L=180

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20022iRX3#..3FC197612-198008

main90461-08039iTX30..3FC198001-198008

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-14010iTX30..3FC198001-198008

main32924-22010iMX3#..3FC197612-197708

main32924-22021iMX3#..3FC197708-198002

main32924-22040iMX3#..3FC198002-198008

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-30060iMX3#..3FC198002-198008

main90461-08607iMX3#..3FC197612-198002

main90462-12085iTX30..3FC198001-198008

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011×2iMX3#..3FC197612-198008

L=25,ID=8

32928CLAMP, FLEXIBLE HOSE, NO.1

main15781-41010iMX3#197612-198008

main32928-20050iRX3#..3FC197612-198008

main32928-22011iTX30..3FC198001-198008

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-08049iRX3#..3FC197612-198008

main90462-10019iMX3#197612-198008

main90462-12085iTX30..3FC198001-198008

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-20030iRX3#..3FC197612-198008

main32929-22010iTX30..3FC198001-198008

9161140614

main91611-40614

9161140816

main91611-40816
