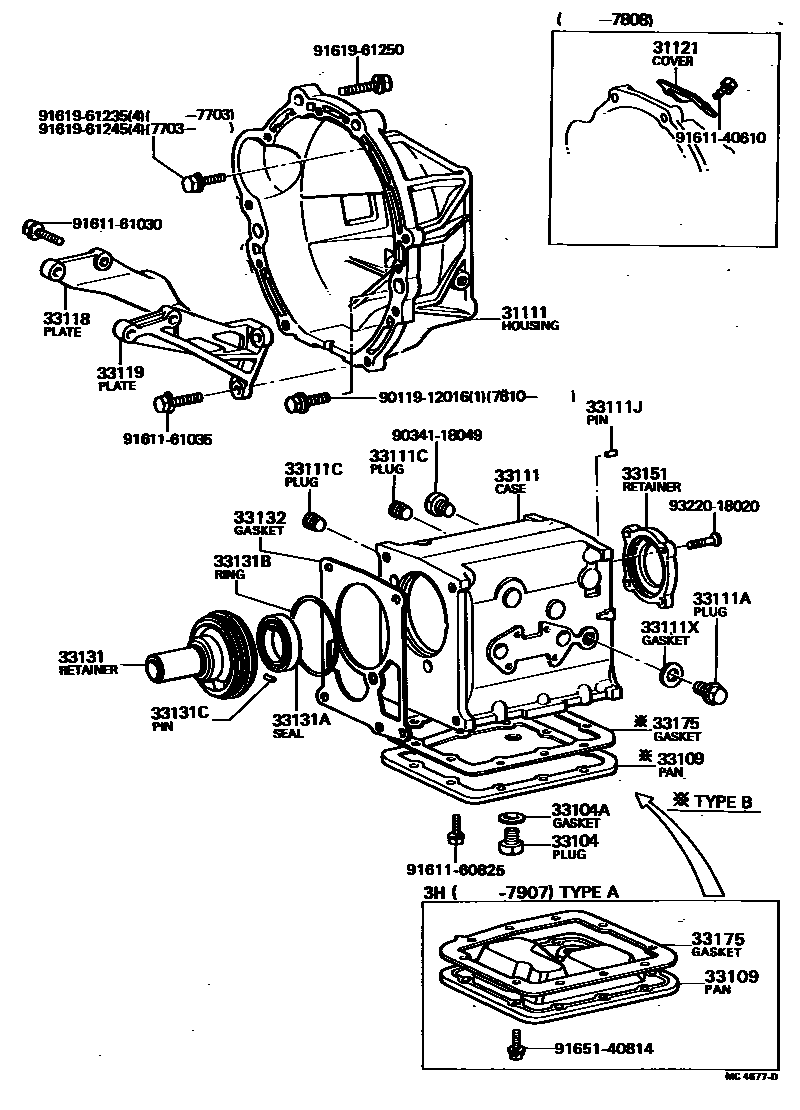

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1

31111HOUSING, CLUTCH

main31111-20050iRX3#..4F,5F197612-197808

sub31111-20090

main31111-20060iTX30..4F198001-198008

sub31111-20190

sub11355-25012

sub91611-61060

sub94110-51000

main31111-20080iRX3#..3H197612-197705

sub31111-20081

sub91619-61245

main31111-20120iRX3#..3H197705-198008

sub31111-20110

main31111-22070iMX3#..4F197612-197802

sub31111-22071

main31111-22071iMX3#..4F197802-198008

31121COVER, CLUTCH HOUSING, NO.1

main31121-30030iRX3#..3H197612-197808

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iMX3#,RX3#,TX30..MTM197612-198008

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iMX3#,RX3#,TX30..MTM197612-198008

33109PAN SUB-ASSY, TRANSMISSION OIL(MTM)

main33109-30010iRX3#..3H197612-197907

TYPE A

sub33171-30020

sub33175-30020

sub91611-60825

main33171-30020iRX3#..3H197907-198008

TYPE B

33111CASE, MANUAL TRANSMISSION

main33101-20010iMX3#,RX3#..4F,5F197612-197901

sub33101-20011

main33101-20011iMX3#,RX3#,TX30..4F,5F197901-198008

sub33101-30021

main33111-30061iRX3#..RHD..3H197612-197902

sub33111-30062

sub33132-20050

sub90119-12016

main33111-30062iRX3#..RHD..3H197902-198008

main33111-30080iRX3#..LHD..3H197612-197902

sub33111-30081

sub33132-20050

sub90119-12016

main33111-30081iRX3#..LHD..3H197902-198008

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iMX3#,RX3#,TX30..MTM197612-198008

33111CPLUG(FOR TRANSMISSION CASE)

main90331-20044iMX3#,RX3#,TX30..4F,5F197612-198008

main90344-53015iRX3#..3H197612-198008

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12195iMX3#,RX3#,TX30..4F,5F197612-198008

OD=12,L=39

main90250-12216iRX3#..3H197612-198008

L=14,OD=12

main90334-06017iMX3#,RX3#,TX30..4F,5F197612-198008

OD=6,L=11

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iMX3#,RX3#,TX30..MTM197612-198008

33118PLATE, STIFFENER, RH(MTM)

main33118-14010iTX30..4F198001-198008

main33118-22030iRX3#..MTM197612-198008

main33118-22040iMX3#..4F197612-198008

33119PLATE, STIFFENER, LH(MTM)

main33119-14040iTX30..4F198001-198008

main33119-22020iRX3#..MTM197612-197809

sub33119-22021

main33119-22021iRX3#..MTM197809-198008

sub33119-22022

main33119-22030iMX3#..4F197612-198008

33131RETAINER, BEARING, FRONT(MTM)

main33131-30040iRX3#..3H197612-198008

main33131-31010iRX3#,TX30..4F,5F197612-198008

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iMX3#,RX3#,TX30..4F,5F197612-198008

main90311-32106iRX3#..3H197612-198008

33131BRING, O(FOR TRANSMISSION FRONT BEARING RETAINER)

main90301-99003iRX3#..3H197612-198008

sub90301-99014

33131CPIN, SLOTTED SPRING(FOR TRANSMISSION FRONT BEARING RETAINER)

main90254-05005iRX3#..3H197612-198008

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-20040iMX3#,RX3#,TX30..4F,5F197612-198008

main33132-20050iRX3#..3H197902-198008

main33132-30040iRX3#..3H197612-197902

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-20010iRX3#..5F197612-198008

main33151-30030iRX3#..3H197612-198008

main33151-31010iMX3#,RX3#,TX30..4F197612-198008

33175GASKET, MANUAL TRANSMISSION OIL PAN

main33175-30010iRX3#..3H197612-197907

TYPE A

main33175-30020iRX3#..3H197907-198008

TYPE B

9011912016

main90119-12016

9034118049

main90341-18049

9161140610

main91611-40610

9161160825

main91611-60825

9161161030

main91611-61030

9161161035

main91611-61035

9161961235

main91619-61235

9161961245

main91619-61245

9161961250

main91619-61250

9165140814

main91651-40814

9322018020

main93220-18020

30 parts on this diagram · 4 diagrams in section
