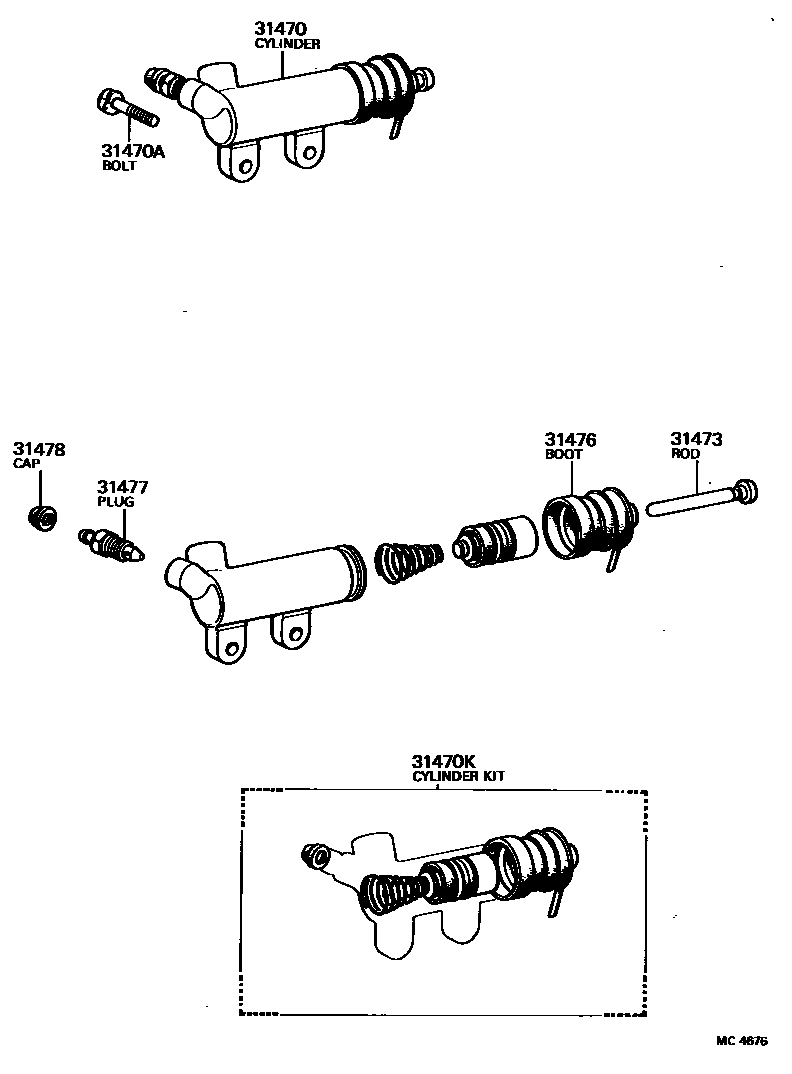

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20150iRX3#..MTM197808-198008

sub31470-20151

main31470-22030iRX3#..MTM197612-197808

sub31470-14030

main31470-22050iTX30..4F198001-198008

sub31470-22051

main31470-22060iMX3#..4F197708-198008

sub31470-22080

main31470-30160iMX3#..4F197612-197708

sub31470-30240

sub31470-30250

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iMX3#,RX3#,TX30..MTM197612-198008

*8-1.25PX25-25

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-30100iMX3#,RX3#,TX30..MTM197612-198008

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iMX3#..4F197708-198008

main31473-20030iRX3#..MTM197808-198008

main31473-30040iTX30..4F198001-198008

main31473-30050iMX3#,RX3#..MTM197612-197808

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-30040iMX3#,RX3#,TX30..MTM197612-198008

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iMX3#,RX3#,TX30..MTM197612-198008

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iMX3#,RX3#,TX30..MTM197612-198008

7 parts on this diagram · 2 diagrams in section
