FUEL PIPE & CLAMP

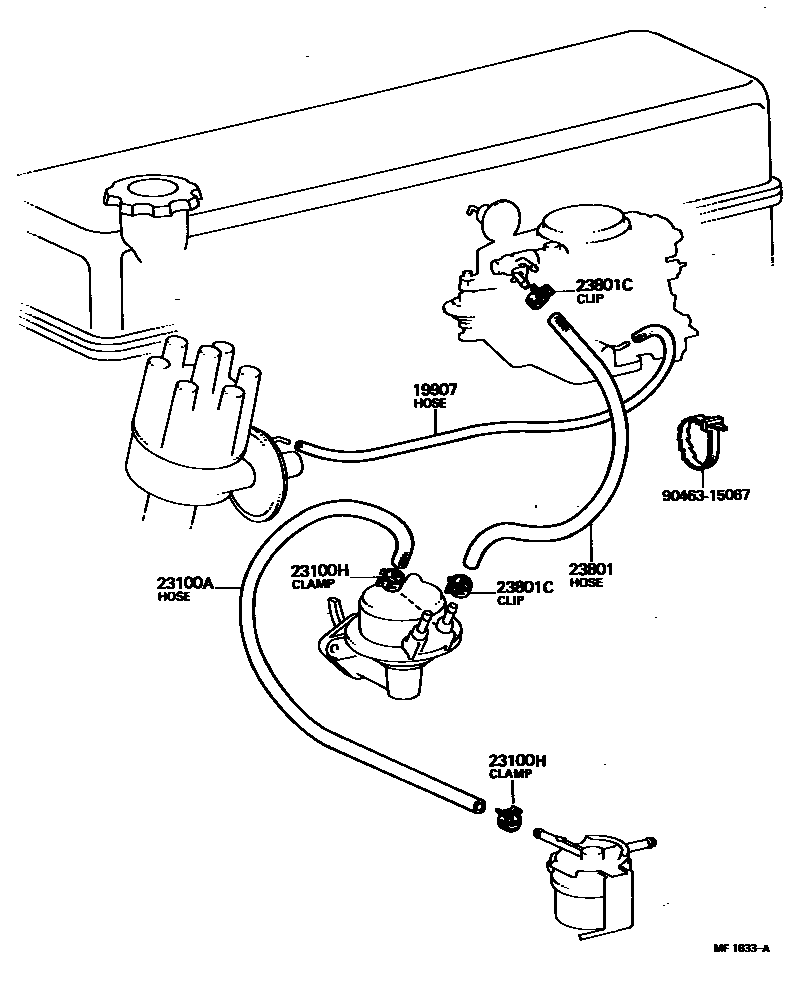

Parts diagram
19907HOSE, VACUUM, NO.1
main95411-19960i197707-198008
H,L=330
sub90999-92003
23100AHOSE, FUEL
main95331-06030i197612-197704
L=300
sub95332-06030
main95331-08030i197612-197704
L=300
sub95332-08030
main95332-06030i197704-198008
L=300
sub95333-06030
main95332-06030i198001-198008
H,L=260
sub95333-06030
main95332-08030i197704-198008
L=300
sub95333-08030
23100HCLIP(FOR FUEL HOSE)
main96132-30600i197612-198008
sub96132-51100
main96132-30800i197612-198008
sub96132-51300
23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
main23811-34031i197612-197908
main23811-34041i197907-198008
main95331-08034i197612-197704
*H,L=340
sub95332-08034
main95332-06030i198001-198008
L=300
sub95333-06030
main95332-08034i197704-197904
L=400(*H,L=340)
sub95332-08040
main95332-08040i197904-198008
L=400(*H,L=340)
sub95333-08040
23801CCLIP(FOR CARBURETOR FUEL HOSE)
main96132-30600i198001-198008
sub96132-51100
main96132-30800i197612-198008
sub96132-51300
9046315067
main90463-15067

6 parts on this diagram · 3 diagrams in section
