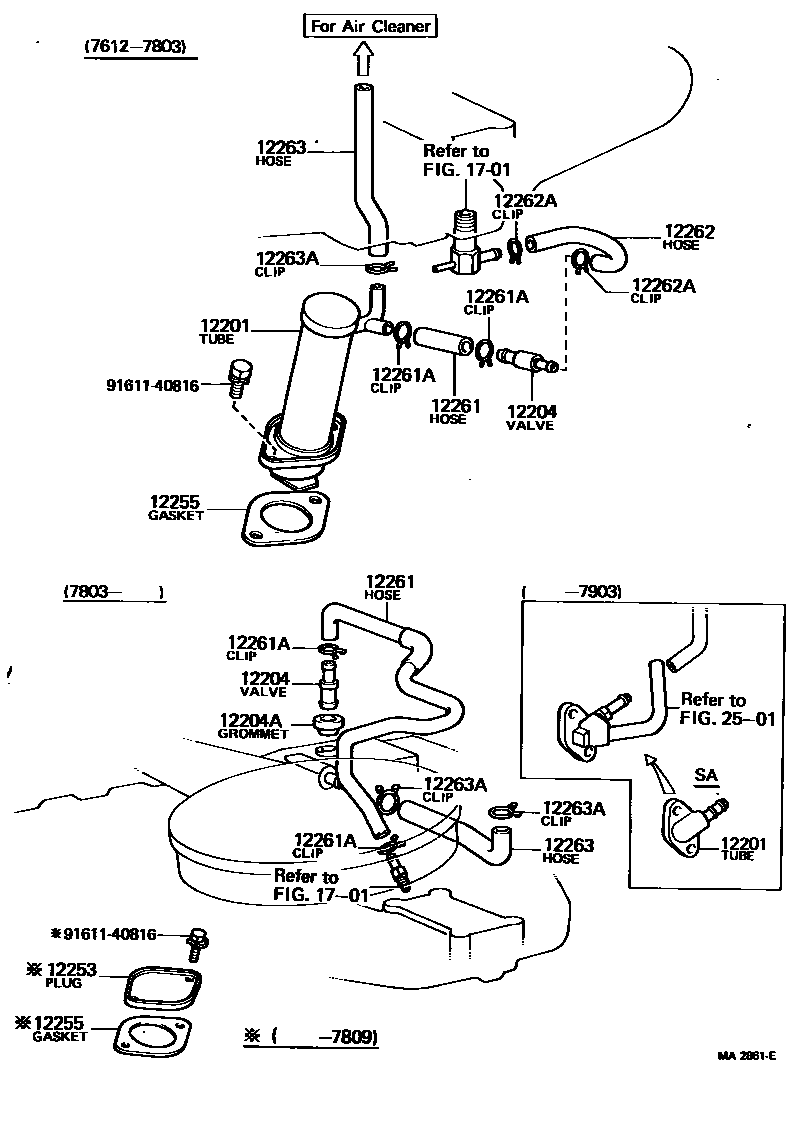

VENTILATION HOSE

0001 1 0002 1

12201TUBE SUB-ASSY, VENTILATION

main12201-41050i4M..MX32..SA197803-197903

main12201-45010i4M..MX3#197612-197803

12204VALVE SUB-ASSY, VENTILATION

main12204-15020i3T..TX30197908-198008

sub12204-28010

main12204-31020i4M..MX3#197612-197803

main12204-34010i18R#..RX3#197612-197908

sub12204-28010

sub12204-35010

main12204-41010i4M..MX3#197803-197908

main12204-45010i4M..MX3#197908-198008

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18180i18R#..RX3#197612-198008

12253PLUG, VENTILATION HOLE

main11495-41020i4M..MX3#197803-197809

12255GASKET, VENTILATION

main12255-41010i4M..MX3#197612-197809

12261HOSE, VENTILATION

main12261-41060i4M..MX3#197803-197903

main12261-41070i4M..MX3#197903-198008

main90445-20004i4M..MX3#197612-197803

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-16035i4M..MX3#197803-198008

ID=16

main90467-19122i4M..MX3#197704-197803

ID=18.5

main90467-20020i4M..MX3#197612-197704

ID=19

12262HOSE, VENTILATION, NO.2

main12261-25012i3T..TX30198001-198008

main12261-34070i18R#..RX3#197612-197908

sub12261-34080

main12261-34080i18R#..RX3#197908-198008

main12261-45010i4M..MX3#197612-197803

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16010i3T..TX30197612-198008

ID=15.5

main90467-16035i4M..MX3#197704-197803

ID=16

12263HOSE, VENTILATION, NO.3

main12262-25010i3T..TX30198001-198008

main12262-34020i18R#..RX3#197612-198008

main12262-41060i4M..MX3#197803-198008

main90910-05104i4M..MX3#197612-197803

12263ACLIP(FOR VENTILATION HOSE)

main90467-19122i4M..MX3#197704-197803

ID=18.5

main90467-20002i4M..MX3#197803-198008

ID=20

main90467-20020i18R#..RX3#197612-198008

ID=19

1701

2501

9161140816

main91611-40816

14 parts on this diagram · 2 diagrams in section
