AIR BAG

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-WAA01iDB0#,2#,4#,85202207

POP UP HOOD-WITH

72218MAGNET, SEAT POSITION SENSOR

main72218-WAA01iDB0#,2#,46202207

ITALY SPEC&SEAT ADJUSTER-MANUAL SEAT&SRS AIR BAG-WITH

89170ACOMPUTER ASSY, AIRBAG

main89170-WAA15iDB05,25,45,85202207-202211

main89170-WAA20iDB05,25,45,85202212-202403

main89170-WAA24iDB05,25,45,85202404

main89170-WAA16iDB0#,2#,4#,85202207-202211

SWITZERLAND SPEC&AVS-WITHOUT

main89170-WAA17iDB0#,2#,4#,85202207-202403

AVS-WITH

main89170-WAA18iDB0#,2#,4#,85202212-202403

SWITZERLAND SPEC&AVS-WITHOUT

main89170-WAA19iDB0#,26,45,85202207-202403

JAPAN SPEC&AVS-WITHOUT

main89170-WAA21iDB0#,2#,4#,85202404

AVS-WITH

main89170-WAA22iDB0#,2#,4#,85202404

SWITZERLAND SPEC&AVS-WITHOUT

main89170-WAA23iDB0#,26,45,85202404

JAPAN SPEC&AVS-WITHOUT

89173SENSOR, AIRBAG, FRONT

main89190-WAA03×2iDB0#,2#,4#,85202207

89174SENSOR, AIRBAG

main89190-WAA03×2iDB25202207

main89190-WAA04×2iDB05202207

KOREA SPEC

89178ASENSOR, SEAT POSITION AIRBAG

main89178-WAA03iDB06,46202207

JAPAN SPEC&SEAT ADJUSTER-MANUAL SEAT

89178BSENSOR, SEAT POSITION AIRBAG, NO.2

main89178-WAA04iDB45202207

ITALY SPEC&SEAT ADJUSTER-MANUAL SEAT&SRS AIR BAG-WITH

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-WAA02×2iDB0#,2#,4#,85202207

90118WA220

main90118-WA220

90118WA499

main90118-WA499

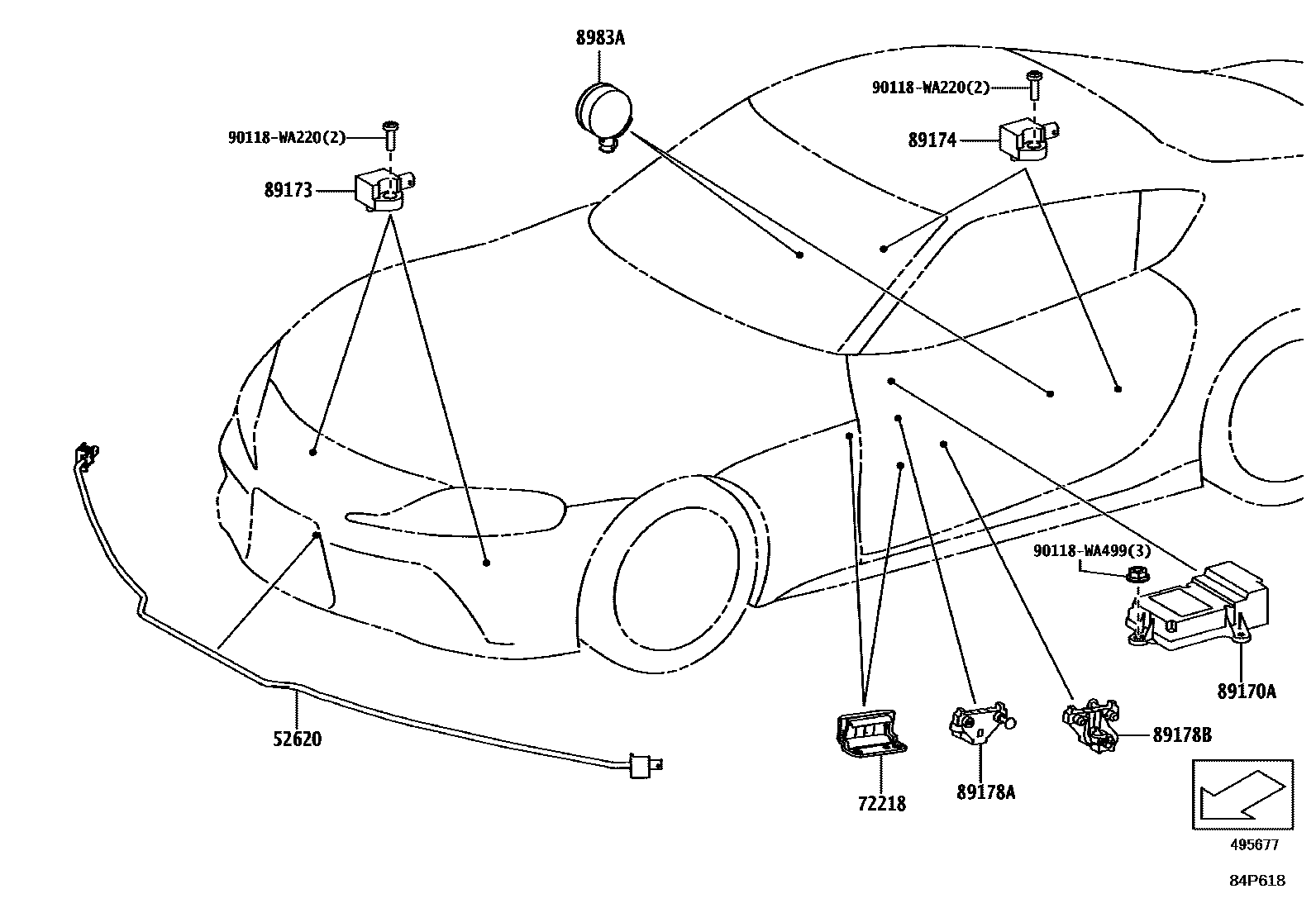

10 parts on this diagram · 1 diagram in section
