ELECTRONIC MODULATED SUSPENSION

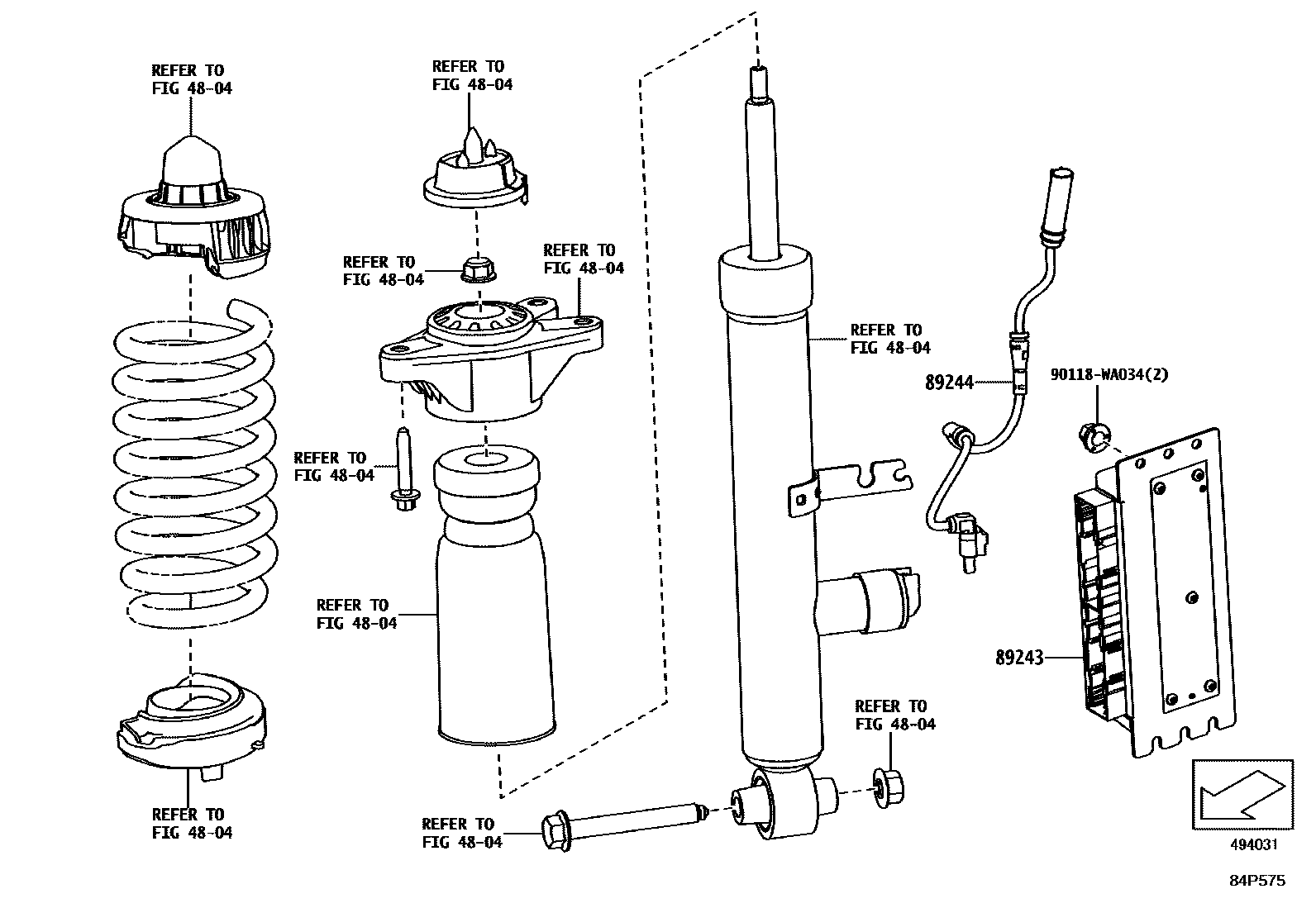

Parts diagram

4804

89243COMPUTER, ABSORBER CONTROL

main89243-WAA02i202207

AVS-WITH

89244WIRE, ABSORBER CONTROL, REAR

main89244-WAA01i202207

AVS-WITH

90118WA034

main90118-WA034

4 parts on this diagram · 1 diagram in section
