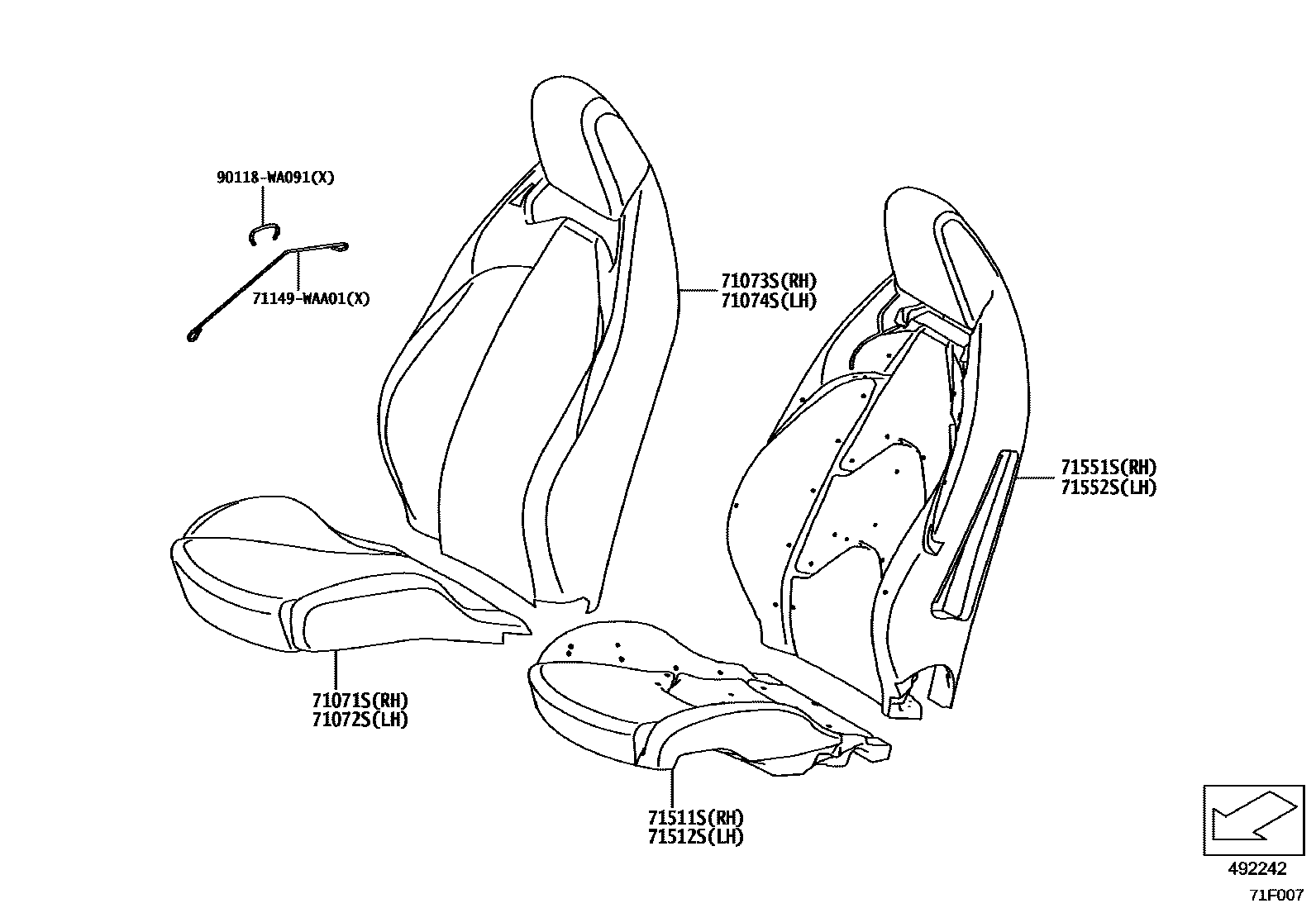

FRONT SEAT & SEAT TRACK

0001 1 0002 1SPORTS SEAT 0003 1 0004 1 0005 1 0006 1 0007 1SEAT ADJUSTER:POWER TYPE 0008 1 0009 1 0010 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-WAA05iDB0#,2#,4#,85202207

TRIM20

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-WAA05iDB0#,2#,4#,85202207

TRIM20

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-WAA08iDB0#,2#,4#,85202207

TRIM20

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-WAA08iDB0#,2#,4#,85202207

TRIM20

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-WAA02iDB0#,2#,4#,85202207

SEAT ADJUSTER-POWER SEAT

main71511-WAA03iDB0#,2#,4#,85202207

main71511-WAA04iDB0#,2#,4#,85202207

####

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-WAA03iDB0#,2#,4#,85202207

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-WAA02iDB0#,2#,4#,85202207

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-WAA02iDB0#,2#,4#,85202207

71149WAA01WIRE, FRONT SEAT CUSHION CONNECTING

main71149-WAA01

90118WA091

main90118-WA091

10 parts on this diagram · 10 diagrams in section
