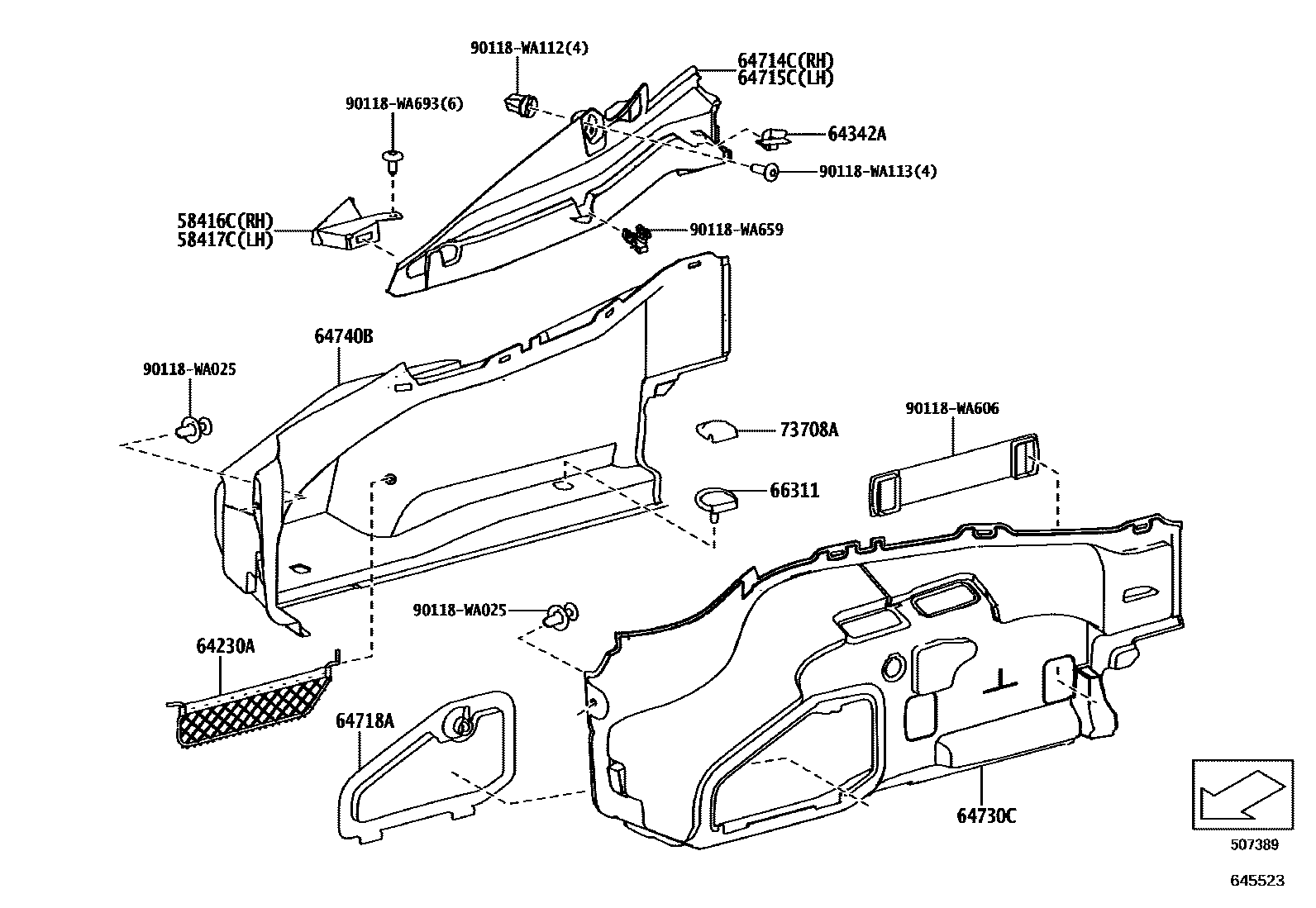

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

58416CBRACKET, DECK BOARD, NO.1 RH

main58416-WAA01iDB0#,2#,4#,85¥2,610202207

58417CBRACKET, DECK BOARD, NO.1 LH

main58417-WAA02iDB0#,2#,4#,85¥2,610202207

64230ANET ASSY, ROOM PARTITION

64342ACLIP

main90118-WA660iDB0#,2#,4#,85¥160202207

LH

main90118-WA661iDB0#,2#,4#,85¥160202207

RH

64714CCOVER, DECK SIDE TRIM, RH

main64714-WAA01iDB0#,2#,4#,85¥17,200202207

64715CCOVER, DECK SIDE TRIM, LH

main64715-WAA01iDB0#,2#,4#,85¥17,200202207

64718ACOVER, DECK TRIM SERVICE HOLE

64730CBOARD, DECK TRIM SIDE, RH

64740BBOARD, DECK TRIM SIDE, LH

66311HOOK, ROPE

main66311-WAA01¥2,000

73708ABRACKET SET, TETHER ANCHOR

90118WA025

main90118-WA025¥240

90118WA112

main90118-WA112¥330

90118WA113

main90118-WA113¥270

90118WA606

main90118-WA606¥1,890

90118WA659

main90118-WA659¥500

90118WA693

main90118-WA693¥280

17 parts on this diagram · 6 diagrams in section
