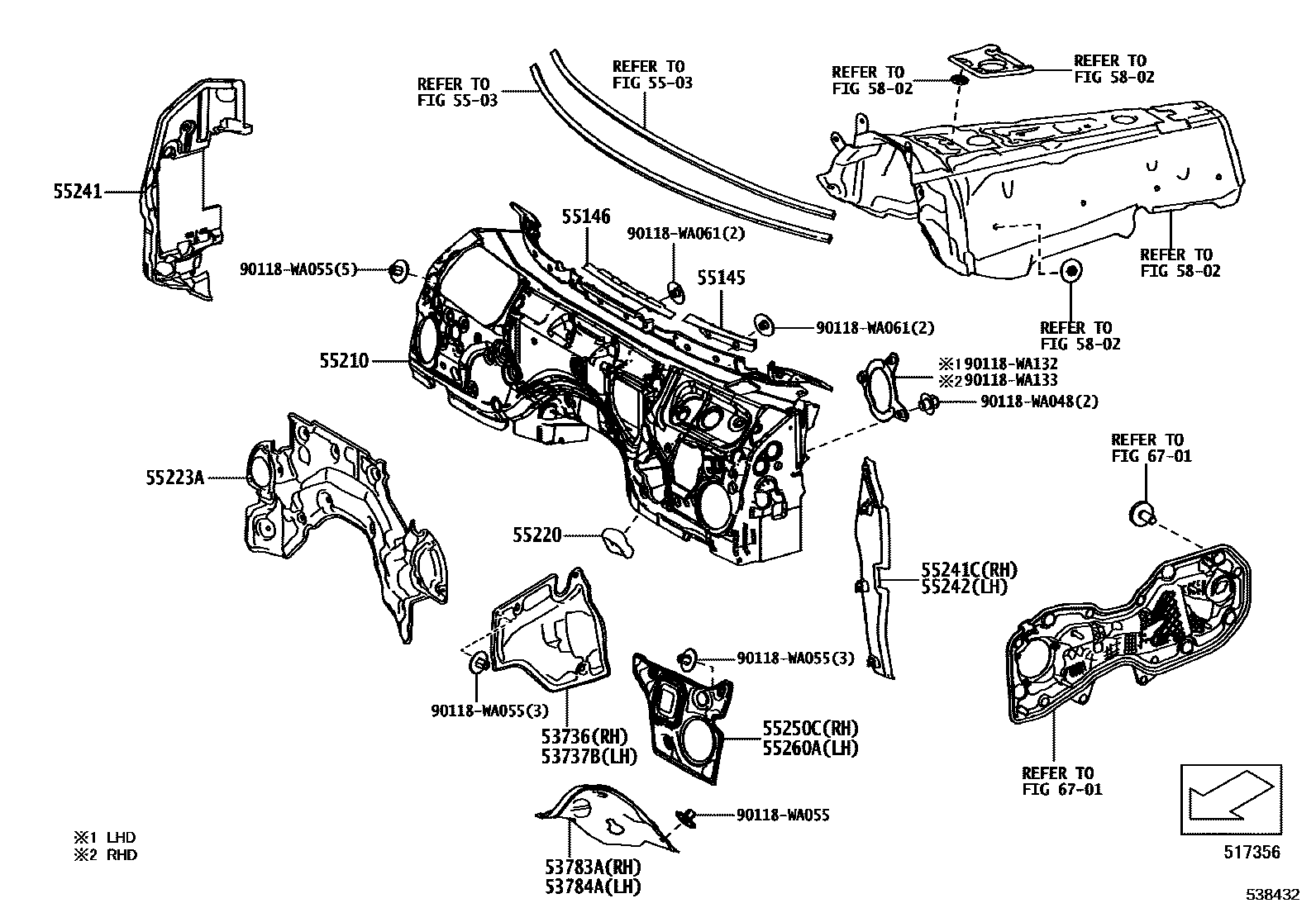

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

53736SEAL, FRONT FENDER APRON, RH

main53781-WAA01iDB0#,2#,4#,85202207

53737BSEAL, FRONT FENDER APRON, LH

main53782-WAA01iDB0#,2#,4#,85202207

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-WAA01iDB0#,2#,4#,85202207

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-WAA01iDB0#,2#,4#,85202207

5503

55145PLATE, DASH PANEL HEAT INSULATOR

main55145-WAA02iDB0#,2#,4#,85202207

LH

main55145-WAA03iDB0#,2#,4#,85202207

RH

55146INSULATOR, DASH PANEL HEAT

main55145-WAA01iDB0#,2#,4#,85202207

55210INSULATOR ASSY, DASH PANEL

main55210-WAA01iDB05,25,45,85202207

main55210-WAA02iDB06,26,46202207

55220INSULATOR ASSY, DASH PANEL, NO.2

main53783-WAA02iDB05,25,45,85202207

main53783-WAA03iDB06,26,46202207

55223AINSULATOR, DASH PANEL, OUTER

main55223-WAA01iDB0#,2#,4#,85202207

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-WAA01iDB05,25,45,85202207

main55241-WAA02iDB06,26,46202207

55241CSILENCER, FRONT PANEL SIDE, NO.1 RH

main53827-WAA01iDB0#,2#,4#,85202207

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main53828-WAA01iDB0#,2#,4#,85202207

55250CINSULATOR ASSY, DASH PANEL, LOWER RH

main55211-WAA01iDB0#,2#,4#,85202207

55260AINSULATOR ASSY, DASH PANEL, LOWER LH

main55212-WAA01iDB0#,2#,4#,85202207

5802

6701

90118WA048

main90118-WA048

90118WA055

main90118-WA055

90118WA061

main90118-WA061

90118WA132

main90118-WA132

90118WA133

main90118-WA133

22 parts on this diagram · 6 diagrams in section
