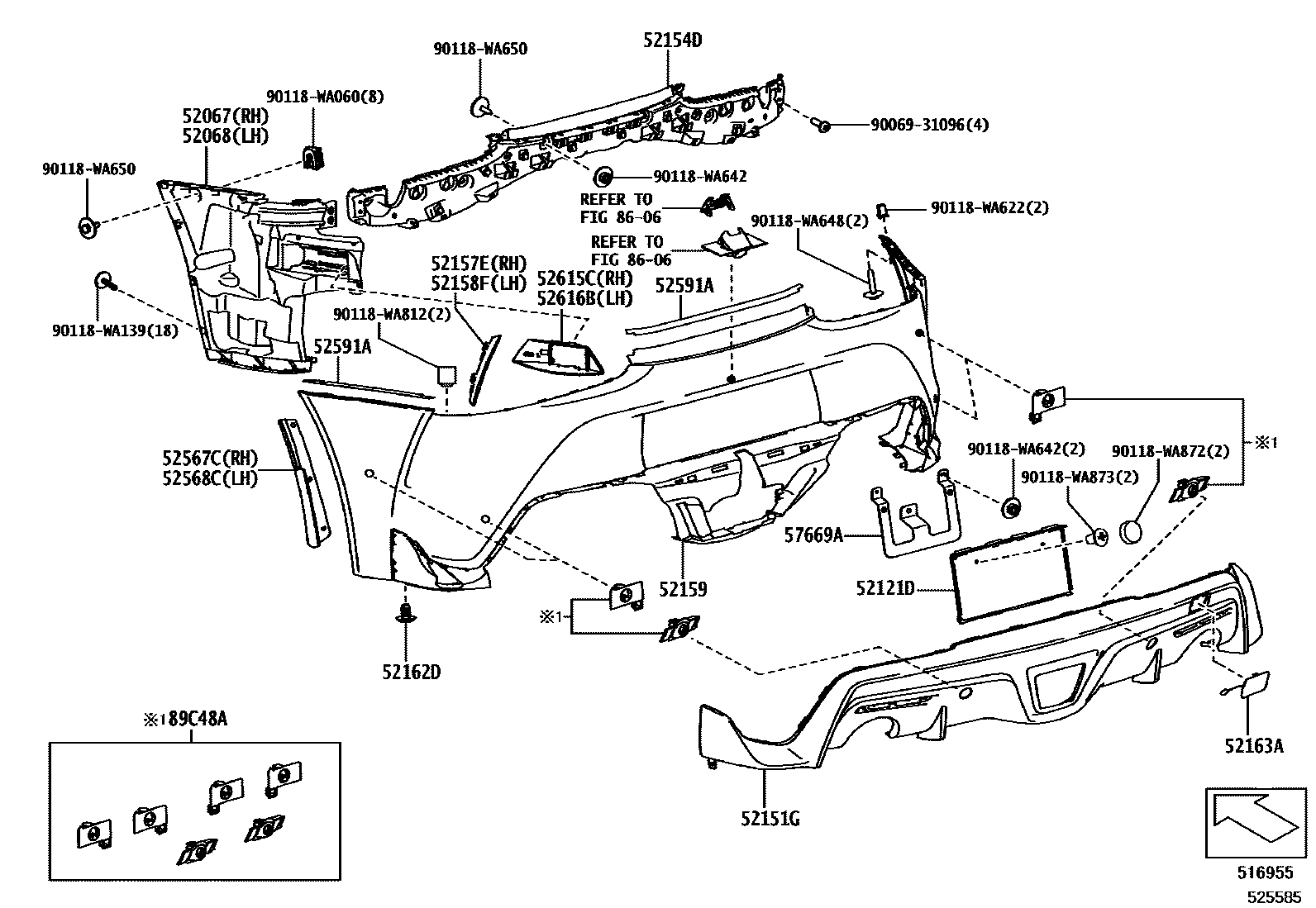

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52067SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH

main52155-WAA01iDB0#,2#,4#,85¥6,200202207

52068SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH

main52156-WAA01iDB0#,2#,4#,85¥6,200202207

52121DBRACKET, REAR LICENSE PLATE MOUNTING

52151GEXTENSION, REAR BUMPER

main52108-WAA05iDB0#,2#,4#,85¥46,800202207

NO PAINT REQ.

52154DSUPPORT, REAR BUMPER, NO.1

main52154-WAA01iDB0#,2#,4#,85¥6,200202207

52157ETRIM, AIR INLET, RH

main52157-WAA01iDB0#,2#,4#,85¥5,500202207

52158FTRIM, AIR INLET, LH

main52158-WAA01iDB0#,2#,4#,85¥5,500202207

52159COVER, REAR BUMPER

main52159-WAA03iDB0#,2#,4#,85¥49,600202207

W(CLEARANCE SONAR)

52162DPIECE, REAR BUMPER

main90118-WA025iDB0#,2#,4#,85¥240202207

52163APLATE, REAR BUMPER, RH

main52161-WAA02iDB0#,2#,4#,85¥5,900202207-202512

52567CRETAINER, REAR BUMPER LOWER SIDE, RH

main52567-WAA01iDB0#,2#,4#,85¥5,700202207

52568CRETAINER, REAR BUMPER LOWER SIDE, LH

main52568-WAA01iDB0#,2#,4#,85¥5,700202207

52591ASEAL, REAR BUMPER

main90118-WA646iDB0#,2#,4#,85¥1,570202207

LH

main90118-WA647iDB0#,2#,4#,85¥1,570202207

RH

main90118-WA768iDB0#,2#,4#,85¥3,060202207

CENTER

52615ABSORBER, REAR BUMPER ENERGY

main52615-WAA01iDB0#,2#,4#,85¥12,200202207

52615CABSORBER FUNNEL, RH

main52615-WAA02iDB0#,2#,4#,85¥11,100202207

52616BABSORBER FUNNEL, LH

main52616-WAA02iDB0#,2#,4#,85¥11,100202207

57669ABRACKET, REAR LICENSE PLATE SUPPORT

8606

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-WAA03iDB0#,2#,4#,85¥1,940202207

9006931096

main90069-31096¥260

90118WA060

main90118-WA060¥90

90118WA139

main90118-WA139¥140

90118WA622

main90118-WA622¥50

90118WA642

main90118-WA642¥140

90118WA648

main90118-WA648¥120

90118WA650

main90118-WA650¥260

90118WA812

main90118-WA812¥480

90118WA872

main90118-WA872¥70

90118WA873

main90118-WA873¥110

29 parts on this diagram · 2 diagrams in section
