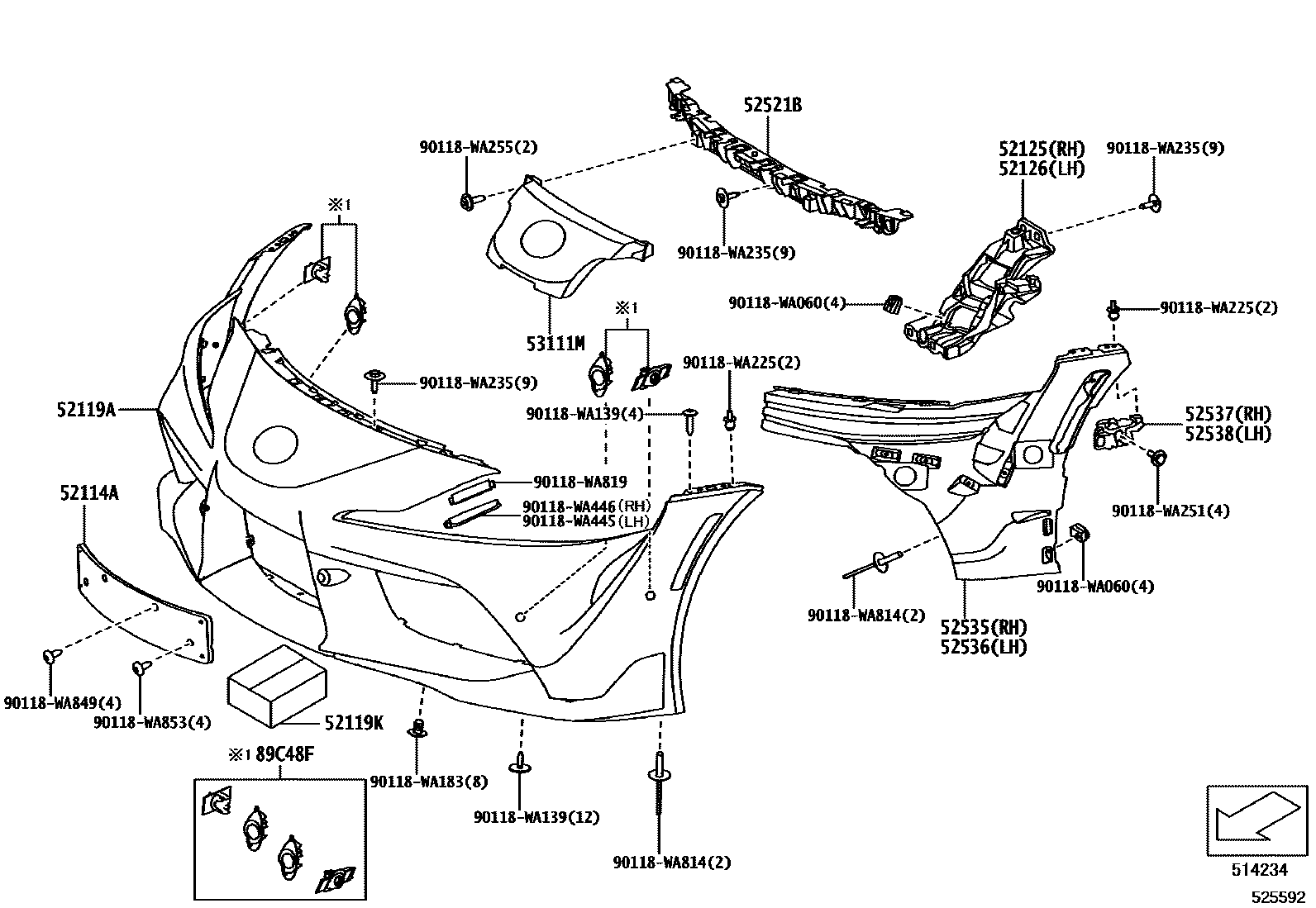

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

52119ACOVER, FRONT BUMPER

main52119-WAA01iDB0#,2#,4#,85202207

PAINT REQ.

52119KREPAIR KIT, FRONT BUMPER

main90118-WA832iDB0#,2#,4#,85202207

52125RETAINER, FRONT BUMPER, RH

main52535-WAA01iDB0#,2#,4#,85202207

52126RETAINER, FRONT BUMPER, LH

main52536-WAA01iDB0#,2#,4#,85202207

52521BRETAINER, FRONT BUMPER, UPPER

main52141-WAA01iDB0#,2#,4#,85202207

52535RETAINER, FRONT BUMPER SIDE, RH

main52125-WAA01iDB0#,2#,4#,85202207

52536RETAINER, FRONT BUMPER SIDE, LH

main52126-WAA01iDB0#,2#,4#,85202207

52537RETAINER, FRONT BUMPER END, RH

main52537-WAA01iDB0#,2#,4#,85202207

52538RETAINER, FRONT BUMPER END, LH

main52538-WAA01iDB0#,2#,4#,85202207

53111MSUPPORT, FRONT BUMPER, INNER

main53111-WAA01iDB0#,2#,4#,85202207

89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE

main89348-WAA02iDB0#,2#,4#,85202207

90118WA060

main90118-WA060

90118WA139

main90118-WA139

90118WA183

main90118-WA183

90118WA225

main90118-WA225

90118WA235

main90118-WA235

90118WA251

main90118-WA251

90118WA255

main90118-WA255

90118WA445

main90118-WA445

90118WA446

main90118-WA446

90118WA814

main90118-WA814

90118WA819

main90118-WA819

90118WA849

main90118-WA849

90118WA853

main90118-WA853

25 parts on this diagram · 4 diagrams in section
