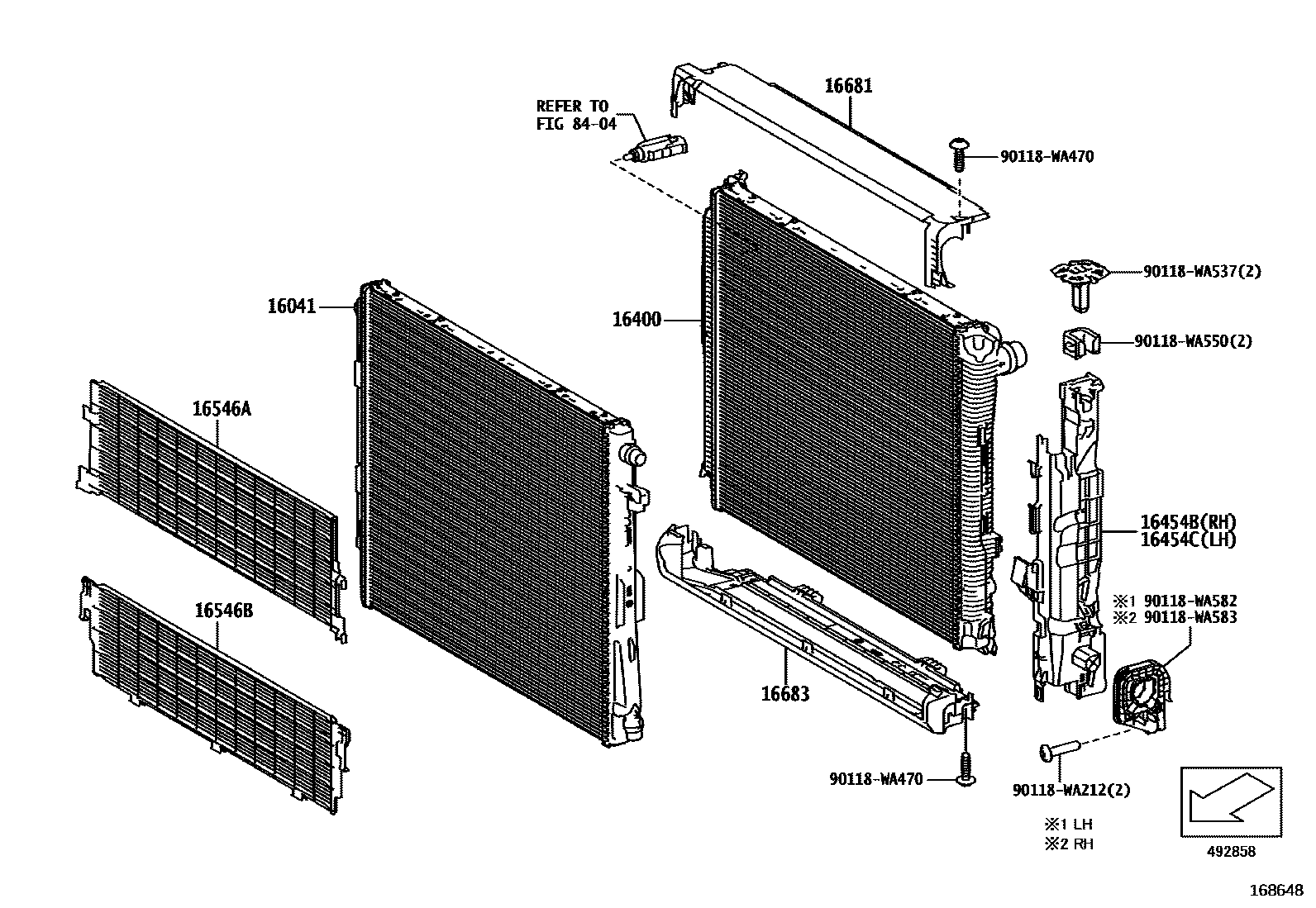

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1RADIATOR SIDE 0004 1RADIATOR SIDE 0005 1ENGINE SIDE 0006 1ENGINE SIDE 0007 1ENGINE SIDE 0008 1ENGINE SIDE 0009 1ENGINE SIDE 0010 1ENGINE SIDE 0011 1ENGINE SIDE,TROPIC SPEC 0012 1ENGINE SIDE 0013 1ENGINE SIDE 0014 1

16041RADIATOR ASSY, NO.2

main16400-WAA03iB48#,B58#..DB0#,2#,4#,85¥74,200202207

CHINA SPEC

16400RADIATOR ASSY

main16400-WAA01iB48H..DB2#¥82,400202207

TROPIC SPEC

main16400-WAA02iB48#..DB2#,85¥82,400202207

CHINA SPEC

16454BPLATE, RADIATOR SIDE, RH

main16453-WAA02iB48#,B58#..DB0#,2#,4#,85¥7,700202207

16454CPLATE, RADIATOR SIDE, LH

main16454-WAA02iB48#,B58#..DB0#,2#,4#,85¥7,700202207

16546APROTECTOR, RADIATOR, UPPER

main16546-WAA01iB48#,B58#..DB0#,2#,4#,85¥7,100202207

16546BPROTECTOR, RADIATOR, LOWER

main16546-WAA02iB58#..DB0#,4#¥7,100202207

TRANSMISSION-8HP51

main16546-WAA03iB58#..DB0#,4#¥7,800202207

16681PLATE, RADIATOR UPPER AIR GUIDE

main16453-WAA01iB48#,B58#..DB0#,2#,4#,85¥7,700202207

16683PLATE, RADIATOR LOWER AIR GUIDE

main16454-WAA01iB48#,B58#..DB0#,2#,4#,85¥7,700202207

8404

90118WA212

main90118-WA212¥160

90118WA470

main90118-WA470¥600

90118WA537

main90118-WA537¥1,120

90118WA550

main90118-WA550¥2,960

90118WA582

main90118-WA582¥4,300

90118WA583

main90118-WA583¥4,300

15 parts on this diagram · 14 diagrams in section
