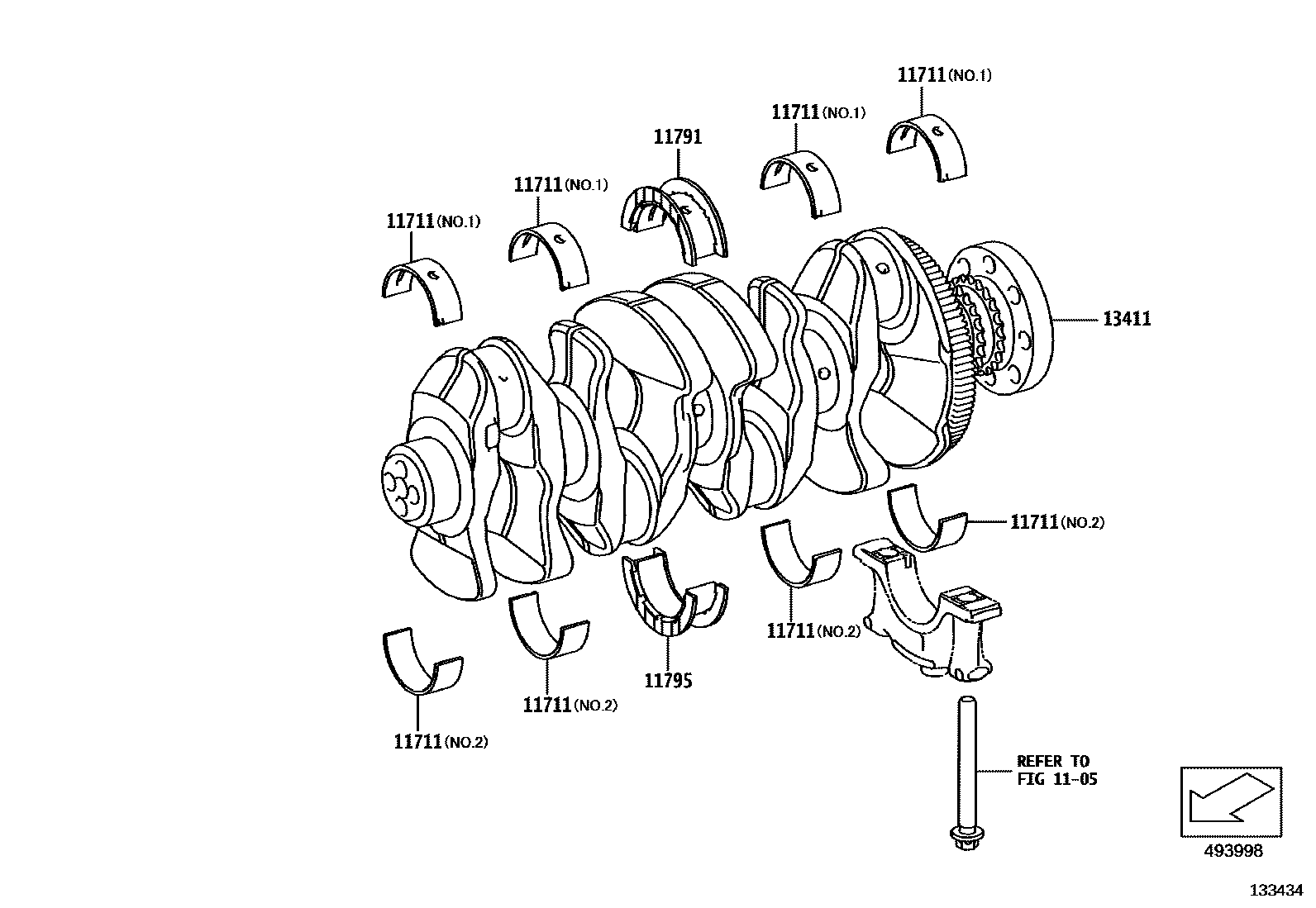

CRANKSHAFT & PISTON
1105
11711BEARING, CRANKSHAFT
NO.1,BLUE,REFER R/M
NO.1,GREEN,REFER R/M
NO.1,BROWN,REFER R/M
NO.1,BLUE,REFER R/M
NO.1,GREEN,REFER R/M
NO.1,BROWN,REFER R/M
NO.2,BLUE,REFER R/M
NO.2,GREEN,REFER R/M
NO.2,YELLO,REF. R/M
NO.2,RED,REF. R/M
NO.2,BLUE,REFER R/M
NO.2,GREEN,REFER R/M
NO.2,BROWN,REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,BLUE,REFER R/M
STD,GREEN,REFER R/M
STD,BROWN,REFER R/M
STD,BLUE,REFER R/M
STD,GREEN,REFER R/M
STD,BROWN,REFER R/M
11795WASHER, CRANKSHAFT THRUST, LOWER
BLUE,REFER R/M
GREEN,REFER R/M
BROWN,REFER R/M
BLUE,REFER R/M
GREEN,REFER R/M
BROWN,REFER R/M
5 parts on this diagram · 11 diagrams in section
