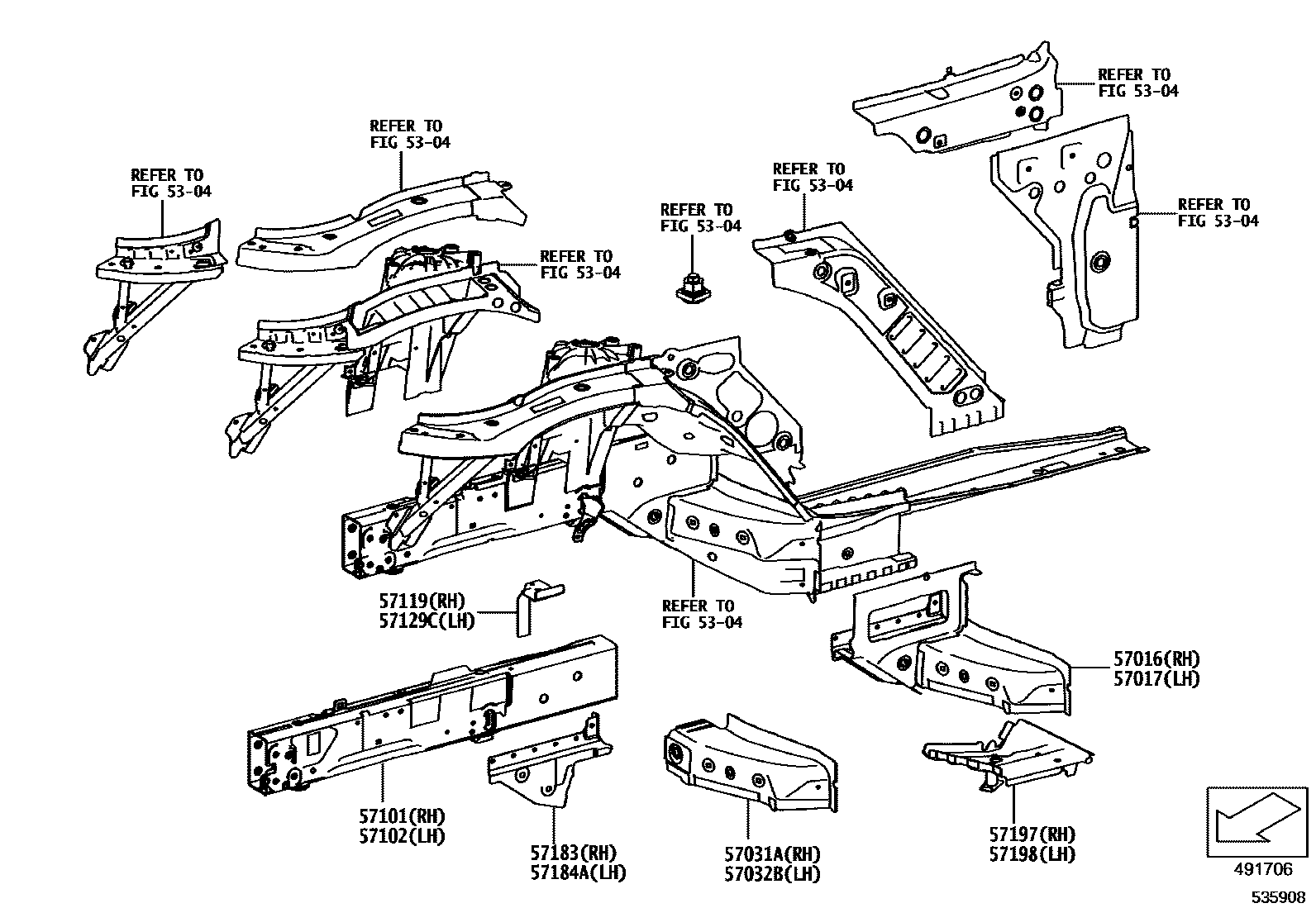

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

5304

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-WAA01iDB82201903-202006

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-WAA01iDB82201903-202006

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57145-WAA01iDB82201903-202006

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57146-WAA01iDB82201903-202006

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-WAA01iDB82201903-202006

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-WAA01iDB82201903-202006

57119PLATE, FRONT SIDE MEMBER, FRONT

main57261-WAA02iDB82201903-202006

57129CPLATE, FRONT SIDE MEMBER, FRONT LH

main57261-WAA01iDB82201903-202006

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-WAA01iDB82201903-202006

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57184-WAA01iDB82201903-202006

57197BOX, TORQUE, FRONT RH

main57197-WAA01iDB82201903-202006

57198BOX, TORQUE, FRONT LH

main57198-WAA01iDB82201903-202006

13 parts on this diagram · 7 diagrams in section
