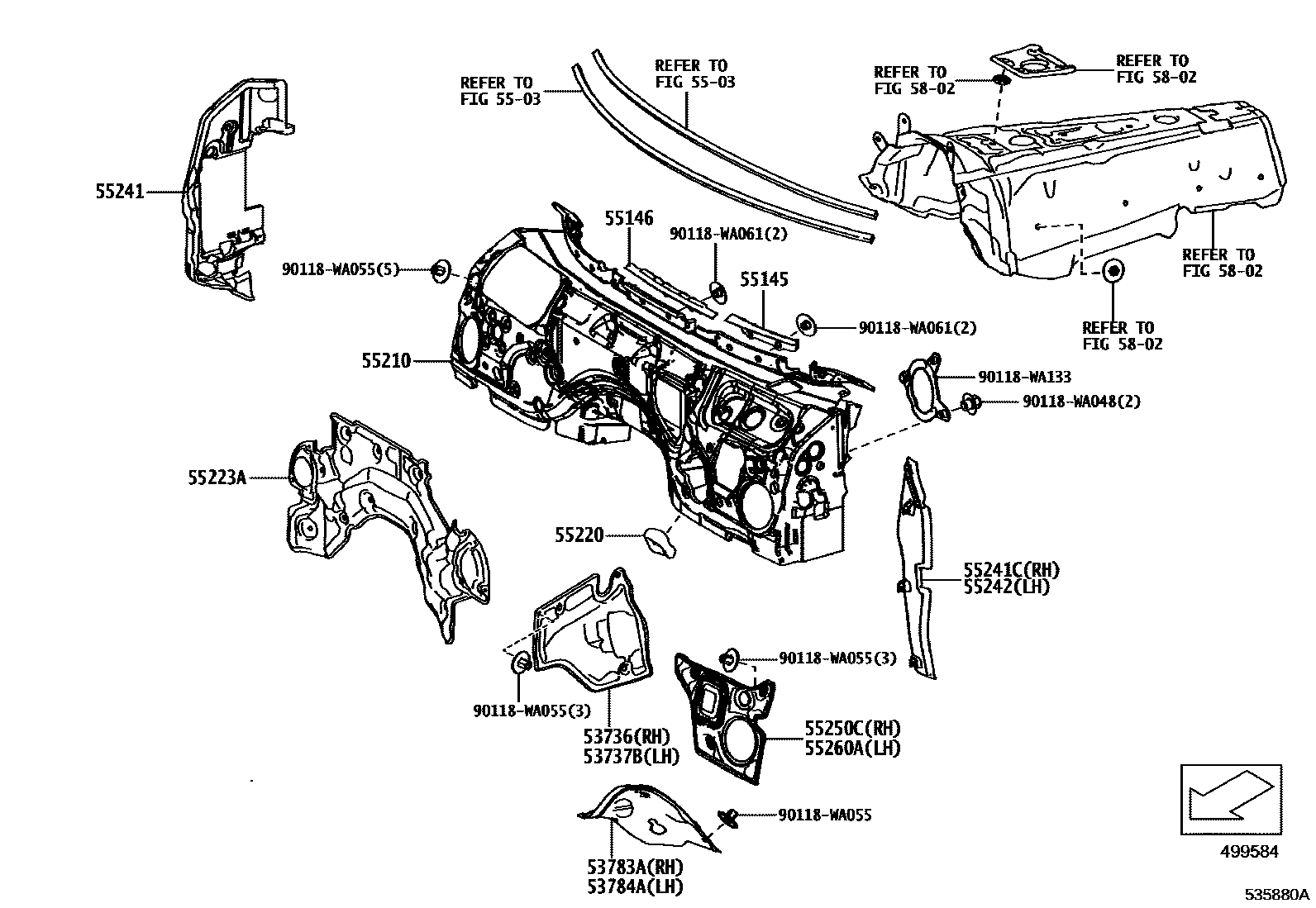

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

53736SEAL, FRONT FENDER APRON, RH

main53781-WAA01iDB82201903-202006

53737BSEAL, FRONT FENDER APRON, LH

main53782-WAA01iDB82201903-202006

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-WAA01iDB82201903-202006

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-WAA01iDB2#,4#,81201903-202006

5503

55145PLATE, DASH PANEL HEAT INSULATOR

main55145-WAA02iDB2#,4#,81201903-202006

LH

main55145-WAA03iDB82201903-202006

RH

55146INSULATOR, DASH PANEL HEAT

main55145-WAA01iDB0#201903-202006

55210INSULATOR ASSY, DASH PANEL

main55210-WAA01iDB01201903

main55210-WAA02iDB22,42201903-202006

55220INSULATOR ASSY, DASH PANEL, NO.2

main53783-WAA02iDB01201903

main53783-WAA03iDB02201903-202006

55223AINSULATOR, DASH PANEL, OUTER

main55223-WAA01iDB82201903-202006

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-WAA01iDB21,41,81201903

main55241-WAA02iDB22,42201903-202006

55241CSILENCER, FRONT PANEL SIDE, NO.1 RH

main53827-WAA01iDB82201903-202006

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main53828-WAA01iDB82201903-202006

55250CINSULATOR ASSY, DASH PANEL, LOWER RH

main55211-WAA01iDB82201903-202006

55260AINSULATOR ASSY, DASH PANEL, LOWER LH

main55212-WAA01iDB82201903-202006

5802

90118WA048

main90118-WA048

90118WA055

main90118-WA055

90118WA061

main90118-WA061

90118WA133

main90118-WA133

20 parts on this diagram · 7 diagrams in section
