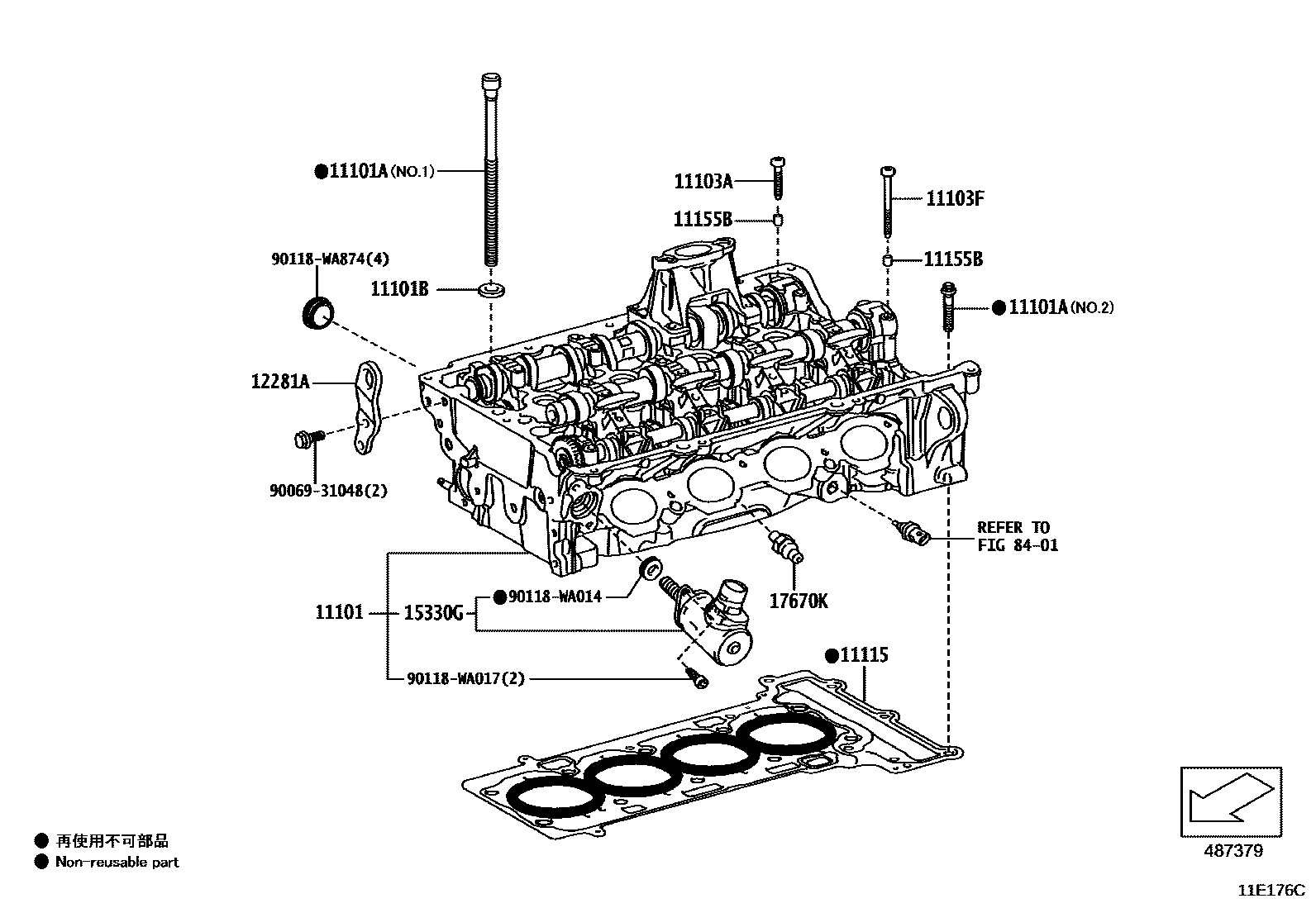

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

11101HEAD SUB-ASSY, CYLINDER

main11107-WAA01iB48#..DB2#,8#201903-202001

sub11107-WAA04

main11107-WAA02iB58..DB4#201903

main11107-WAA03iB58H..DB0#202003

main11107-WAA04iB48#..DB2#,81202002

11101ABOLT(FOR CYLINDER HEAD SET)

main90069-31051iB48#,B58..DB2#,4#,81201903-202006

NO.2:REFER ILLUST.

main90118-WA011iB48#..DB2#,81201903-202006

NO.1:REFER ILLUST.

main90118-WA011iB58H..DB0#202003

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90118-WA005iB48L..DB82201903-202006

11103ABOLT(FOR CAMSHAFT HOUSING SET)

main90118-WA212iB48L..DB82201903-202006

main90118-WA766iB48L..DB82201903-202006

##

11103FBOLT(FOR CAMSHAFT HOUSING SET)

main90118-WA213iB48#..DB2#,8#201903

M6X65-8.8

main90118-WA765iB48#..DB2#,8#201903

M6X65-10.9

11115GASKET, CYLINDER HEAD

main11115-WAA01iB48L..DB82201903-202006

T=0.80

main11115-WAA02iB48L..DB82201903-202006

T=1.10

main11115-WAA03iB58..DB4#201903

T=0.81

main11115-WAA04iB58..DB4#201903

T=1.11

11155BPIN, RING

main90118-WA006iB48L..DB82201903-202006

12281AHANGER, ENGINE, NO.1

main12281-WAA01iB58H..DB0#201903-202006

15330GMOTOR, SERVO

main15330-WAA01iB48L..DB82201903-202006

main15330-WAA02iB58..DB4#201903

17670KVALVE ASSY, AIR BY-PASS

main17670-WAA01iB48L..DB82201903-202006

8401

9006931048

main90069-31048

90118WA014

main90118-WA014

90118WA017

main90118-WA017

90118WA874

main90118-WA874

15 parts on this diagram · 9 diagrams in section
