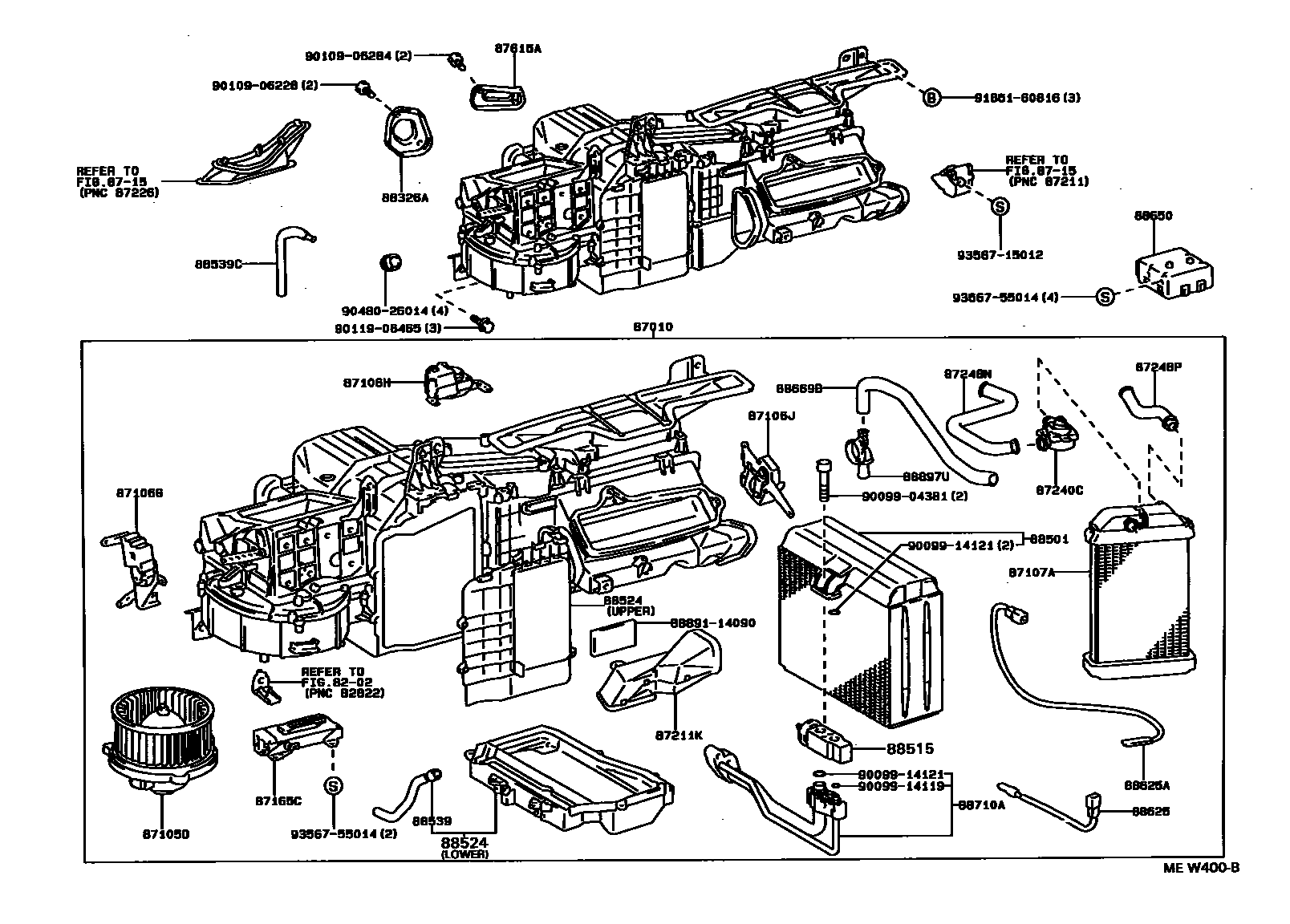

HEATING & AIR CONDITIONING - COOLER UNIT
8202
87010UNIT ASSY, AIR CONDITIONER
87105DFAN SUB-ASSY, BLOWER
87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87107AUNIT SUB-ASSY, HEATER RADIATOR
8715
87165CCONTROL, BLOWER MOTOR
sub87165-14020
87240CVALVE ASSY, HEATER WATER
87248NPIPE, HEATER WATER INLET
87248PPIPE, HEATER WATER OUTLET
87615ARETAINER, INSULATOR
88515VALVE, COOLER EXPANSION
sub88515-22240
88524PANEL, COOLING BOX, BOTTOM
LOWER
LOWER
UPPER
UPPER
88539HOSE, COOLER UNIT DRAIN, NO.1
88625THERMISTOR, COOLER, NO.1
sub88625-24050
88625ATHERMISTOR, COOLER NO.2
88669BHOSE, COOLER AIR
88710ATUBE ASSY, AIR CONDITIONER
8889114090PACKING (FOR COOLER)
main88891-14090
9009904381
main90099-04381
9009914119
main90099-14119
9009914121
main90099-14121
9010906228
main90109-06228
9010906284
main90109-06284
9011906465
main90119-06465
9048026014
main90480-26014
9165160816
main91651-60816
9356715012
main93567-15012
9356755014
main93567-55014
37 parts on this diagram · 1 diagram in section
