AIR BAG

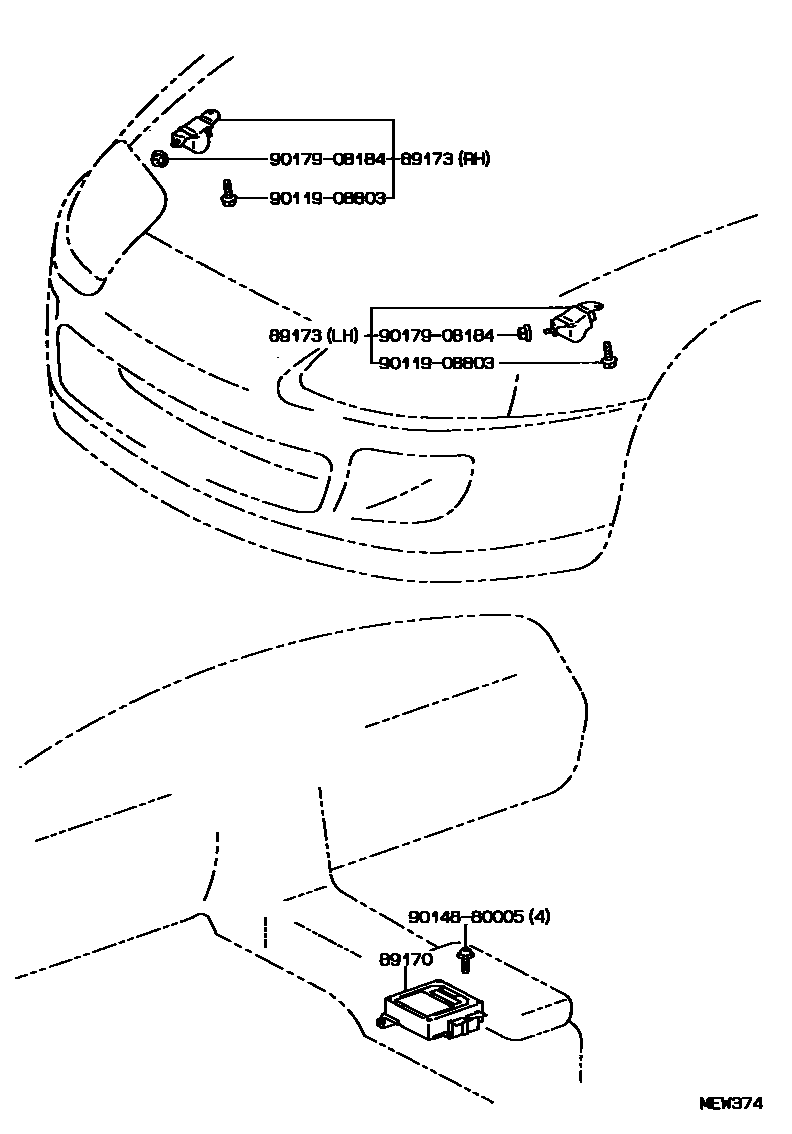

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-14020i199305-199601

main89170-14030i199305-199605

89173SENSOR, AIRBAG, FRONT

main89173-19075i199305-199605

RH

main89173-19085i199305-199605

LH

9011908803

main90119-08803

9014880005

main90148-80005

9017908184

main90179-08184

5 parts on this diagram · 1 diagram in section
