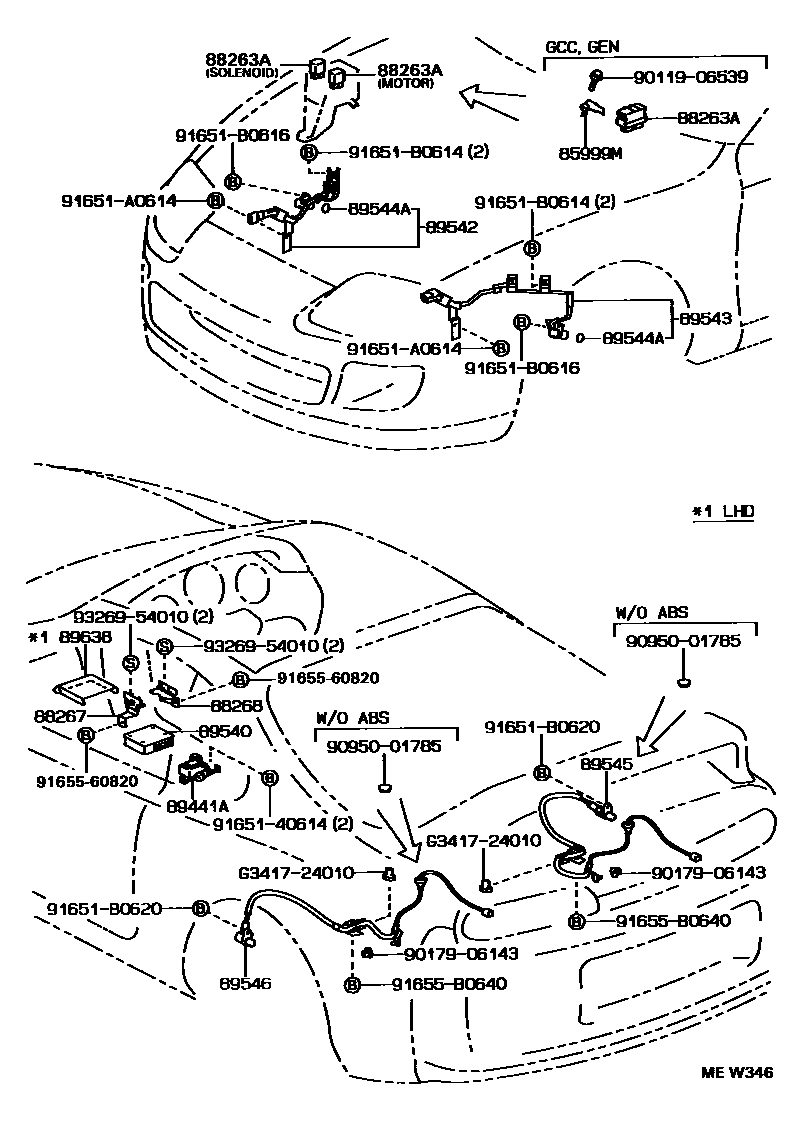

ABS & VSC

85999MBRACKET, RELAY

main85999-14230iJZA80..GCC,GEN199305-199605

88263ARELAY, SKID CONTROL

main88263-12070iJZA80..GCC,GEN199305-199604

sub88263-12080

main88263-24020iJZA80..EUR199305-199601

MOTOR

main88263-24030iJZA80..EUR199305-199601

SOLENOID

main88263-35090iJZA80199604

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-14130iJZA80..RHD;JZA80..LHD..EUR199305-199601

main88267-14140iJZA80..LHD..(GCC,GEN)199305-199605

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-14130iJZA80..RHD;JZA80..LHD..EUR199305-199601

main88268-14140iJZA80..LHD..(GCC,GEN)199305-199605

89441ASENSOR, DECELERATION

main89440-14010iJZA80..MTM199305-199605

main89440-14020iJZA80..4FC199305-199605

89540COMPUTER ASSY, SKID CONTROL

main89541-14040iJZA80..GCC,GEN199305-199605

main89541-14050iJZA80..EUR199305-199601

89542SENSOR, SPEED, FRONT RH

main89542-14020iJZA80199305-199605

sub89542-14030

89543SENSOR, SPEED, FRONT LH

main89543-14020iJZA80199305-199605

sub89543-14030

89544ARING, O (FOR SKID CONTROL SENSOR)

main96721-19016iJZA80199305-199605

89545SENSOR, SPEED, REAR RH

main89545-14010iJZA80199305-199605

89546SENSOR, SPEED, REAR LH

main89546-14010iJZA80199305-199605

89638COVER, BRAKE CONTROL COMPUTER

main89638-14010iJZA80..LHD..(GCC,GEN)199305-199605

9011906539

main90119-06539

9017906143

main90179-06143

9095001785

main90950-01785

9165140614

main91651-40614

91651A0614

main91651-A0614

91651B0614

main91651-B0614

91651B0616

main91651-B0616

91651B0620

main91651-B0620

9165560820

main91655-60820

91655B0640

main91655-B0640

9326954010

main93269-54010

G341724010

mainG3417-24010

24 parts on this diagram · 1 diagram in section
