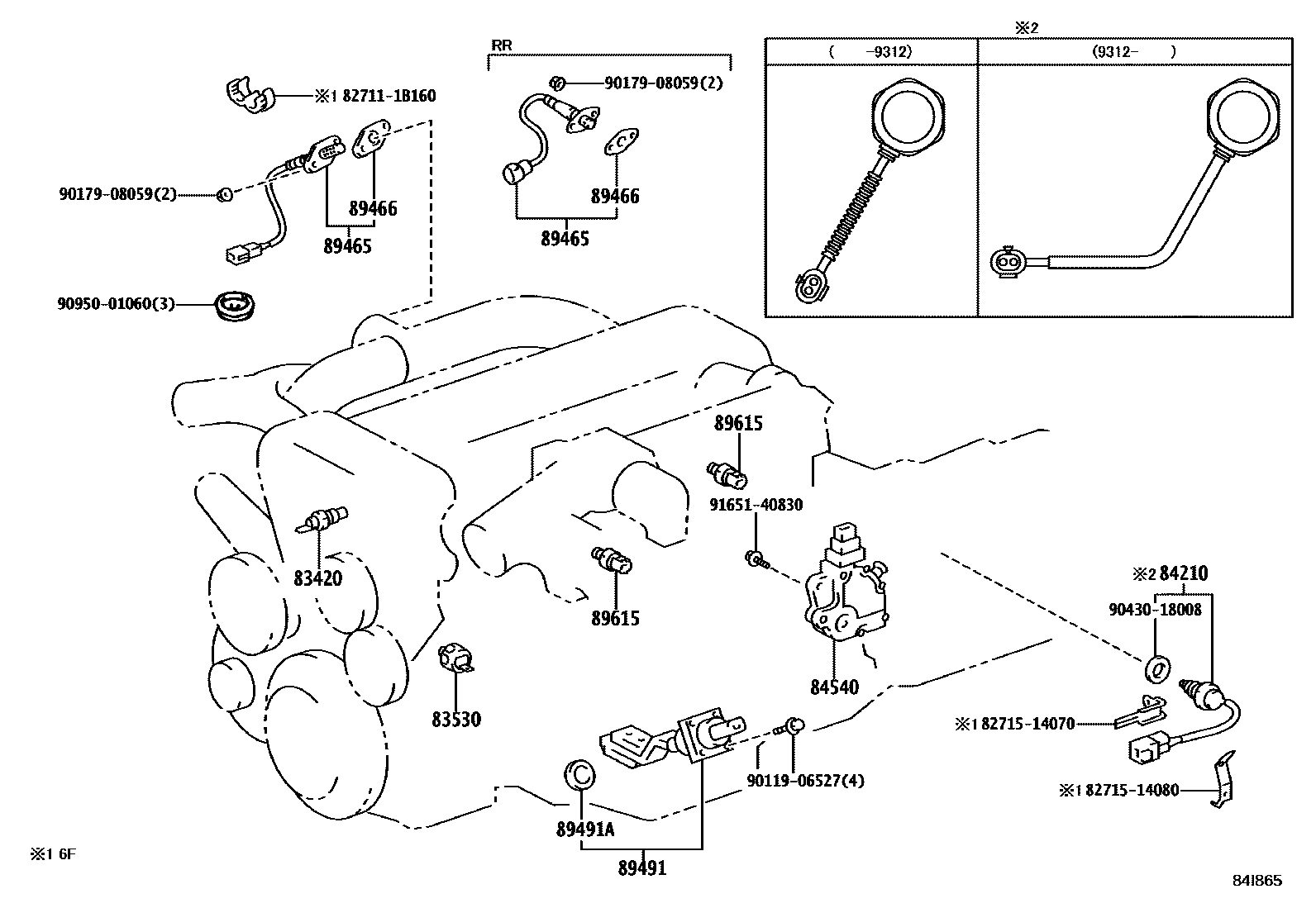

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL & CONSOLE 0004 1COWL & CONSOLE 0005 1INSTRUMENT PANEL & DOOR 0006 1INSTRUMENT PANEL & DOOR 0007 1COMBINATION SWITCH 0008 1COMBINATION SWITCH 0009 1SEAT 0010 1SEAT 0011 1BODY

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iJZA80..GCC,GEN199305-199605

NIPPONDENSO

main83420-16050iJZA80..EUR199305-199411

sub83420-20040

main83420-20030iJZA80..GCC,GEN199305-199506

YAZAKI

sub83420-16040

main83420-20040iJZA80..EUR199411-199601

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iJZA80199305-199411

NIPPONDENSO

sub83530-30090

main83530-30090iJZA80199305-199605

YAZAKI

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-14030iJZA80..6F199305-199312

sub84210-14040

main84210-14040iJZA80..6F199404-199601

main84210-30060iJZA80..5F199305-199605

main84210-60030iJZA80..6F199312-199404

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZA80..4FC199305-199605

89465SENSOR, OXYGEN

main89465-19595iJZA80..EUR199305-199601

RR

main89465-19605iJZA80..EUR199305-199601

FR

89466GASKET, OXYGEN SENSOR

main89466-20020iJZA80..EUR199305-199601

89491SENSOR, ENGINE OIL LEVEL

main89491-14070iJZA80199305-199605

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iJZA80199305-199605

89615SENSOR, KNOCK CONTROL

main89615-22040iJZA80199305-199605

827111B160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1B160

8271514070BRACKET,WIRING HARNESS CLAMP

main82715-14070

8271514080BRACKET,WIRING HARNESS CLAMP

main82715-14080

9011906527

main90119-06527

9017908059

main90179-08059

9043018008

main90430-18008

9095001060

main90950-01060

9165140830

main91651-40830

17 parts on this diagram · 11 diagrams in section
