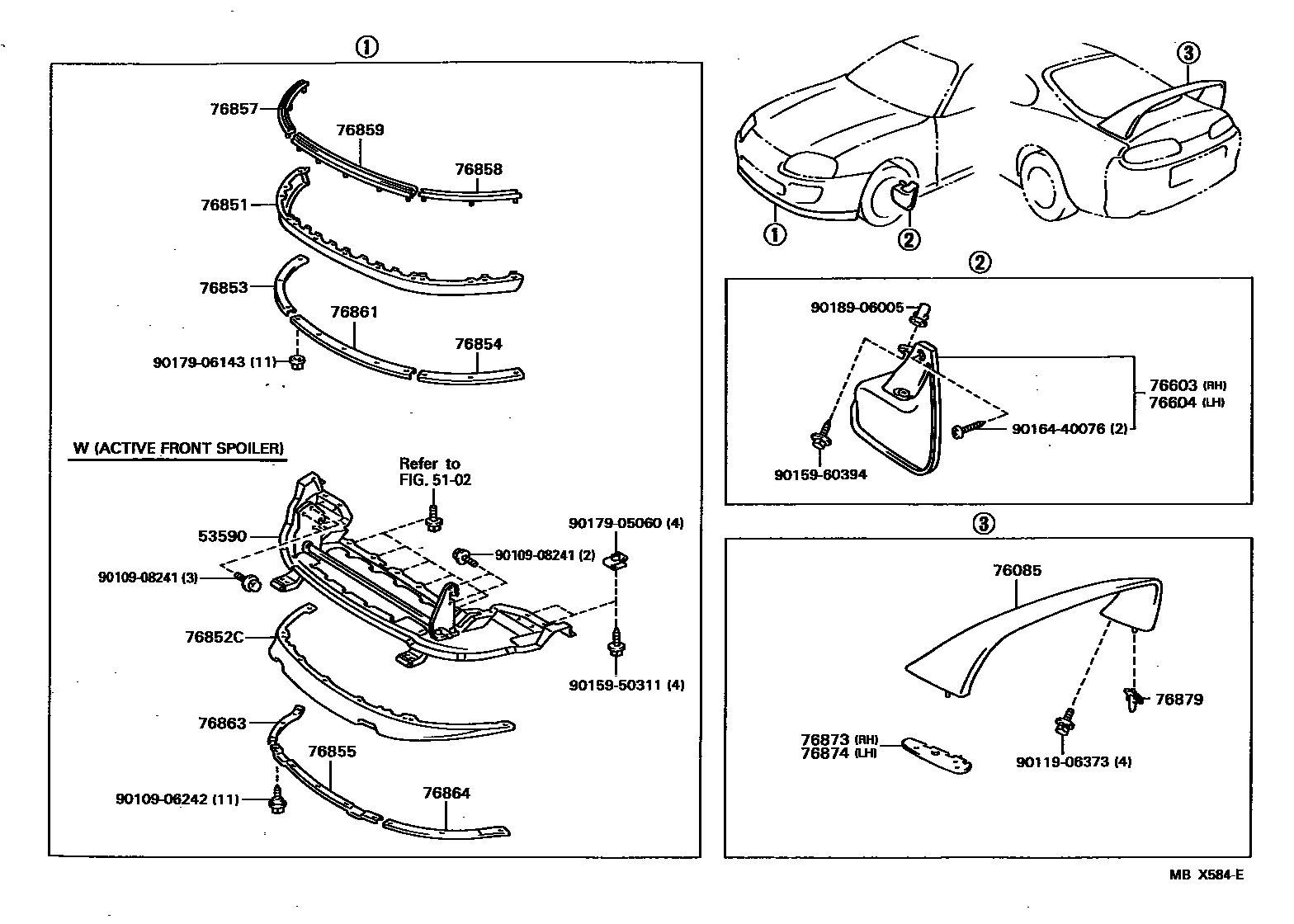

MUDGUARD & SPOILER

5102

53590SPOILER ASSY, FRONT ACTIVE

main53509-14010iJZA80..EUR199305-199601

76085SPOILER SUB-ASSY, REAR

main76085-14909iJZA80199305-199605

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19255iJZA80..LHD..EUR199305-199601

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19255iJZA80..LHD..EUR199305-199601

76851COVER, FRONT SPOILER

main76851-14060iJZA80199305-199605

sub76851-14070

76852CCOVER, FR SPOILER, NO.2

main76852-14010iJZA80..EUR199305-199601

76853RETAINER, FRONT SPOILER, UPPER RH

main76853-14020iJZA80199305-199605

76854RETAINER, FRONT SPOILER, UPPER LH

main76854-14020iJZA80199305-199605

76855RETAINER, FRONT SPOILER, LOWER NO.1 CENTER

main76855-14020iJZA80..EUR199305-199601

76857RETAINER, FRONT SPOILER SIDE, RH

main76857-14030iJZA80199305-199605

76858RETAINER, FRONT SPOILER SIDE, LH

main76858-14030iJZA80199305-199605

76859RETAINER, FRONT SPOILER, UPPER NO.3

main76859-14010iJZA80199305-199605

76861RETAINER, FRONT SPOILER, LOWER NO.1

main76861-14040iJZA80199305-199605

76863RETAINER, FRONT SPOILER, LOWER NO.2 RH

main76863-14030iJZA80..EUR199305-199601

76864RETAINER, FRONT SPOILER, LOWER NO.2 LH

main76864-14030iJZA80..EUR199305-199601

76873PROTECTOR, REAR SPOILER, NO.2

main76873-14060iJZA80199305-199403

sub76873-14061

main76873-14061iJZA80199403-199605

76874PROTECTOR, REAR SPOILER, NO.3

main76874-14060iJZA80199305-199403

sub76874-14061

main76874-14061iJZA80199403-199605

76879CLIP, REAR SPOILER, NO.1

main76879-14040iJZA80199305-199605

9010906242

main90109-06242

9010908241

main90109-08241

9011906373

main90119-06373

9015950311

main90159-50311

9015960394

main90159-60394

9016440076

main90164-40076

9017905060

main90179-05060

9017906143

main90179-06143

9018906005

main90189-06005

28 parts on this diagram · 1 diagram in section
