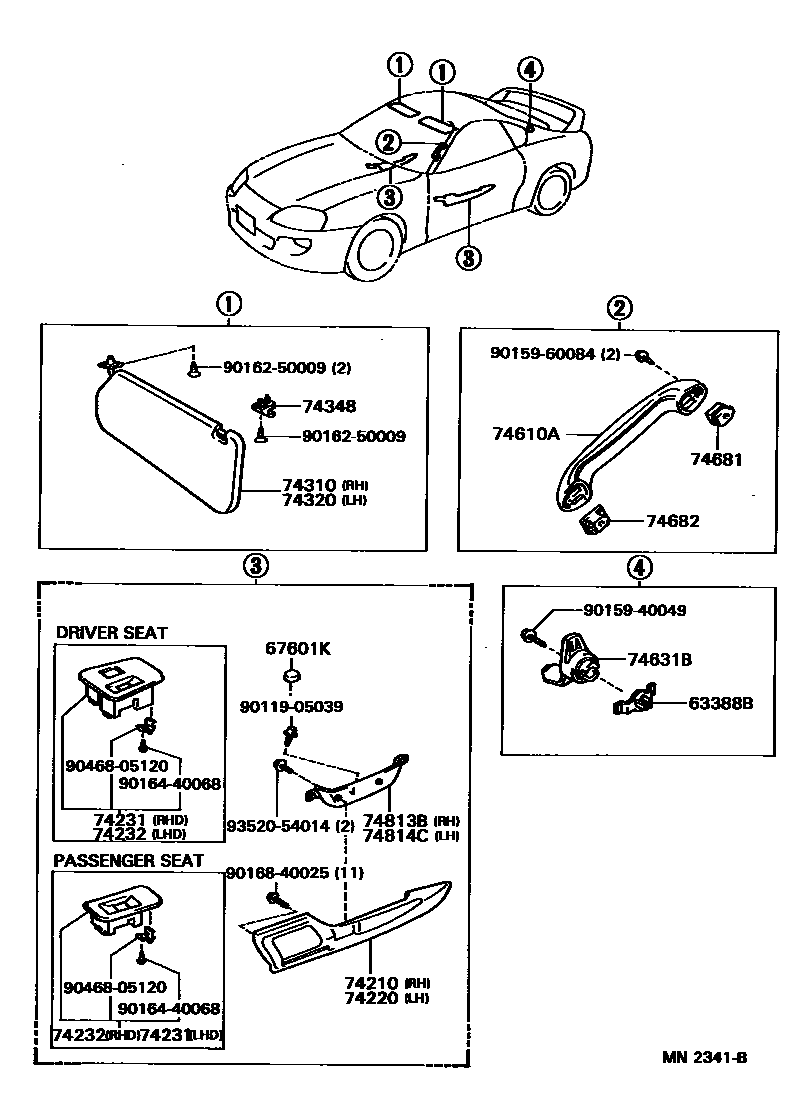

ARMREST & VISOR

63388BSTOPPER, ROOF HEADLINING TRIM CLIP

main63388-14020iJZA80¥300199305-199605

67601KCAP, FRONT DOOR ARMREST

main90339-10002-C0iJZA80..GCC;JZA80..RHD199305-199605

BLACK,TRIM0#,2#

sub90339-10002¥180

main90339-10002-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub90339-10002¥180

74210ARMREST ASSY, FRONT, RH

main74210-14120-C0iJZA80..RHD..GEN199305-199408

BLACK,TRIM0#,2#

main74210-14120-C0iJZA80..GCC199305-199508

BLACK,TRIM2#

main74210-14140-C0iJZA80..GCC;JZA80..RHD199408-199605

BLACK,TRIM0#,2#

main74210-14140-C0iJZA80..LHD;JZA80..RHD..EUR199305-199508

W(LEATHER SEAT),BLACK,TRIM0#,2#

main74210-14140-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

74220ARMREST ASSY, FRONT, LH

main74220-14130-C0iJZA80..GCC199305-199508

BLACK,BLACK,TRIM2#

main74220-14130-C0iJZA80..RHD..GEN199305-199408

BLACK,TRIM0#,2#

main74220-14130-C0iJZA80..RHD..GEN199305-199408

BLACK,TRIM2#

main74220-14150-C0iJZA80..LHD;JZA80..RHD..EUR199305-199508

W(LEATHER SEAT),BLACK,TRIM0#,2#

main74220-14150-C0iJZA80..EUR,GEN199408-199605

BLACK,TRIM0#,2#

main74220-14150-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-14120iJZA80..RHD¥2,900199305-199601

main74231-14140-C0iJZA80..LHD199305-199605

BLACK,TRIM0#,2#

main74231-14140-C0iJZA80..GCC199508-199605

BLACK,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-14110-C0iJZA80..RHD199305-199601

BLACK,TRIM0#,2#

main74232-14120iJZA80..LHD¥2,900199305-199605

74310VISOR ASSY, RH

main74310-14590-C0iJZA80..RHD..EUR199305-199408

BLACK,TRIM0#,2#

main74310-14591-C2iJZA80..RHD199408-199601

BLACK,TRIM0#,2#

sub74310-14601¥4,090

main74310-14600-C0iJZA80..LHD..EUR199305-199408

BLACK,TRIM0#,2#

main74310-14601-C1iJZA80..LHD..EUR199508-199601

BLACK,TRIM2#

main74310-14601-C1iJZA80..LHD..EUR199408-199508

BLACK,TRIM0#,2#

main74310-14650-C0iJZA80..LHD..5F199305-199408

BLACK,TRIM0#,2#

main74310-14651-C1iJZA80..GCC199508-199605

BLACK,TRIM2#

main74310-14651-C1iJZA80..GEN199408-199605

BLACK,TRIM0#,2#

main74310-14660-C0iJZA80..RHD..GEN199305-199408

BLACK,TRIM0#,2#

sub74310-14650¥5,700

main74310-14670-C0iJZA80..RHD..GEN199305-199408

W(AIR BAG),BLACK,TRIM0#,2#

main74310-14680-C0iJZA80..GCC199508-199605

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),BLACK,TRIM0#,2#

74320VISOR ASSY, LH

main74320-14660-C0iJZA80..RHD..EUR199305-199408

BLACK,TRIM0#,2#

main74320-14661-C1iJZA80..RHD199408-199601

BLACK,TRIM0#,2#

main74320-14670-C0iJZA80..LHD..EUR199305-199408

BLACK,TRIM0#,2#

sub74320-14660¥5,900

main74320-14671-C1iJZA80..LHD..EUR199508-199601

BLACK,TRIM2#

sub74320-14661¥4,090

main74320-14671-C1iJZA80..LHD..EUR199408-199508

BLACK,TRIM0#,2#

sub74320-14661¥4,090

main74320-14710-C0iJZA80..RHD..GEN199305-199408

BLACK,TRIM0#,2#

main74320-14720-C0iJZA80..GCC199508-199605

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),BLACK,TRIM0#,2#

main74320-14730-C0iJZA80..LHD..5F199305-199408

BLACK,TRIM0#,2#

sub74320-14710¥5,700

main74320-14740-C0iJZA80..LHD..5F199305-199408

W(AIR BAG),BLACK,TRIM0#,2#

main74320-14741-C1iJZA80..GEN199508-199605

BLACK,TRIM2#

main74320-14741-C1iJZA80..GCC,GEN199408-199605

BLACK,TRIM0#,2#

74348HOLDER, VISOR

main74348-22020-C0iJZA80199305-199605

BLACK,TRIM0#,2#

sub74348-22020¥680

main74348-22020-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub74348-22020¥680

74610AGRIP SUB-ASSY, ASSIST

main74610-24050-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub74610-24050¥1,670

main74610-24050-C0iJZA80199305-199605

BLACK,TRIM0#,2#

sub74610-24050¥1,670

74631BHOOK, COAT

main74631-20060-22iJZA80199305-199605

BLACK,TRIM0#,2#

sub74631-20060¥650

main74631-20060-22iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub74631-20060¥650

74681RETAINER, ASSIST GRIP, UPPER

main74681-14010iJZA80¥520199305-199605

74682RETAINER, ASSIST GRIP, LOWER

main74682-14010iJZA80¥520199305-199605

74813BHANDLE, FRONT DOOR PULL, RH

main74813-14010-C0iJZA80199305-199605

BLACK,TRIM0#,2#

sub74813-14020¥1,600

main74813-14010-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub74813-14020¥1,600

74814CHANDLE, FRONT DOOR PULL, LH

main74814-14010-C0iJZA80199305-199605

BLACK,TRIM0#,2#

sub74814-14020¥1,600

main74814-14010-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub74814-14020¥1,600

9011905039

main90119-05039¥110

9015940049

main90159-40049¥190

9015960084

main90159-60084¥250

9016250009

main90162-50009¥120

9016440068

main90164-40068¥120

9016840025

main90168-40025¥70

9046805120

main90468-05120¥180

9352054014

main93520-54014¥70

23 parts on this diagram · 1 diagram in section
