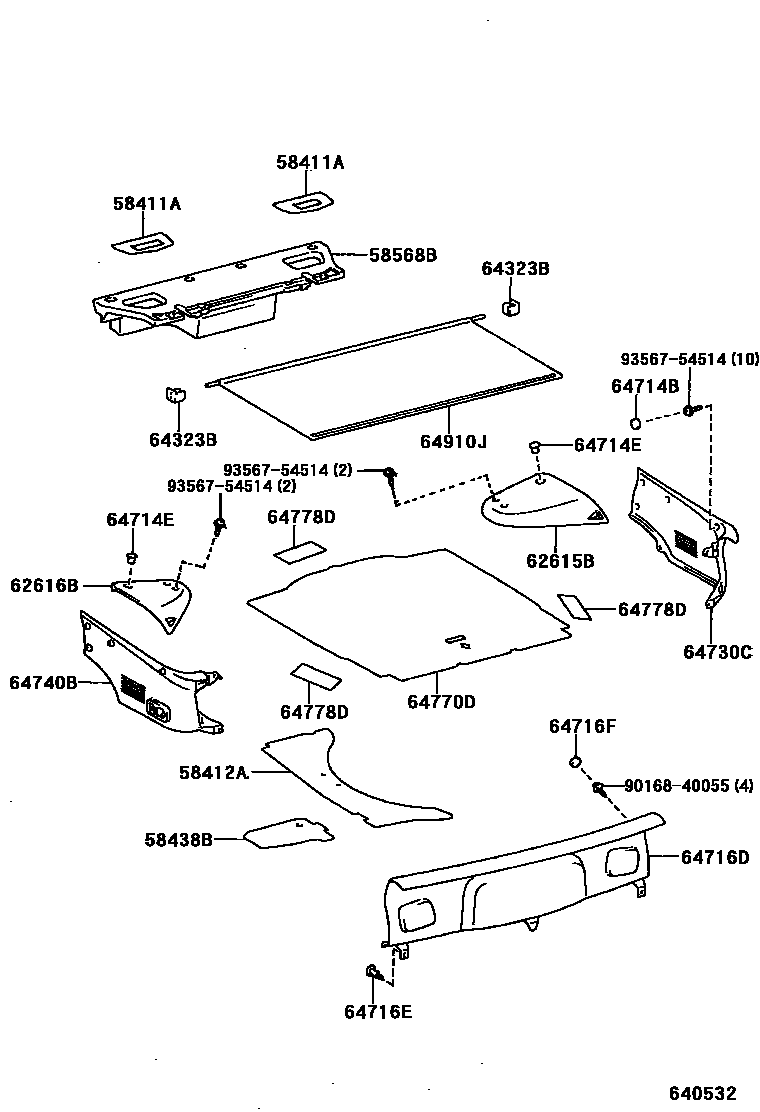

DECK BOARD & DECK TRIM COVER

58411ABOARD, DECK, NO.1

main58411-14100iJZA80199305-199408

58412ABOARD, DECK, NO.2

main58412-14040iJZA80..GCC,GEN199305-199605

58438BBOARD, DECK, NO.3

main58438-14020iJZA80199305-199605

58568BSPACER, REAR FLOOR CARPET

main58568-14010iJZA80199305-199605

62615BCOVER, QUARTER WHEEL HOUSE, INNER RH

main62615-14070-C0iJZA80199305-199605

BLACK,TRIM0#,2#

main62615-14070-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

62616BCOVER, QUARTER WHEEL HOUSE, INNER LH

main62616-14060-C0iJZA80199305-199605

BLACK,TRIM0#,2#

main62616-14060-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

64323BCLAMP, TONNEAU COVER

main64323-14040-C0iJZA80199305-199507

BLACK,TRIM0#,2#

main64323-14041-C0iJZA80..LHD..(EUR,GEN)199507-199605

BLACK,TRIM2#

main64323-14041-C0iJZA80..LHD..(EUR,GEN)199507-199605

BLACK,TRIM0#,2#

64714BPLUG, HOLE(FOR DECK TRIM SIDE COVER)

main90950-01503-C0iJZA80199305-199605

BLACK,TRIM0#,2#

sub90950-01503

main90950-01503-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub90950-01503

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-08150iJZA80199305-199605

64716DCOVER, DECK TRIM, REAR

main64716-14150-C0iJZA80..LB199305-199508

BLACK,TRIM0#,2#

sub64716-14151

main64716-14151-C0iJZA80..LHD..LB..(EUR,GEN)199508-199605

BLACK,TRIM0#,2#

sub64716-14152

main64716-14151-C0iJZA80..LHD..LB..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub64716-14152

main64716-14160-C0iJZA80..AET199305-199508

BLACK,TRIM0#,2#

sub64716-14161

main64716-14161-C0iJZA80..LHD..AET199508-199601

BLACK,TRIM2#

sub64716-14162

main64716-14161-C0iJZA80..RHD..AET199508-199601

BLACK,TRIM0#,2#

sub64716-14162

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-07108iJZA80199305-199605

64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)

main90950-01503-C0iJZA80..LHD..(EUR,GEN)199305-199605

BLACK,TRIM0#,2#

sub90950-01503

main90950-01503-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub90950-01503

64730CBOARD, DECK TRIM SIDE, RH

main64731-14130-C0iJZA80199305-199508

BLACK,TRIM0#,2#

sub64731-14131

main64731-14131-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub64731-14132

main64731-14131-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM0#,2#

sub64731-14132

64740BBOARD, DECK TRIM SIDE, LH

main64732-14130-C0iJZA80199305-199508

BLACK,TRIM0#,2#

sub64732-14131

main64732-14131-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub64732-14132

main64732-14131-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM0#,2#

sub64732-14132

64770DCOVER ASSY, SPARE WHEEL

main64771-14100iJZA80..EUR,GEN199305-199605

W(SPARE TIRE=STANDARD SIZE)

main64771-14110iJZA80..GCC199305-199605

W(SPARE TIRE=STANDARD SIZE)

64778DPROTECTOR, SPARE WHEEL

main64778-14030iJZA80199305-199605

sub64768-53011

64910JCOVER ASSY, TONNEAU

main64910-14060-C0iJZA80199305-199605

BLACK,TRIM0#,2#

main64910-14060-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

9016840055

main90168-40055

9356754514

main93567-54514

19 parts on this diagram · 1 diagram in section
