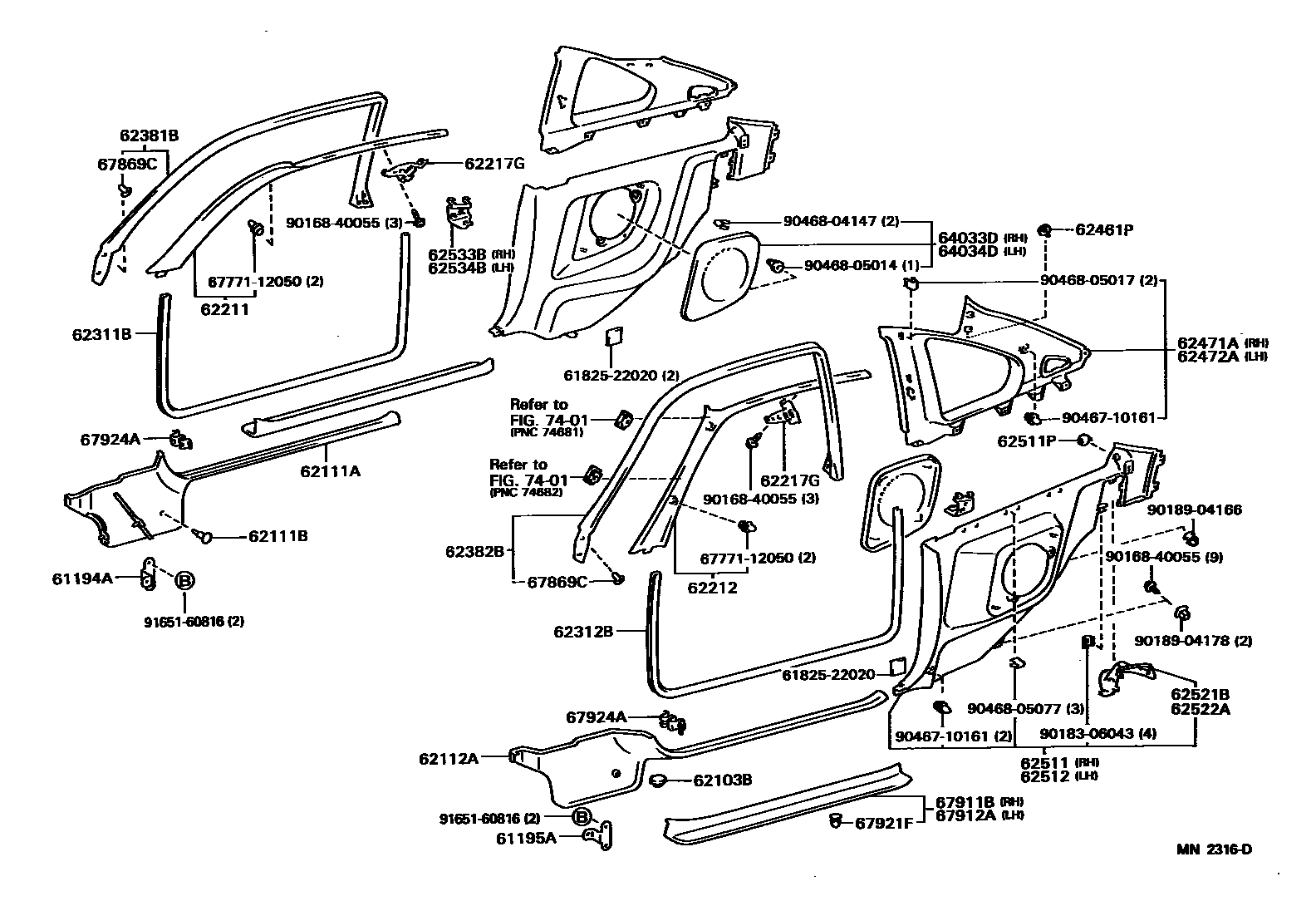

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

61194ABRACKET, COWL SIDE TRIM, RH

main61194-14020iJZA80..LB199305-199605

61195ABRACKET, COWL SIDE TRIM, LH

main61194-14020iJZA80..LB199305-199605

62103BPLUG(FOR COWL SIDE TRIM BOARD)

main90950-01267-C0iJZA80..RHD199305-199601

BLACK,TRIM0#,2#

sub90950-01267

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-14180-C0iJZA80..RHD199305-199601

BLACK,TRIM0#,2#

main62101-14190-C0iJZA80..LHD..(EUR,GEN)199305-199605

BLACK,TRIM0#,2#

main62101-14190-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-07043-C0iJZA80199305-199605

BLACK,TRIM0#,2#

sub90467-07043

main90467-07043-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub90467-07043

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-14240-C0iJZA80..RHD199305-199601

BLACK,TRIM0#,2#

main62102-14250-C0iJZA80..LHD199305-199605

BLACK,TRIM0#,2#

main62102-14250-C0iJZA80..GCC199508-199605

BLACK,TRIM2#

62211GARNISH, FRONT PILLAR, RH

main62210-14060-C0iJZA80..RHD..LB199305-199601

BLACK,TRIM0#,2#

main62210-14070-C0iJZA80..GCC199508-199605

BLACK,TRIM2#

main62210-14070-C0iJZA80..LHD..LB..(EUR,GEN)199305-199605

BLACK,TRIM0#,2#

main62210-14080-C0iJZA80..RHD..AET199305-199601

BLACK,TRIM0#,2#

main62210-14090-C0iJZA80..LHD..AET199305-199508

BLACK,TRIM0#,2#

main62210-14090-C0iJZA80..LHD..AET199508-199601

BLACK,TRIM2#

62212GARNISH, FRONT PILLAR, LH

main62220-14060-C0iJZA80..RHD..LB199305-199601

BLACK,TRIM0#,2#

main62220-14070-C0iJZA80..LHD..LB..(EUR,GEN)199508-199605

BLACK,TRIM2#

main62220-14070-C0iJZA80..LHD..LB199305-199605

BLACK,TRIM0#,2#

main62220-14080-C0iJZA80..RHD..AET199305-199601

BLACK,TRIM0#,2#

main62220-14090-C0iJZA80..LHD..AET199508-199601

BLACK,TRIM2#

main62220-14090-C0iJZA80..LHD..AET199305-199508

BLACK,TRIM0#,2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-14020iJZA80..LB199305-199605

main62217-14030iJZA80..AET199305-199601

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-14070iJZA80199305-199605

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-14070iJZA80199305-199605

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-14140iJZA80..LB199305-199605

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-14150iJZA80..LB199305-199605

62461PPLUG, HOLE (FOR ROOF SIDE INNER GARNISH)

main90950-01503-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub90950-01503

main90950-01503-C0iJZA80199305-199605

BLACK,TRIM0#,2#

sub90950-01503

62471AGARNISH, ROOF SIDE, INNER RH

main62471-14290-C0iJZA80199305-199508

BLACK,TRIM0#,2#

sub62471-14291

main62471-14291-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub62471-14292

main62471-14291-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM0#,2#

sub62471-14292

62472AGARNISH, ROOF SIDE, INNER LH

main62472-14280-C0iJZA80199305-199508

BLACK,TRIM0#,2#

sub62472-14281

main62472-14281-C0iJZA80..GCC;JZA80..RHD199508-199605

BLACK,TRIM2#

sub62472-14282

main62472-14281-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM0#,2#

sub62472-14282

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-1B160-C0iJZA80..LB199305-199508

BLACK,TRIM0#,2#

sub62510-1B161

main62510-1B161-C0iJZA80..LHD..LB..(EUR,GEN)199508-199605

BLACK,TRIM0#,2#

sub62510-1B162

main62510-1B161-C0iJZA80..LHD..LB..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub62510-1B162

main62510-1B170-C0iJZA80..AET199305-199508

BLACK,TRIM0#,2#

sub62510-1B171

main62510-1B171-C0iJZA80..RHD..AET199508-199601

BLACK,TRIM2#

sub62510-1B172

main62510-1B171-C0iJZA80..LHD..AET199508-199601

BLACK,TRIM0#,2#

sub62510-1B172

62511PPLUG, QUARTER TRIM BOARD

main90950-01503-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub90950-01503

main90950-01503-C0iJZA80199305-199605

BLACK,TRIM0#,2#

sub90950-01503

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-1B150-C0iJZA80..LB199305-199508

BLACK,TRIM0#,2#

sub62520-1B151

main62520-1B151-C0iJZA80..LHD..LB..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub62520-1B152

main62520-1B151-C0iJZA80..GCC;JZA80..RHD..LB199508-199605

BLACK,TRIM0#,2#

sub62520-1B152

main62520-1B160-C0iJZA80..AET199305-199508

BLACK,TRIM0#,2#

sub62520-1B161

main62520-1B161-C0iJZA80..LHD..AET199508-199601

BLACK,TRIM2#

sub62520-1B162

main62520-1B161-C0iJZA80..RHD..AET199508-199601

BLACK,TRIM0#,2#

sub62520-1B162

62521BCOVER, QUARTER TRIM, RH

main62521-14120-C0iJZA80..LB199305-199605

BLACK,TRIM0#,2#

main62521-14120-C0iJZA80..LHD..LB..(EUR,GEN)199508-199605

BLACK,TRIM2#

main62521-14130-C0iJZA80..LHD..AET199508-199601

BLACK,TRIM2#

main62521-14130-C0iJZA80..AET199305-199601

BLACK,TRIM0#,2#

62522ACOVER, QUARTER TRIM, LH

main62522-14110-C0iJZA80..GCC;JZA80..RHD..LB199508-199605

BLACK,TRIM2#

main62522-14110-C0iJZA80..LB199305-199605

BLACK,TRIM0#,2#

main62522-14120-C0iJZA80..LHD..AET199305-199601

BLACK,TRIM0#,2#

main62522-14120-C0iJZA80..LHD..AET199508-199601

BLACK,TRIM2#

62533BBRACKET, QUARTER TRIM, RH

main62533-14080iJZA80199305-199605

62534BBRACKET, QUARTER TRIM, LH

main62534-14050iJZA80199305-199605

64033DGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-14090-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

main64033-14090-C0iJZA80199305-199605

BLACK,TRIM0#,2#

64034DGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-14080-C0iJZA80199305-199605

BLACK,TRIM0#,2#

main64034-14080-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-30020iJZA80..LB199305-199605

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-14030-C0iJZA80199305-199605

BLACK,TRIM0#,2#

main67911-14030-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-14020-C0iJZA80199305-199605

BLACK,TRIM0#,2#

main67912-14020-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67921-32010iJZA80199305-199605

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-14010iJZA80199305-199605

7401

6182522020PLATE, QUARTER INNER PANEL, LOWER FRONT RH

main61825-22020

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

9016840055

main90168-40055

9018306043

main90183-06043

9018904166

main90189-04166

9018904178

main90189-04178

9046710161

main90467-10161

9046804147

main90468-04147

9046805014

main90468-05014

9046805017

main90468-05017

9046805077

main90468-05077

9165160816

main91651-60816

43 parts on this diagram · 2 diagrams in section
