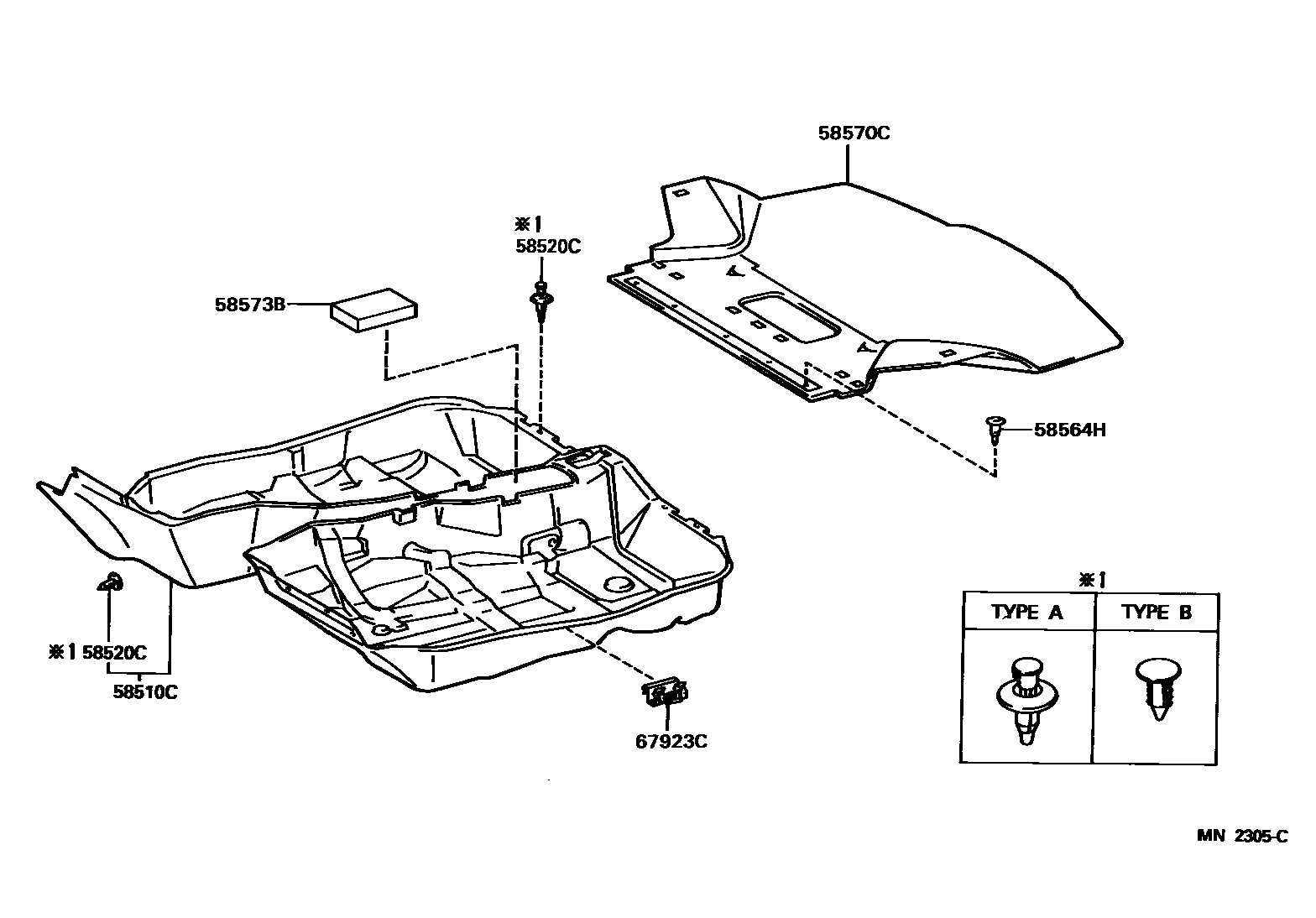

MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
IVORY,TRIM0#
BLACK,TRIM2#
58520CCLIP(FOR FRONT FLOOR CARPET)
IVORY,TRIM0#
BLACK,TRIM0#,2#
BLACK,TRIM2#
58564HCLIP(FOR REAR FLOOR CARPET)
58570CCARPET ASSY, REAR FLOOR
BLACK,TRIM0#,2#
BLACK,TRIM2#
W(SPARE TIRE=STANDARD SIZE),BLACK,TRIM0#,2#
sub58570-14411
BLACK,TRIM0#,2#
W(SPARE TIRE=STANDARD SIZE),BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
W(SPARE TIRE=STANDARD SIZE),BLACK,TRIM2#
W(SPARE TIRE=STANDARD SIZE),BLACK,TRIM0#,2#
58573BPAD, FRONT FLOOR CENTER
W(GENERAL EXPORT PACKAGE)
67923CCLAMP, DOOR SCUFF PLATE, NO.1
6 parts on this diagram · 1 diagram in section
