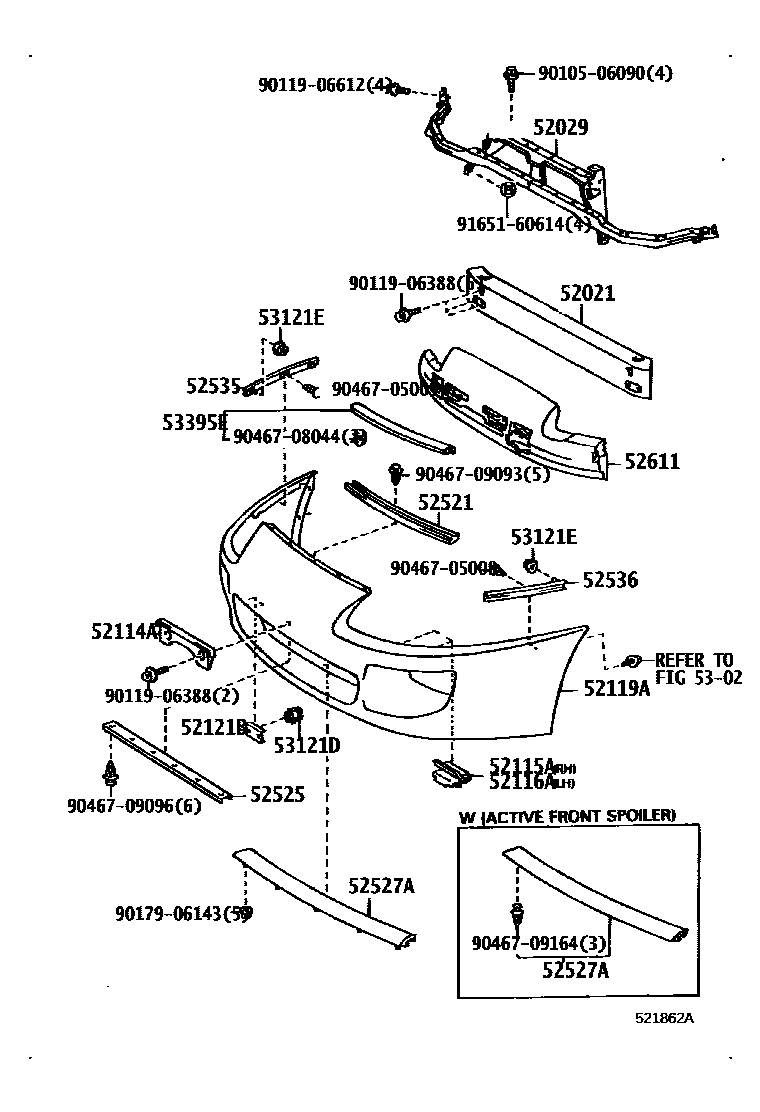

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
GERMANY SPEC
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
GERMANY SPEC
SWEEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC
NORWAY SPEC
52121BBRACKET, FRONT LICENCE PLATE MOUNTING
GERMANY SPEC
52521RETAINER, FRONT BUMPER, UPPER CENTER
52525RETAINER, FRONT BUMPER, LOWER CENTER
52527ARETAINER, FRONT BUMPER, LOWER CENTER NO.2
W(FRONT SPOILER)
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
5302
53121DCLIP(FOR FRONT BUMPER), NO.2
GERMANY SPEC
53395ESEAL, HOOD TO FRONT END PANEL
9010506090
main90105-06090
9011906388
main90119-06388
9011906612
main90119-06612
9017906143
main90179-06143
9046705009
main90467-05009
9046708044
main90467-08044
9046709093
main90467-09093
9046709096
main90467-09096
9046709164
main90467-09164
9165160614
main91651-60614
27 parts on this diagram · 1 diagram in section
