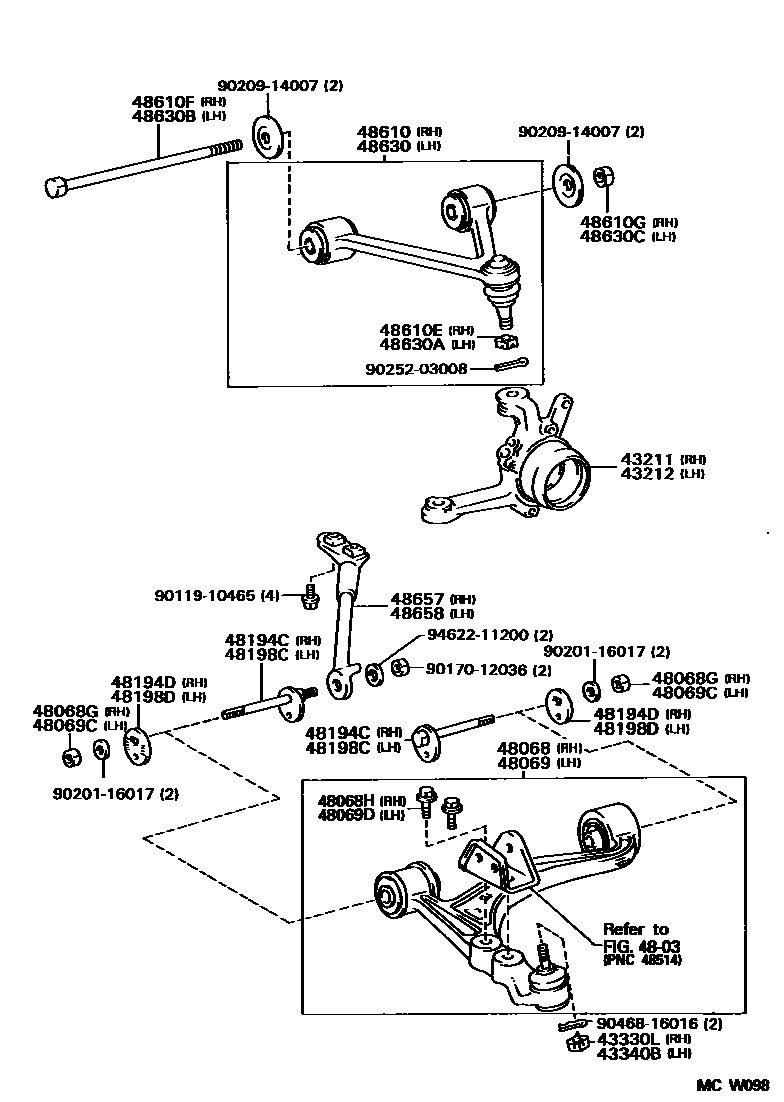

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
W(*66)
43212KNUCKLE, STEERING, LH
W(*66)
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
4803
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
sub94130-01602
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
sub94130-01602
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH
FR
RR
48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH
48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH
FR
RR
48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
sub48610-29046
48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)
48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)
48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
sub48630-29046
48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)
48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)
48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)
9011910465
main90119-10465
9017012036
main90170-12036
9020116017
main90201-16017
9020914007
main90209-14007
9025203008
main90252-03008
9046816016
main90468-16016
9462211200
main94622-11200
32 parts on this diagram · 1 diagram in section
