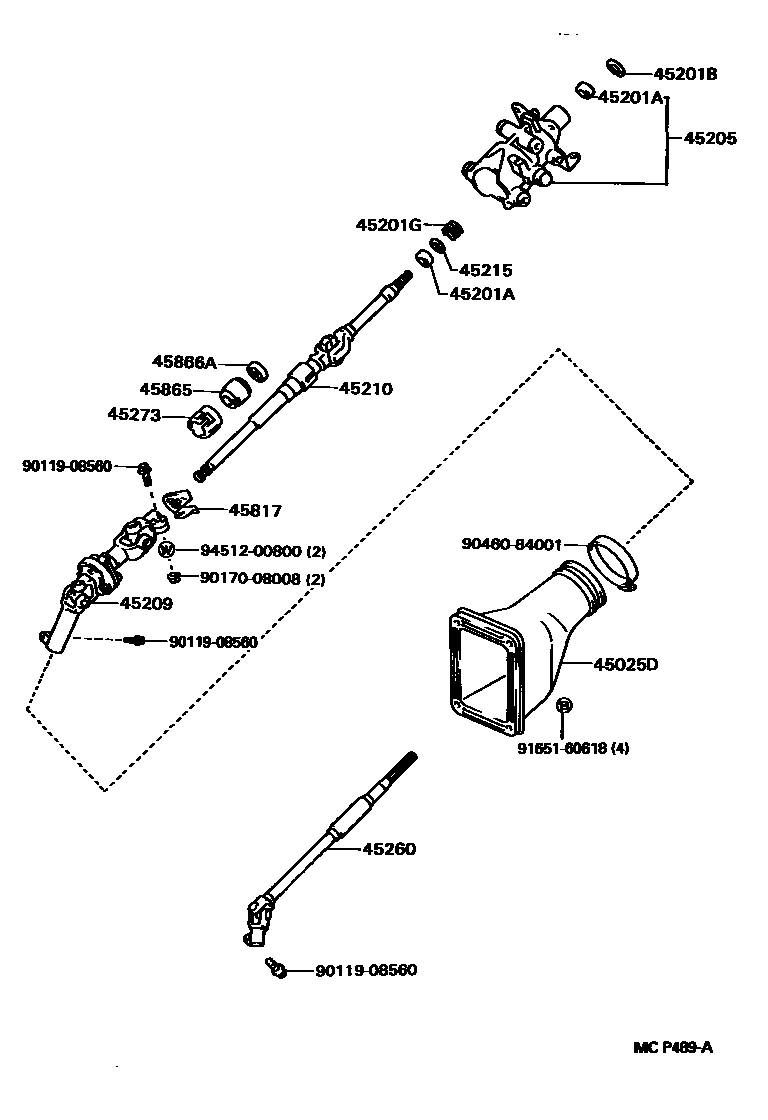

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45215COLLAR, MAIN SHAFT BEARING THRUST
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45273BUSH, STEERING MAIN SHAFT
45817STOPPER, STEERING SHAFT THRUST
45865COLLAR, STEERING MAIN SHAFT
45866ASTOPPER, STEERING MAIN SHAFT BUSH
9011908560
9017008008
9046084001
9165160618
9451200800
18 parts on this diagram · 4 diagrams in section
