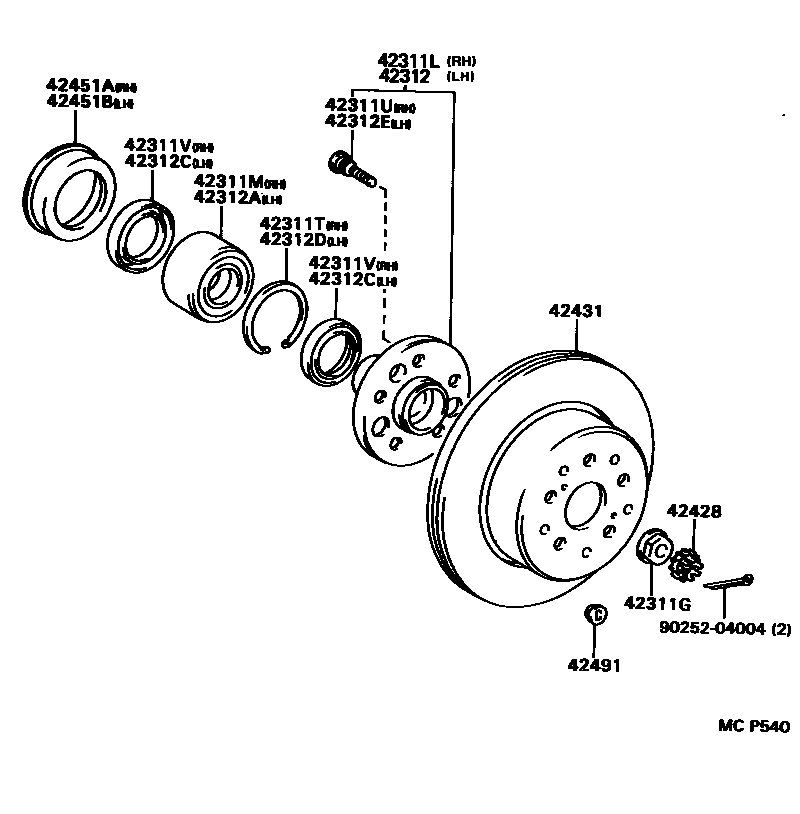

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1W(ANTI-LOCK BRAKING SYSTEM)

42311GNUT(FOR REAR AXLE SHAFT)

main90179-26006iJZA80¥370199305-199605

42311LSHAFT, REAR AXLE, RH

main42301-30030iJZA80¥14,000199305-199605

42311MBEARING(FOR REAR AXLE SHAFT RH)

main90369-43005iJZA80¥7,700199305-199605

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90521-85002iJZA80¥300199305-199605

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02070iJZA80¥390199305-199605

sub90942-02049¥240

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90311-57001iJZA80¥580199305-199605

OUTER

main90311-63001iJZA80¥750199305-199605

INNER

42312SHAFT, REAR AXLE, LH

main42301-30030iJZA80¥14,000199305-199605

42312ABEARING(FOR REAR AXLE SHAFT LH)

main90369-43005iJZA80¥7,700199305-199605

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90311-57001iJZA80¥580199305-199605

OUTER

main90311-63001iJZA80¥750199305-199605

INNER

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90521-85002iJZA80¥300199305-199605

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02070iJZA80¥390199305-199605

sub90942-02049¥240

42428PLATE, REAR AXLE LOCK NUT

main42428-24010iJZA80¥600199305-199605

42431DISC, REAR

main42431-14150iJZA80..EUR¥15,100199305-199601

main42431-30140iJZA80..GCC,GEN¥14,300199305-199508

sub42431-40080¥14,300

main42431-30240iJZA80..GCC,GEN¥14,000199508-199605

sub42431-40080¥14,300

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-14010iJZA80..GEN¥680199305-199605

main42451-50010iJZA80..EUR,GCC¥1,760199305-199605

W(*66)

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-14010iJZA80..GEN¥680199305-199605

main42451-50010iJZA80..EUR,GCC¥1,760199305-199605

W(*66)

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iJZA80¥140199305-199605

9025204004

main90252-04004¥90

17 parts on this diagram · 3 diagrams in section
