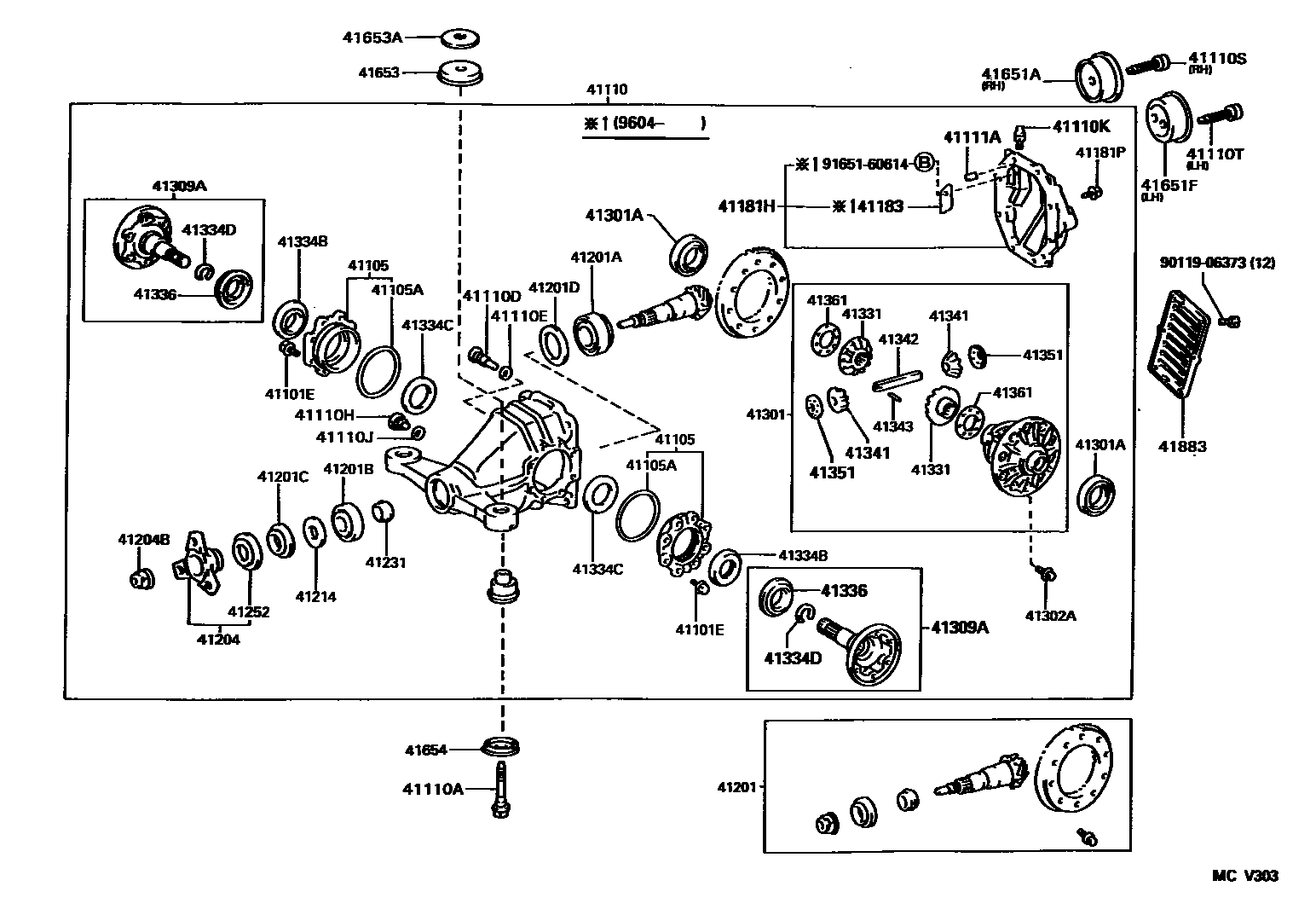

REAR AXLE HOUSING & DIFFERENTIAL
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41105RETAINER SUB-ASSY, REAR DIFFERENTIAL CARRIER
41105ARING, O (FOR REAR DIFFERENTIAL CARRIER RETAINER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=49:15=3.266
*FGR=46:13=3.538
*FGR=49:13=3.769
*FGR=49:15=3.266,SWITZERLAND SPEC;AUSTRIA SPEC
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
*12-1.25PX90-26
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41110SBOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET)
sub90110-14007
41110TBOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET)
sub90110-14007
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
sub41183-50010
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=49:15=3.267,SWITZERLAND SPEC;AUSTRIA SPEC
*FGR=49:15=3.267
*FGR=46:13=3.538
*FGR=49:13=3.769
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.88,MARK 88
T=1.90,MARK 90
T=1.92,MARK 92
T=1.94,MARK 94
T=1.96,MARK 96
T=1.98,MARK 98
T=2.00,MARK 00
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
T=1.80,MARK 80
T=1.81,MARK 81
T=1.82,MARK 82
T=1.83,MARK 83
T=1.84,MARK 84
T=1.85,MARK 85
T=1.86,MARK 86
T=1.87,MARK 87
T=1.88,MARK 88
T=1.89,MARK 89
T=1.90,MARK 90
T=1.91,MARK 91
T=1.92,MARK 92
T=1.93,MARK 93
T=1.94,MARK 94
T=1.95,MARK 95
T=1.96,MARK 96
T=1.97,MARK 97
T=1.98,MARK 98
T=1.99,MARK 99
T=2.00,MARK 00
T=2.01,MARK 01
T=2.02,MARK 02
T=2.03,MARK 03
T=2.04,MARK 04
T=2.05,MARK 05
T=2.06,MARK 06
T=2.07,MARK 07
T=2.08,MARK 08
T=2.09,MARK 09
T=2.10,MARK 10
T=2.11,MARK 11
T=2.12,MARK 12
T=2.13,MARK 13
T=2.14,MARK 14
T=2.15,MARK 15
T=2.16,MARK 16
T=2.17,MARK 17
T=2.18,MARK 18
T=1.77,MARK 77
T=1.78,MARK 78
T=1.79,MARK 79
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=40.4
OD=48.0
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
41331GEAR, REAR DIFFERENTIAL SIDE
sub41331-24031
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
T=2.30,MARK 30
T=2.32,MARK 32
T=2.34,MARK 34
T=2.36,MARK 36
T=2.38,MARK 38
T=2.40,MARK 40
T=2.42,MARK 42
T=2.44,MARK 44
T=2.46,MARK 46
T=2.48,MARK 48
T=2.50,MARK 50
T=2.52,MARK 52
T=2.54,MARK 54
T=2.56,MARK 56
T=2.58,MARK 58
T=2.60,MARK 60
T=2.62,MARK 62
T=2.64,MARK 64
T=2.66,MARK 66
T=2.68,MARK 68
T=2.70,MARK 70
T=2.72,MARK 72
T=2.74,MARK 74
T=2.76,MARK 76
T=2.78,MARK 78
T=2.80,MARK 80
T=2.82,MARK 82
T=2.84,MARK 84
T=2.86,MARK 86
T=1.18,MARK 18
T=1.20,MARK 20
T=1.22,MARK 22
T=1.24,MARK 24
T=1.26,MARK 26
T=1.28,MARK 28
T=1.30,MARK 30
T=1.32,MARK 32
T=1.34,MARK 34
T=1.36,MARK 36
T=1.38,MARK 38
T=1.40,MARK 40
T=1.42,MARK 42
T=1.44,MARK 44
T=1.46,MARK 46
T=1.48,MARK 48
T=1.50,MARK 50
T=1.52,MARK 52
T=1.54,MARK 54
T=1.56,MARK 56
T=1.58,MARK 58
T=1.60,MARK 60
T=1.62,MARK 62
T=1.64,MARK 64
T=1.66,MARK 66
T=1.68,MARK 68
T=1.70,MARK 70
T=1.72,MARK 72
T=1.74,MARK 74
T=1.76,MARK 76
T=1.78,MARK 78
T=1.80,MARK 80
T=1.82,MARK 82
T=1.84,MARK 84
T=1.86,MARK 86
T=1.88,MARK 88
T=1.90,MARK 90
T=1.92,MARK 92
T=1.08,MARK 08
T=1.10,MARK 10
T=1.12,MARK 12
T=1.14,MARK 14
T=1.16,MARK 16
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.8
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41341PINION, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.6
T=1.7
T=1.8
41651ACUSHION, REAR DIFFERENTIAL MOUNT, NO.2
41651FCUSHION, REAR DIFFERENTIAL MOUMT, NO.3
41653STOPPER, REAR DIFFERENTIAL MOUNT, UPPER
41653AWASHER, PLATE (FOR REAR DIFFERENTIAL MOUNT STOPPER UPPER)
T=1.0
T=2.0
T=1.6
41654STOPPER, REAR DIFFERENTIAL MOUNT, LOWER
41883COVER, REAR DIFFERENTIAL OIL COOLER
9011906373
main90119-06373
9165160614
main91651-60614
48 parts on this diagram · 3 diagrams in section
